Features
UNLIMITED HOT WATER ON DEMAND
Tankless electric water heater provides instant, continuous water flow.

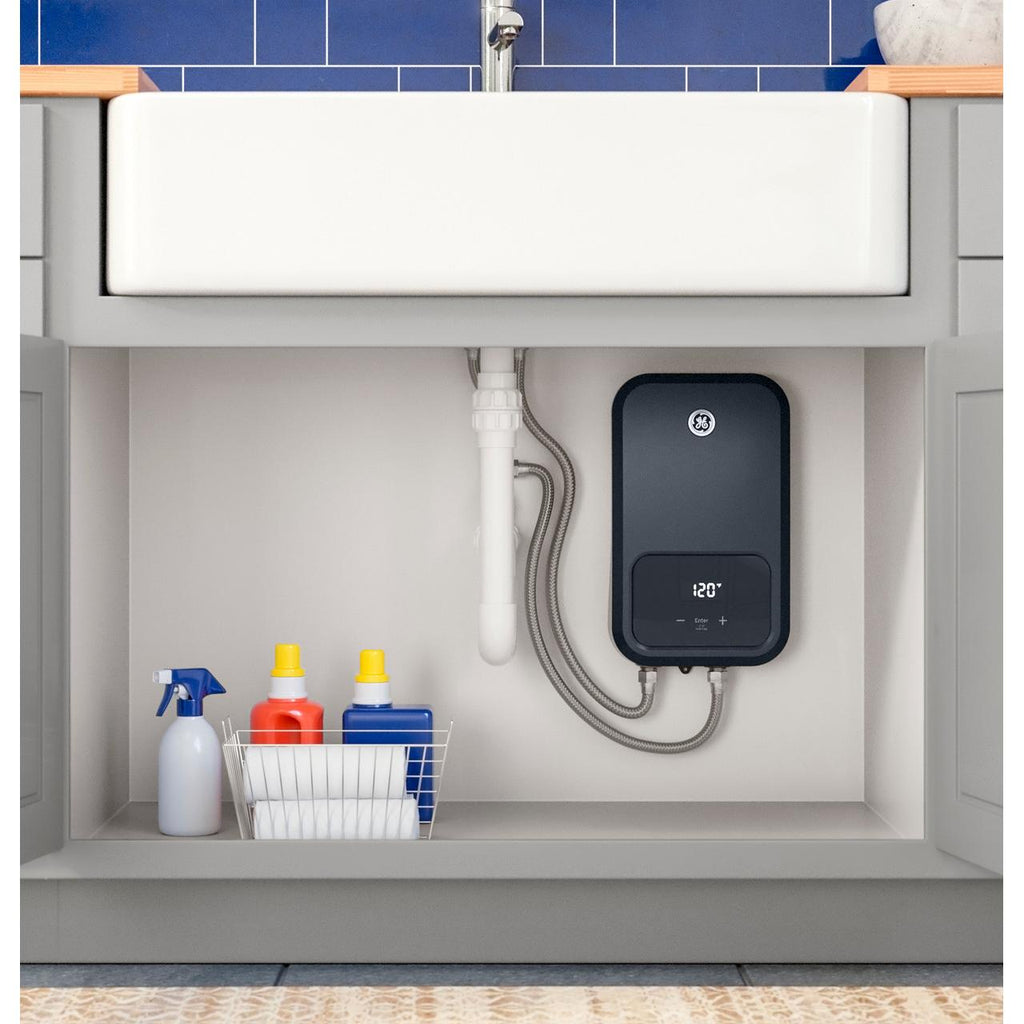

POINT OF USE
Installs on-location for hot water where you need it.

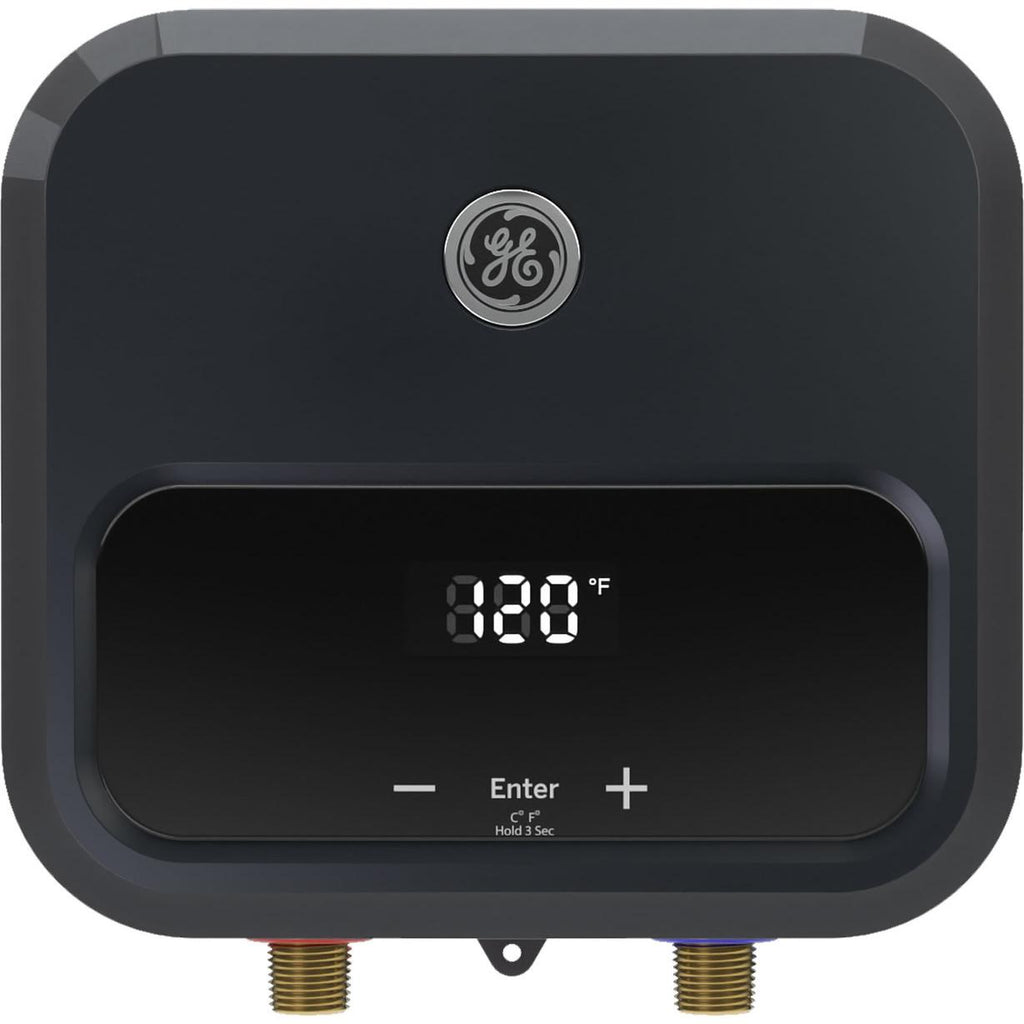

INTUITIVE DESIGN
Adjust temperature and settings with easy-use touch screen

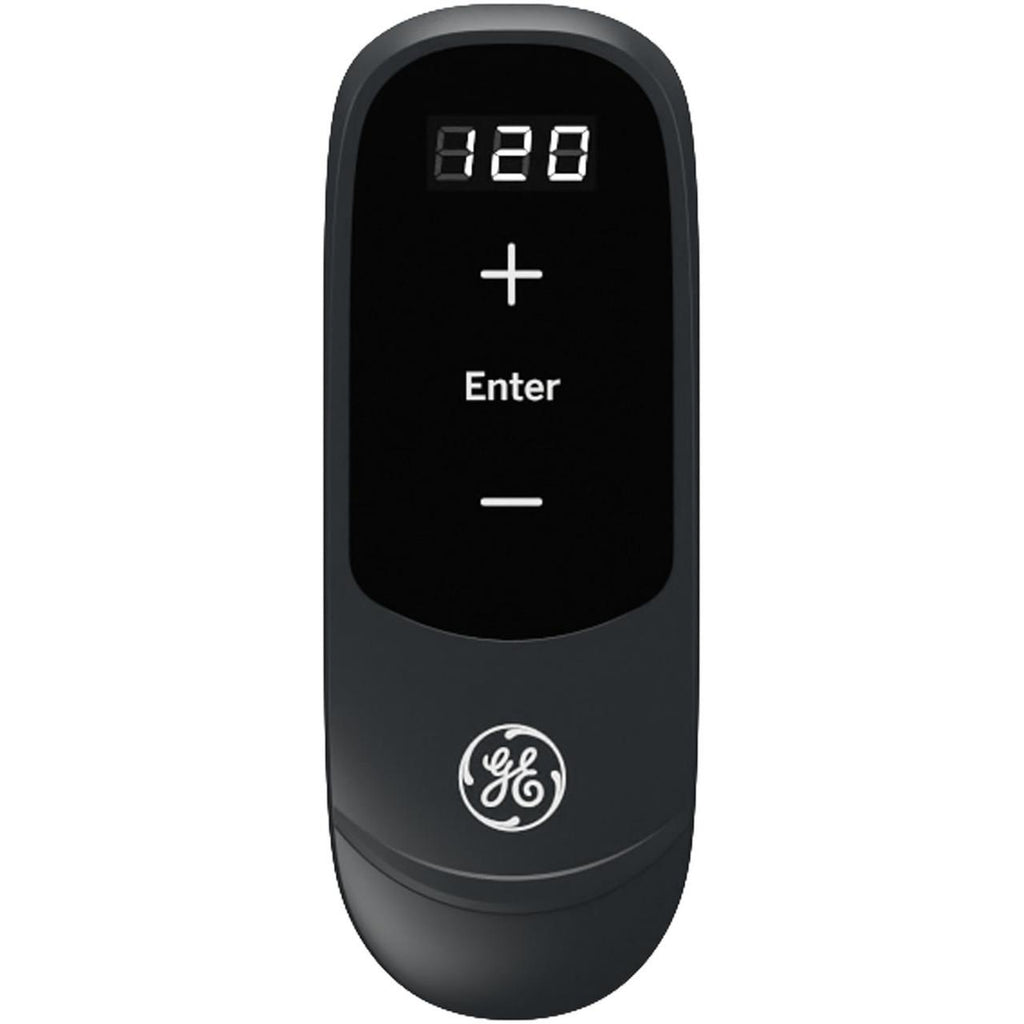

REMOTE CONTROL
Conveniently change temperature settings and control your unit from up to 30' away
SPACE SAVER
Compact design takes up significantly less space than a tank style water heater
SCALE REDUCTION TECHNOLOGY
Extends the life of the unit by shielding heating element from water and scale buildup.
SELF MODULATING TECHNOLOGY
Utilizes inlet and outlet temperature sensors to optimize energy usage and keep water temperature consistent.
Additional Features
FARENHEIT OR CELSIUS
Switch temperature units with a simple tap on an easy-read digital display
Specifications
General
Model Type
Residential
Fuel Type
Electric
Installation
Wall-Mounted
Color
Grey
Connection Size
0.5 in
Certifications and Approvals
Certifications
• AHRI Certified
• ETL Listed
• ADA Compliant
• ETL Listed
• ADA Compliant
Features
Technologies
• Self Modulating Technology
• Scale Reduction Technology
• Scale Reduction Technology
Controls
• Adjust degree Fahrenheit/Celsius
• Adjustable Temperature
• Digital Electronic Control
• Adjustable Temperature
• Digital Electronic Control
Additional Information
• Temperature Setting: 86-125° F Range
• Temperature Setting Factory Default: 105° F
• Flowrate (GPM) @ 37 F inlet: 0.3
• Flowrate (GPM) @ 42 F inlet: 0.3
• Flowrate (GPM) @ 47 F inlet: 0.4
• Flowrate (GPM) @ 52 F inlet: 0.4
• Flowrate (GPM) @ 57 F inlet: 0.5
• Flowrate (GPM) @ 62 F inlet: 0.5
• Flowrate (GPM) @ 67 F inlet: 0.6
• Flowrate (GPM) @ 72 F inlet: 0.7
• Flowrate (GPM) @ 77 F inlet: 0.8
• Activation Flowrate (GPM): Equal or Below 0.3
• Space Saver configuration
• Maximum Outlet Temperature (F): 140
• Temperature adjustment amount (degree): 1
• Uniform Energy Factor (UEF) >0.91
• Water Connection Location: Bottom
• Max. operating pressure (psi): 150
• Min. operating pressure (psi): 25
• 29.2A
• Electrical Circuit Required: 30 Amp
• Power Rating-kW: 3.5
• Voltage (MAX): 120.0 V
• Integrated Safety Devices: Flow sensor, High limit thermostat (on each heating element), Inlet Temperature Sensor, Material Rated for Ignition Containment, Outlet Temperature Sensor
• Temperature Setting Factory Default: 105° F
• Flowrate (GPM) @ 37 F inlet: 0.3
• Flowrate (GPM) @ 42 F inlet: 0.3
• Flowrate (GPM) @ 47 F inlet: 0.4
• Flowrate (GPM) @ 52 F inlet: 0.4
• Flowrate (GPM) @ 57 F inlet: 0.5
• Flowrate (GPM) @ 62 F inlet: 0.5
• Flowrate (GPM) @ 67 F inlet: 0.6
• Flowrate (GPM) @ 72 F inlet: 0.7
• Flowrate (GPM) @ 77 F inlet: 0.8
• Activation Flowrate (GPM): Equal or Below 0.3
• Space Saver configuration
• Maximum Outlet Temperature (F): 140
• Temperature adjustment amount (degree): 1
• Uniform Energy Factor (UEF) >0.91
• Water Connection Location: Bottom
• Max. operating pressure (psi): 150
• Min. operating pressure (psi): 25
• 29.2A
• Electrical Circuit Required: 30 Amp
• Power Rating-kW: 3.5
• Voltage (MAX): 120.0 V
• Integrated Safety Devices: Flow sensor, High limit thermostat (on each heating element), Inlet Temperature Sensor, Material Rated for Ignition Containment, Outlet Temperature Sensor
Accessories
Included
Remote Control
Dimensions
Width
9.9 inch(es) / 25.15 cm
Height
9.8 inch(es) / 24.89 cm
Depth
3.4 inch(es) / 8.64 cm
Weight
4.7 lb(s) / 2.13 kg
Shipping Dimensions
Width
11.81 inch(es) / 30.00 cm
Height
11.02 inch(es) / 27.99 cm
Depth
5.2 inch(es) / 13.21 cm
Weight
5.49 lb(s) / 2.49 kg
Warranty
Warranty
Parts Warranty: 5-year Limited Replacement Warranty
UPC
UPC#
084691856993
