Features
QUIET OPERATION
Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort.

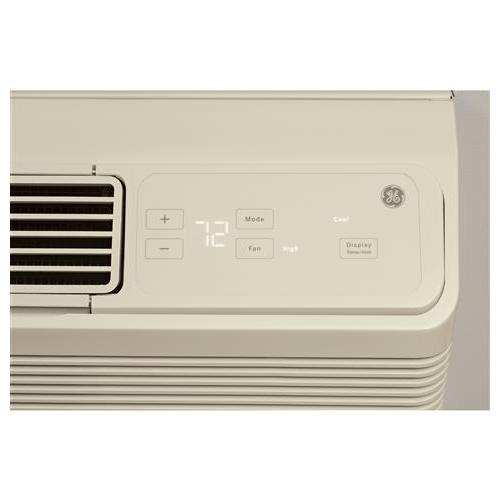

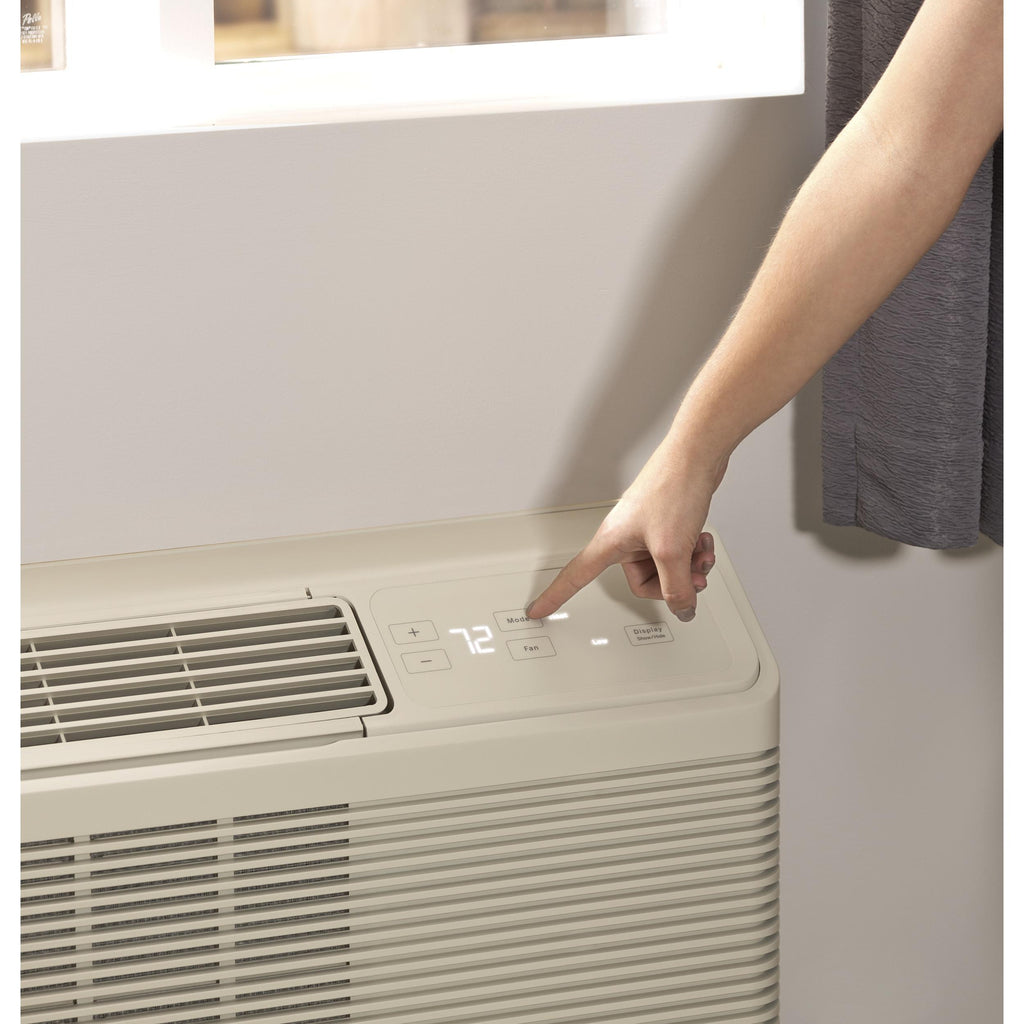

ELECTRONIC TOUCH CONTROLS WITH LED DISPLAY
Electronic touch controls with led display

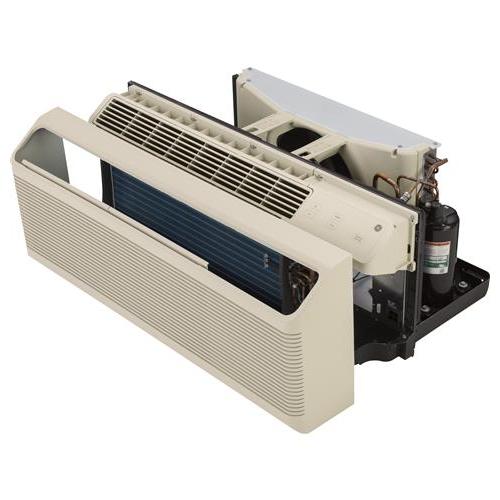

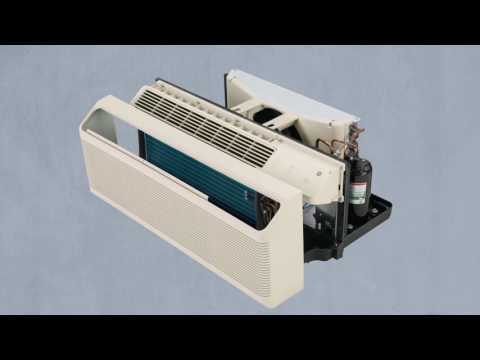

SIMPLIFIED STRUCTURE
Easy to maintain and service
Additional Features
HEAT & FREEZE SENTINELS
Keeps the room from overheating or freezing
Specifications
General
Series Name
Zoneline®
Installation Type
Wall
Type
Cooling and Heating
Heating Power
13400 BTU
Cooling Power
14400 BTU
Features
Controls
Digital
Wi-Fi
No
Remote Control
No
Energy Star Certified
No
Additional Information
• Temperature range: 60 - 85 F
• Cooling EER (BTUH / Watt): 10.6/10.6
• CFM Indoor Fan: 449/290
• Heat pump efficiency: 3.3/3.3 COP
• Dehumidification (pts./hr.): 4.8
• Vent CFM (high fan at zero ESP): 44
• 3-Stage heating design
• 2 Fan motor
• Rotary compressor
• Electronic 7-Step temperature limiting

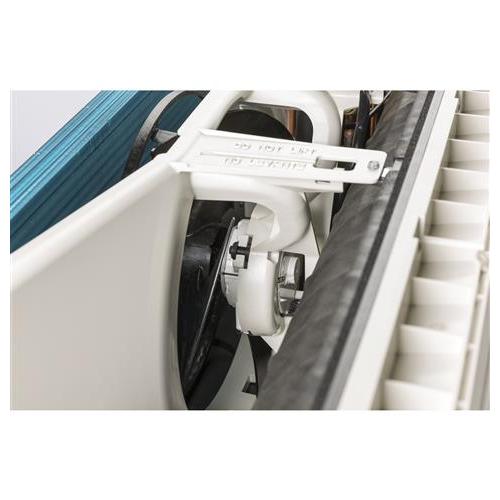

• Concealed manual vent control

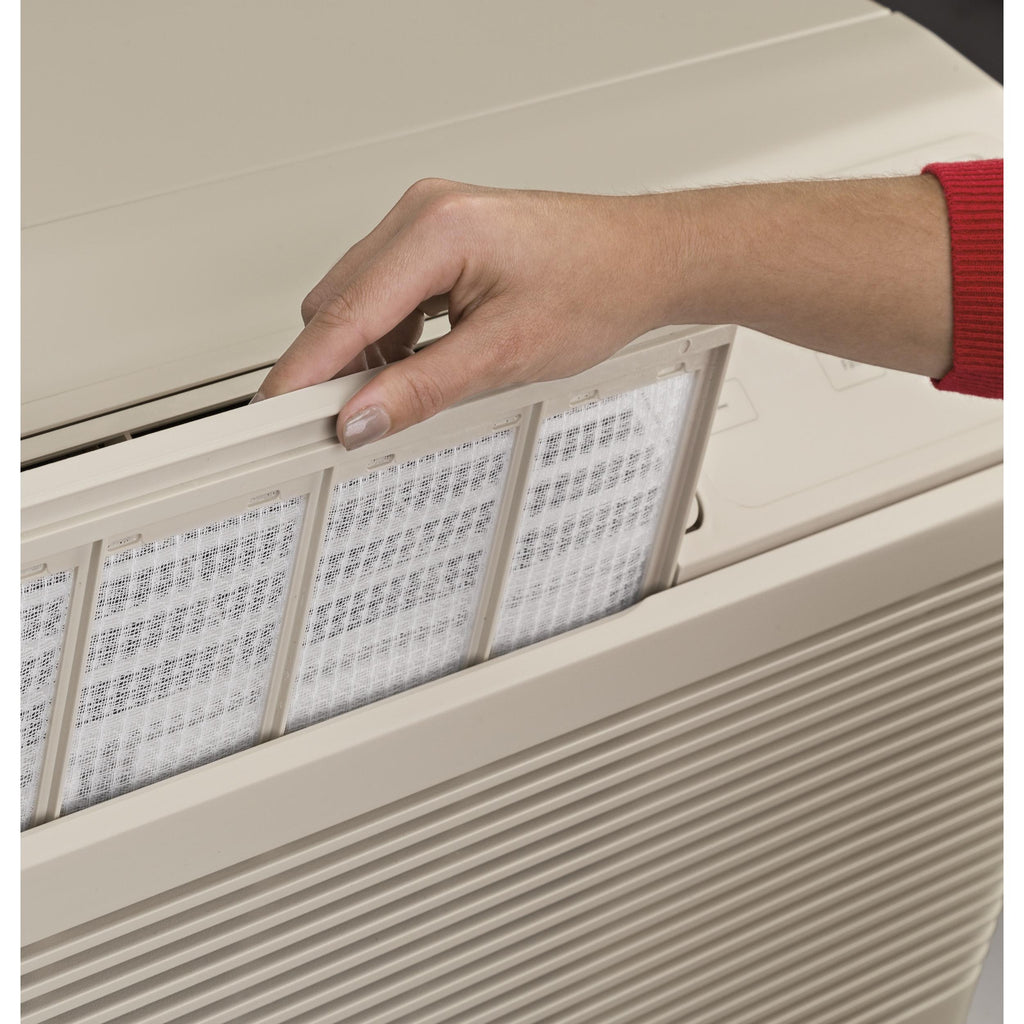

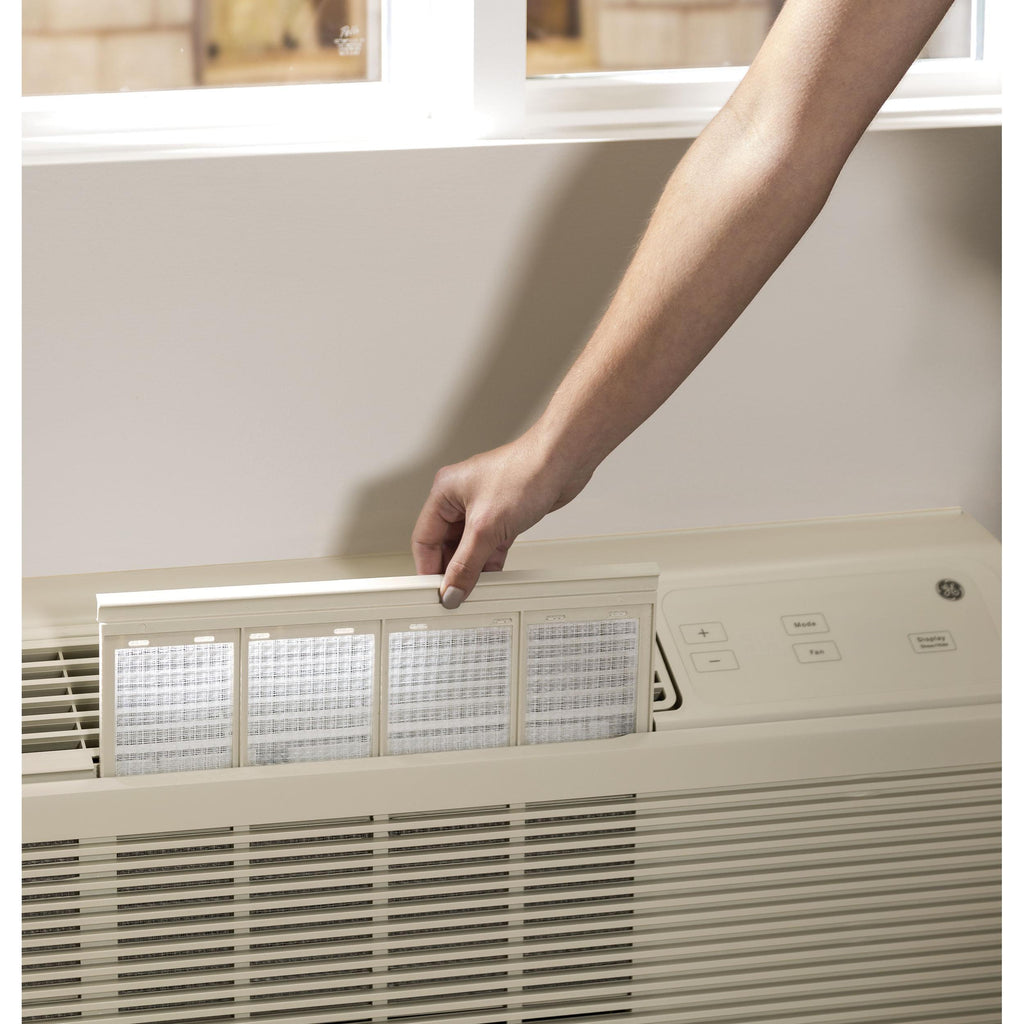

• Vent air filter
• Sleep mode
• Smart Fan cycle control
• Auto power recovery
• Automatic emergency heat
• Automatic indoor frost control
• Central desk control compatibility
• Freeze Sentinel
• Heat pump with resistance heat backup
• Heat pump with supplemental resistance heat
• Heat Sentinel
• LCDI power cord
• Proportional - Integral ID airflow

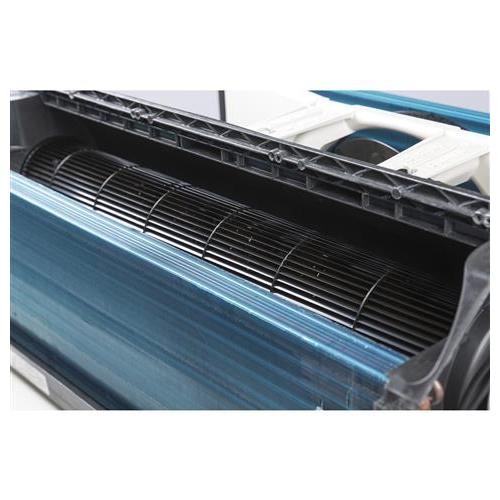

• Random twist/length segment tangential blower
• Remote thermostat compatibility
• Reverse cycle defrost
• Universal heaters
• Weather protected electrical component
• Cooling EER (BTUH / Watt): 10.6/10.6
• CFM Indoor Fan: 449/290
• Heat pump efficiency: 3.3/3.3 COP
• Dehumidification (pts./hr.): 4.8
• Vent CFM (high fan at zero ESP): 44
• 3-Stage heating design
• 2 Fan motor
• Rotary compressor
• Electronic 7-Step temperature limiting
• Concealed manual vent control
• Vent air filter
• Sleep mode
• Smart Fan cycle control
• Auto power recovery
• Automatic emergency heat
• Automatic indoor frost control
• Central desk control compatibility
• Freeze Sentinel
• Heat pump with resistance heat backup
• Heat pump with supplemental resistance heat
• Heat Sentinel
• LCDI power cord
• Proportional - Integral ID airflow
• Random twist/length segment tangential blower
• Remote thermostat compatibility
• Reverse cycle defrost
• Universal heaters
• Weather protected electrical component
Electrical Information
Voltage
230 V
Dimensions
Width
42 inch(es) / 106.68 cm
Height
16 inch(es) / 40.64 cm
Depth
20.81 inch(es) / 52.86 cm
Weight
110.01 lb(s) / 49.9 kg
Shipping Dimensions
Weight
110.01 lb(s) / 49.9 kg
Warranty
Warranty
• Limited 1-year warranty for parts and labor on entire appliance
• Limited 5-year warranty on sealed refrigerating system
• See written warranty for full details
• Limited 5-year warranty on sealed refrigerating system
• See written warranty for full details
UPC
UPC#
084691815624
