Features
CORROSION RESISTANT
Extends life of the unit in sea coast areas/corrosive environments
VERTICAL DESIGN
Optimizes usable floor space
RELIABLE & QUIET
Every component is engineered to provide exceptional performance
Specifications
General
Series Name
Zoneline®
Installation Type
Floor
Type
Cooling and Heating
Heating Power
16,500 BTU
Cooling Power
18,000 BTU
Fan Speed
3 settings
Features
Controls
Digital
Wi-Fi
No
Energy Star Certified
No
Additional Information
• Unit is packaged with the case and the front panel in place (filter not included)

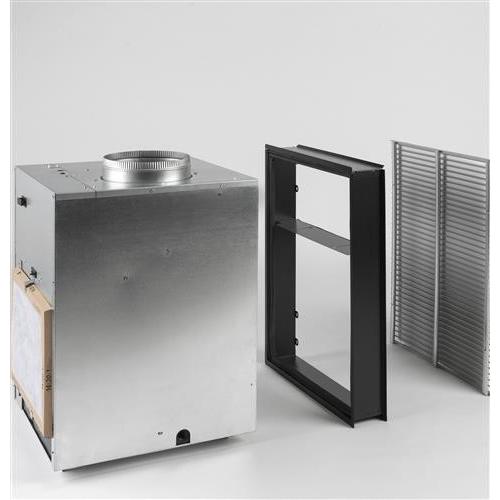

• Installation requires: wall plenum, exterior grille, chassis including case, power connection kit, remote thermostat, filter and a return air grille (sold separately)
• Also requires ductwork and supplies
• Cooling EER (BTUH / Watt): 10.0
• CFM Indoor Fan: 400/450
• Heat pump efficiency: 3.0 COP
• Min. Circuit Amps: 15
• Corrosion treated
• Central Desk Control Compatibility
• Automatic indoor frost control
• Smart Fan cycle control
• Auto power recovery
• Automatic emergency heat
• Electric resistance heat lockout
• Heat pump defrost system
• Heat pump with resistance heat backup and supplemental resistance heat
• Quick heat recovery
• DC indoor and outdoor motors
• Solid state thermostat
• Weather protected electrical components
• Installation requires: wall plenum, exterior grille, chassis including case, power connection kit, remote thermostat, filter and a return air grille (sold separately)
• Also requires ductwork and supplies
• Cooling EER (BTUH / Watt): 10.0
• CFM Indoor Fan: 400/450
• Heat pump efficiency: 3.0 COP
• Min. Circuit Amps: 15
• Corrosion treated
• Central Desk Control Compatibility
• Automatic indoor frost control
• Smart Fan cycle control
• Auto power recovery
• Automatic emergency heat
• Electric resistance heat lockout
• Heat pump defrost system
• Heat pump with resistance heat backup and supplemental resistance heat
• Quick heat recovery
• DC indoor and outdoor motors
• Solid state thermostat
• Weather protected electrical components
Electrical Information
Voltage
265 V
Dimensions
Width
23.13 inch(es) / 58.74 cm
Height
32.25 inch(es) / 81.92 cm
Depth
23.13 inch(es) / 58.74 cm
Weight
167.99 lb(s) / 76.2 kg
Shipping Dimensions
Weight
170 lb(s) / 77.11 kg
Warranty
Warranty
• Limited 1-year warranty for parts and labor on entire appliance
• Limited 5-year warranty on sealed refrigerating system
• See written warranty for full details
• Limited 5-year warranty on sealed refrigerating system
• See written warranty for full details
