Features
CORROSION RESISTANT
Extends life of the unit in sea coast areas/corrosive environments
VERTICAL DESIGN
Optimizes usable floor space
RELIABLE & QUIET
Every component is engineered to provide exceptional performance
Specifications
General
Series Name
Zoneline®
Installation Type
Floor
Type
Cooling and Heating
Heating Power
11,100 BTU
Cooling Power
12,200 BTU
Fan Speed
3 settings
Features
Controls
Digital
Wi-Fi
No
Energy Star Certified
No
Additional Information
• Unit is packaged with the case and the front panel in place (filter not included)

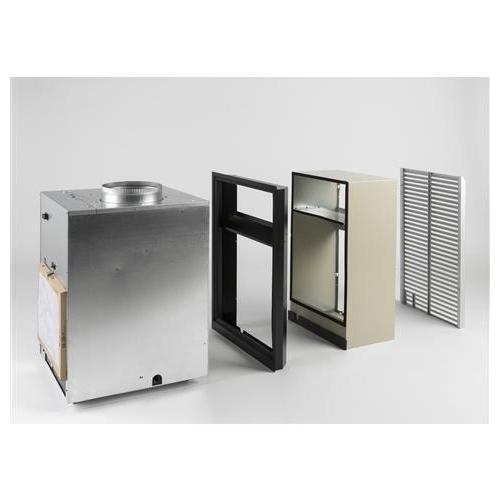

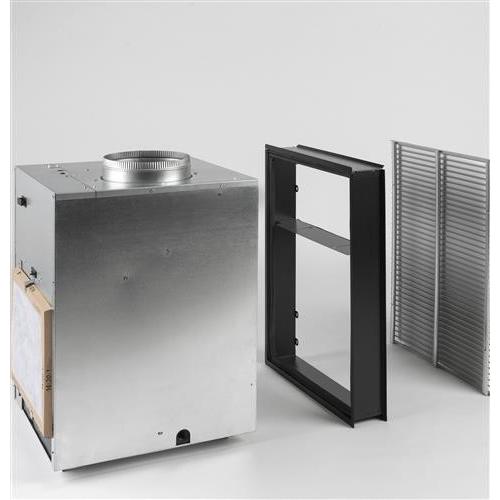

• Installation requires: wall plenum, exterior grille, chassis including case, power connection kit, remote thermostat, filter and a return air grille (sold separately)
• Also requires ductwork and supplies
• Cooling EER (BTUH / Watt): 10.0
• CFM Indoor Fan: 420/450
• Heat pump efficiency: 3.0 COP
• Dehumidification (pts./hr.): 2.8
• Min. Circuit Amps: 20
• Corrosion treated
• Central Desk Control Compatibility
• Automatic indoor frost control
• Smart Fan cycle control
• Auto power recovery
• Automatic emergency heat
• Electric resistance heat lockout
• Heat pump defrost system
• Heat pump with resistance heat backup and supplemental resistance heat
• Quick heat recovery
• DC indoor and outdoor motors
• Solid state thermostat
• Weather protected electrical components
• Installation requires: wall plenum, exterior grille, chassis including case, power connection kit, remote thermostat, filter and a return air grille (sold separately)
• Also requires ductwork and supplies
• Cooling EER (BTUH / Watt): 10.0
• CFM Indoor Fan: 420/450
• Heat pump efficiency: 3.0 COP
• Dehumidification (pts./hr.): 2.8
• Min. Circuit Amps: 20
• Corrosion treated
• Central Desk Control Compatibility
• Automatic indoor frost control
• Smart Fan cycle control
• Auto power recovery
• Automatic emergency heat
• Electric resistance heat lockout
• Heat pump defrost system
• Heat pump with resistance heat backup and supplemental resistance heat
• Quick heat recovery
• DC indoor and outdoor motors
• Solid state thermostat
• Weather protected electrical components
Electrical Information
Voltage
230/208 V
Dimensions
Width
23.13 inch(es) / 58.74 cm
Height
32.25 inch(es) / 81.92 cm
Depth
23.13 inch(es) / 58.74 cm
Weight
141.01 lb(s) / 63.96 kg
Shipping Dimensions
Weight
152.01 lb(s) / 68.95 kg
Warranty
Warranty
• Limited 1-year warranty for parts and labor on entire appliance
• Limited 5-year warranty on sealed refrigerating system
• See written warranty for full details
• Limited 5-year warranty on sealed refrigerating system
• See written warranty for full details
