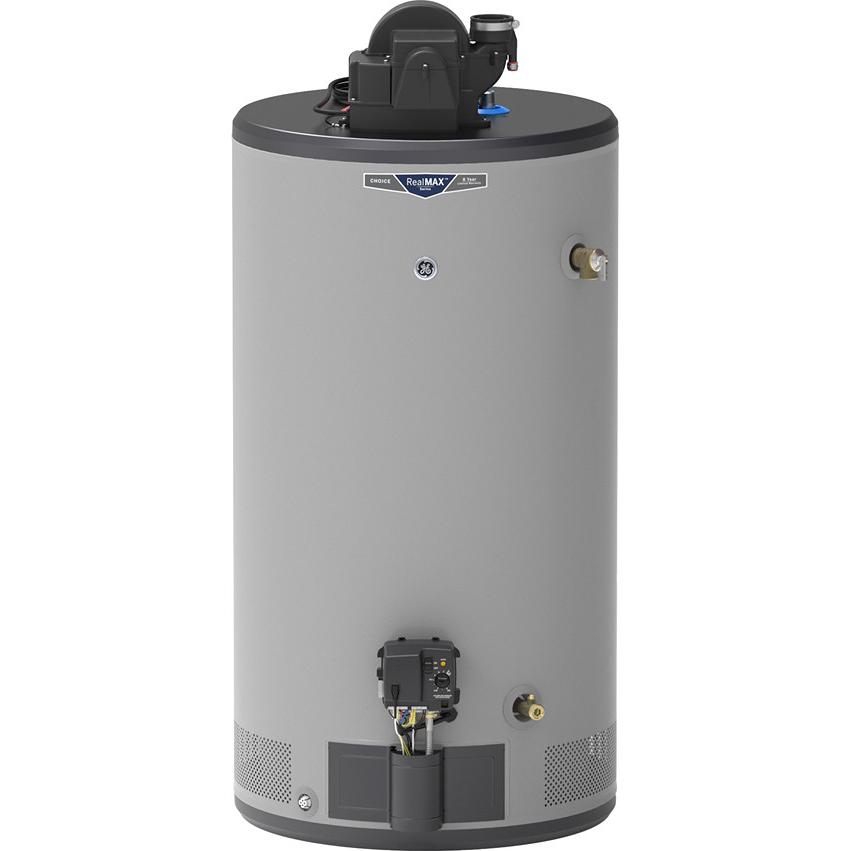

Features
POWER VENT
Get easy, anywhere venting. Gas power vent water heaters offer flexible venting options with lengths up to 150 feet and either vertical or horizontal termination.
BRASS DRAIN VALVE
Rust-proof construction can be counted on to provide long-lasting service.
SMARTSHIELD ™ SAFETY SYSTEM
Monitors the surrounding air and automatically shuts off the unit if abnormal temperatures are detected.
MADE IN AMERICA
Get the added confidence of an American-made water heater.
HOUSEHOLD SIZE
Provide hot water for the whole family of 2 to 4 persons
MAXIMUM PERFORMANCE
Live comfortably with this best-in-class gas water heater with a first-hour delivery of 72 gallons of hot water usage. (40-gallon model as measured through DOE first-hour rating.)
SELF-DIAGNOSTIC
Monitors and reports on gas system status via LED status indicator.
Specifications
General
Type
Short
Model Type
Residential
Fuel Type
Natural Gas
Installation
Floorstanding
Color
Grey
Unit Capacity
42 Imperial Gallons
Connection Size
.75 in
Features
Controls
Controls: LED Indicator
Additional Information
• Power Vent
• Household Size
• Real Capacity
• Maximum Performance
• Altitude Rating: 10,100 ft
• Anode Rod: Magnesium
• Bin Testing: High
• Drain Valve Type: Brass
• Family Size: 3-5 or more People
• FVIR Safety System: Prevents accidental ignition of flammable vapors
• Gas Valve: Self Powered
• Overheat Protection: Dry Burning Protection
• Pilot Light Window / Button
• Product Type: Power Vent Gas
• Temp & Pressure Relief Valve
• Temperature Setting: 45-160° F Range
• UEF: 0.61
• Water Connection Location: Top
• Burner BTU Size (k): 40
• First Hour Delivery GPH: 73 gal/h
• Household Size
• Real Capacity
• Maximum Performance
• Altitude Rating: 10,100 ft
• Anode Rod: Magnesium
• Bin Testing: High
• Drain Valve Type: Brass
• Family Size: 3-5 or more People
• FVIR Safety System: Prevents accidental ignition of flammable vapors
• Gas Valve: Self Powered
• Overheat Protection: Dry Burning Protection
• Pilot Light Window / Button
• Product Type: Power Vent Gas
• Temp & Pressure Relief Valve
• Temperature Setting: 45-160° F Range
• UEF: 0.61
• Water Connection Location: Top
• Burner BTU Size (k): 40
• First Hour Delivery GPH: 73 gal/h
Dimensions
Width
25 inch(es) / 63.5 cm
Height
54 inch(es) / 137.16 cm
Depth
25 inch(es) / 63.5 cm
Weight
173 lb(s) / 78.47 kg
Warranty
Warranty
Parts Warranty: Limited 8-year tank and parts
