Features
FLEXIBLE CAPACITY
Choose from three capacity settings to enjoy up to 60% additional hot water when you need it* *vs comparable water heaters without mixing valve at 120°F set and 58°F water temperature.
BUILT-IN WiFi
Easily adjust temperatures, set vacation mode schedules and receive notifications with Built-in WiFi powered by SmartHQ

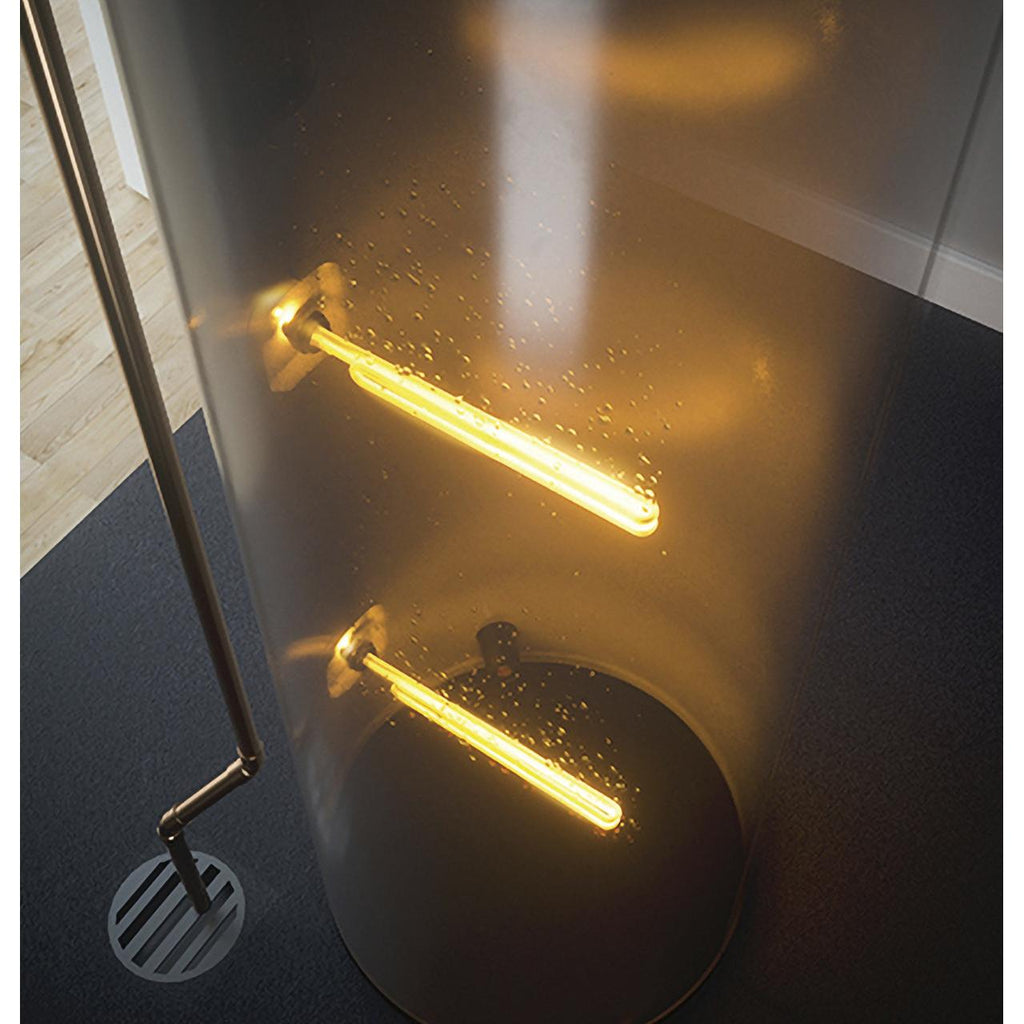

QUICK RECOVERY
Two 5500W heating elements quickly increase water temperature for hot water when you need it.
ANODE SENSING
Notifies you when your anode rod needs replacing to help extend the life of your tank
STAINLESS STEEL HEATING ELEMENTS
Ultra-durable stainless-steel heating elements resist rust and corrosion

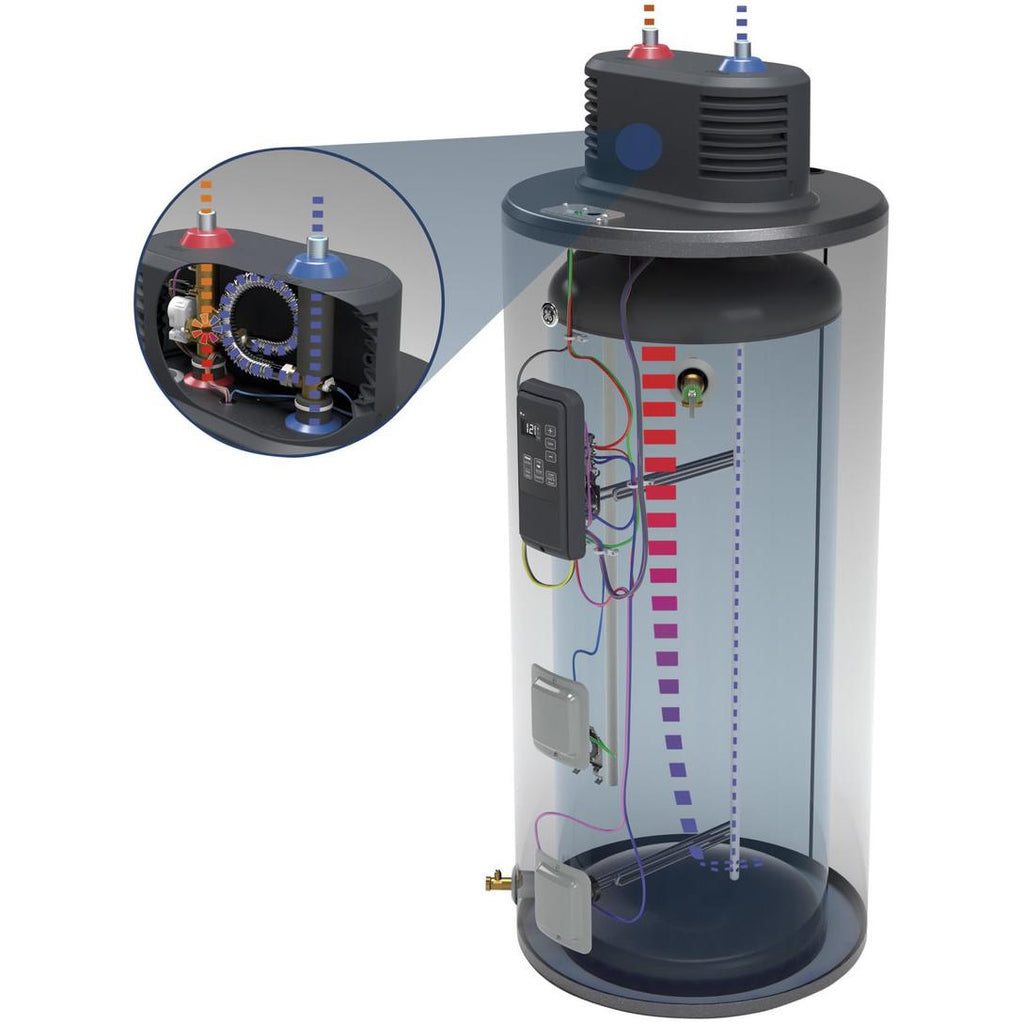

INLET TUBE
Replenishes water from the bottom of the tank to maximize hot water delivery.
BRASS DRAIN VALVE
Rust-proof construction can be counted on to provide long-lasting service.

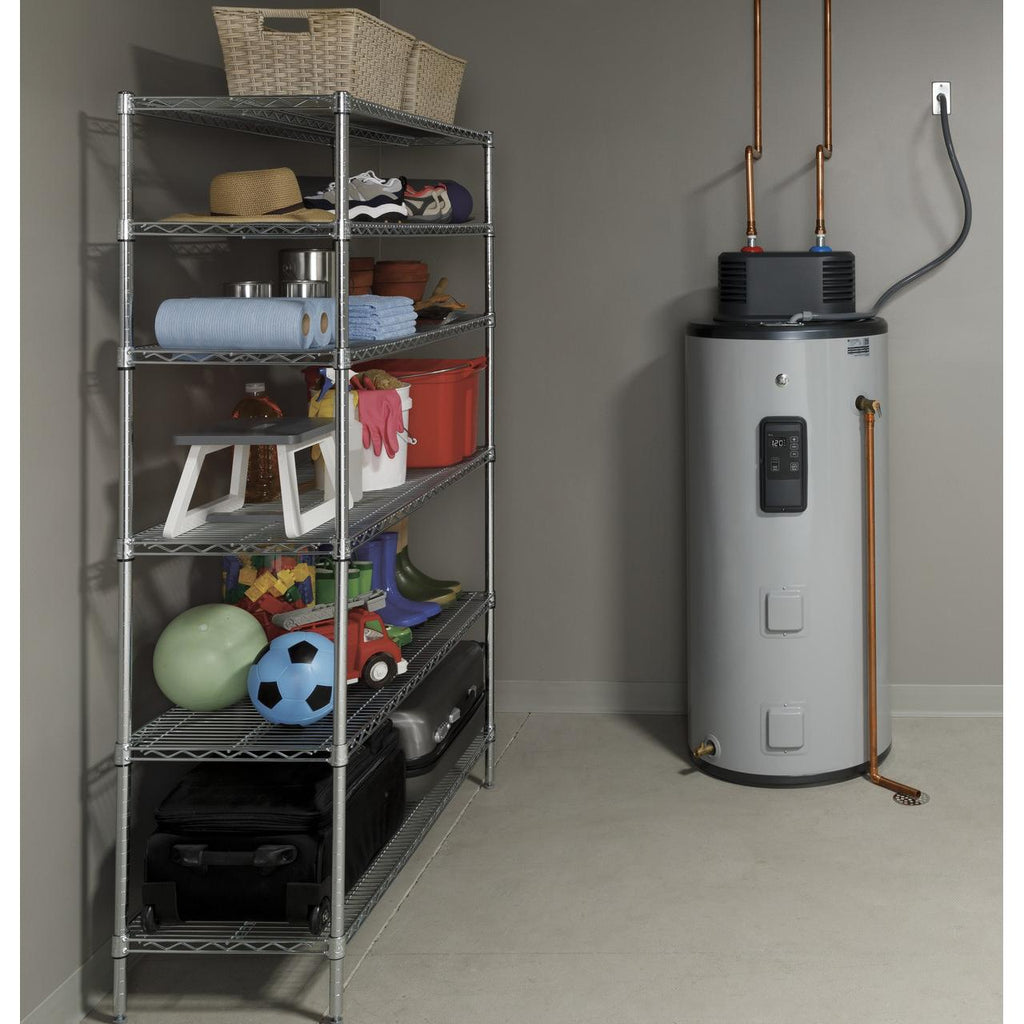

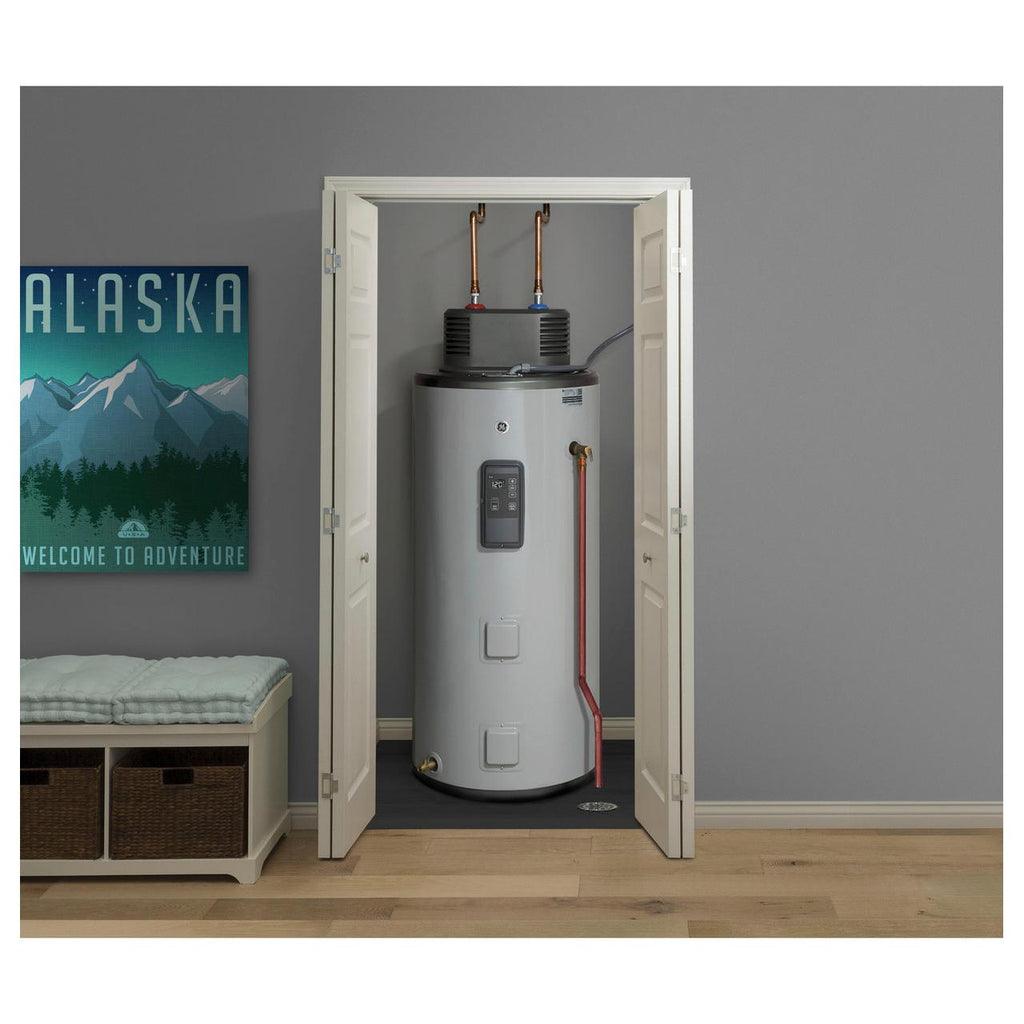

EASY SET UP
Replace your old water heater quickly and easily using standard water and electrical connections.
Specifications
General
Type
Short
Model Type
Residential
Fuel Type
Electric

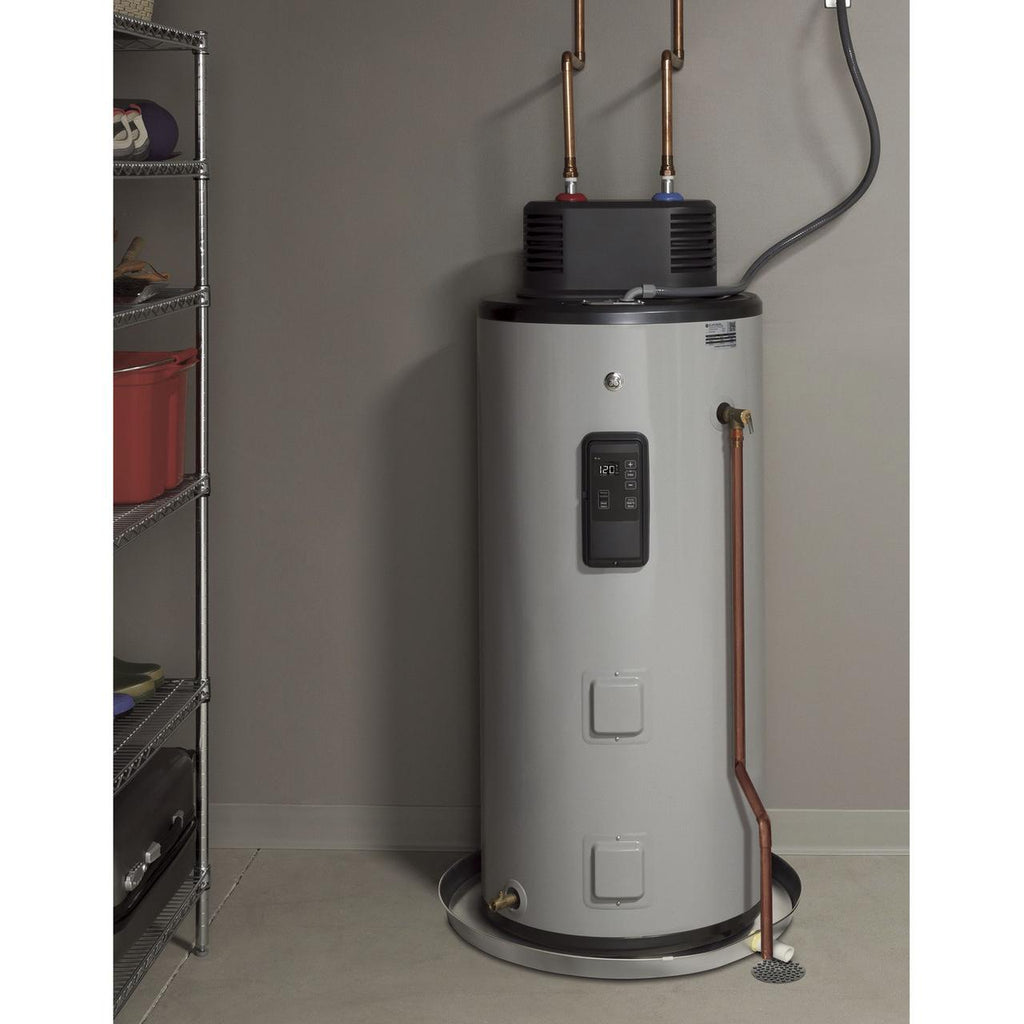

Installation
Floorstanding
Color
Grey
Unit Capacity
50 US Gallons
Energy Factor
0.93
Connection Size
0.75 in
Certifications and Approvals
Certifications
• NSF
• UL
• UL
Features
Protection
Overheat Protection

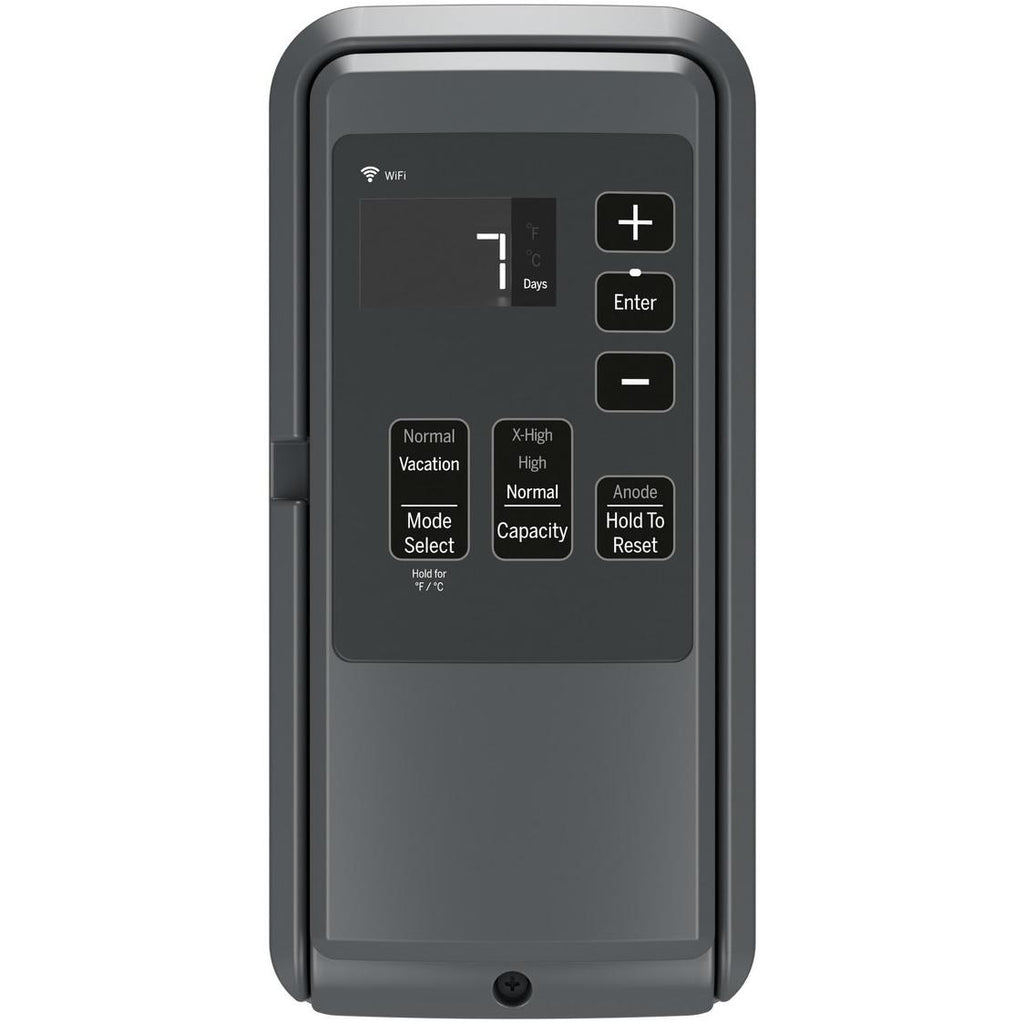

Controls

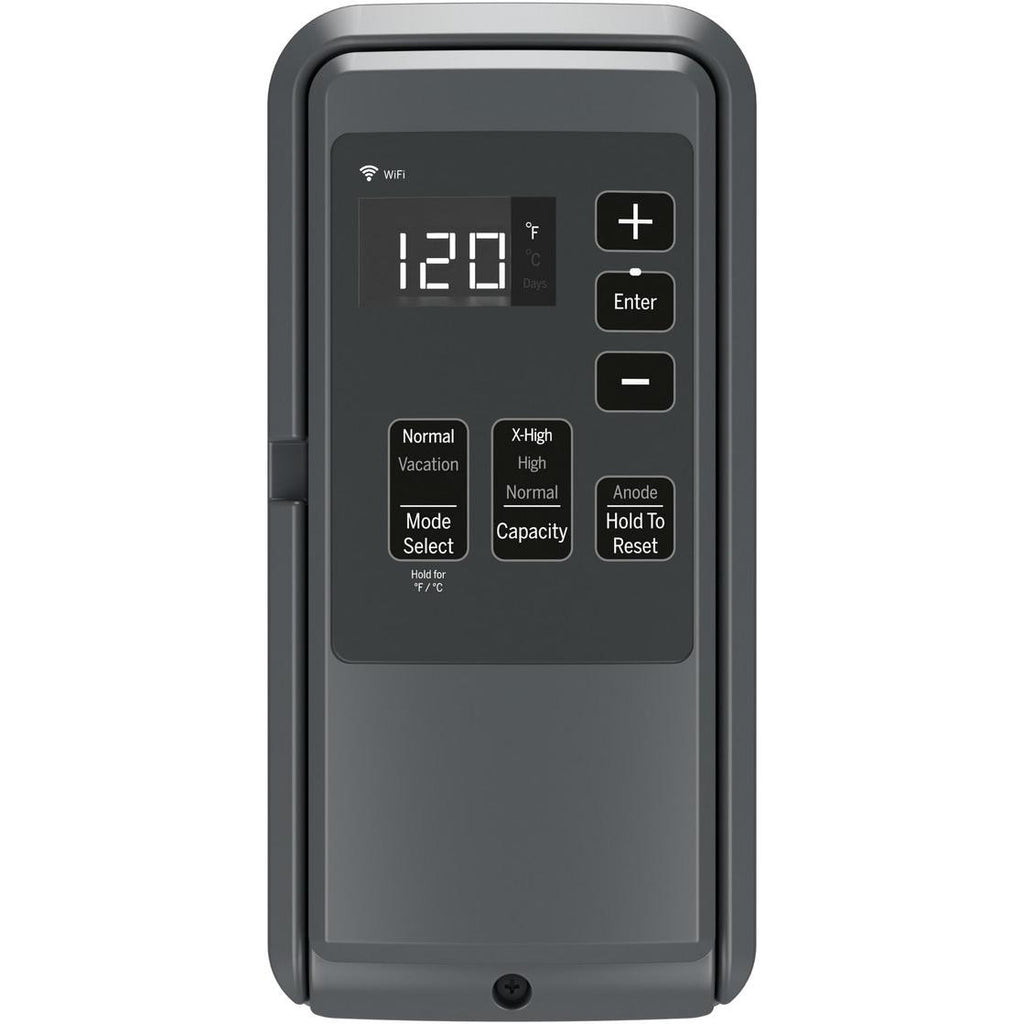

Electronic with Digital Display
Additional Information
• Flexible Capacity
• Built-in WiFi
• Quick Recovery
• Anode Sensing
• Stainless Steel Heating Elements
• Inlet Tube
• Brass Drain Valve
• Effective Capacity at X-High Setting (gallons): 80
• Operating Modes: Normal, Vacation

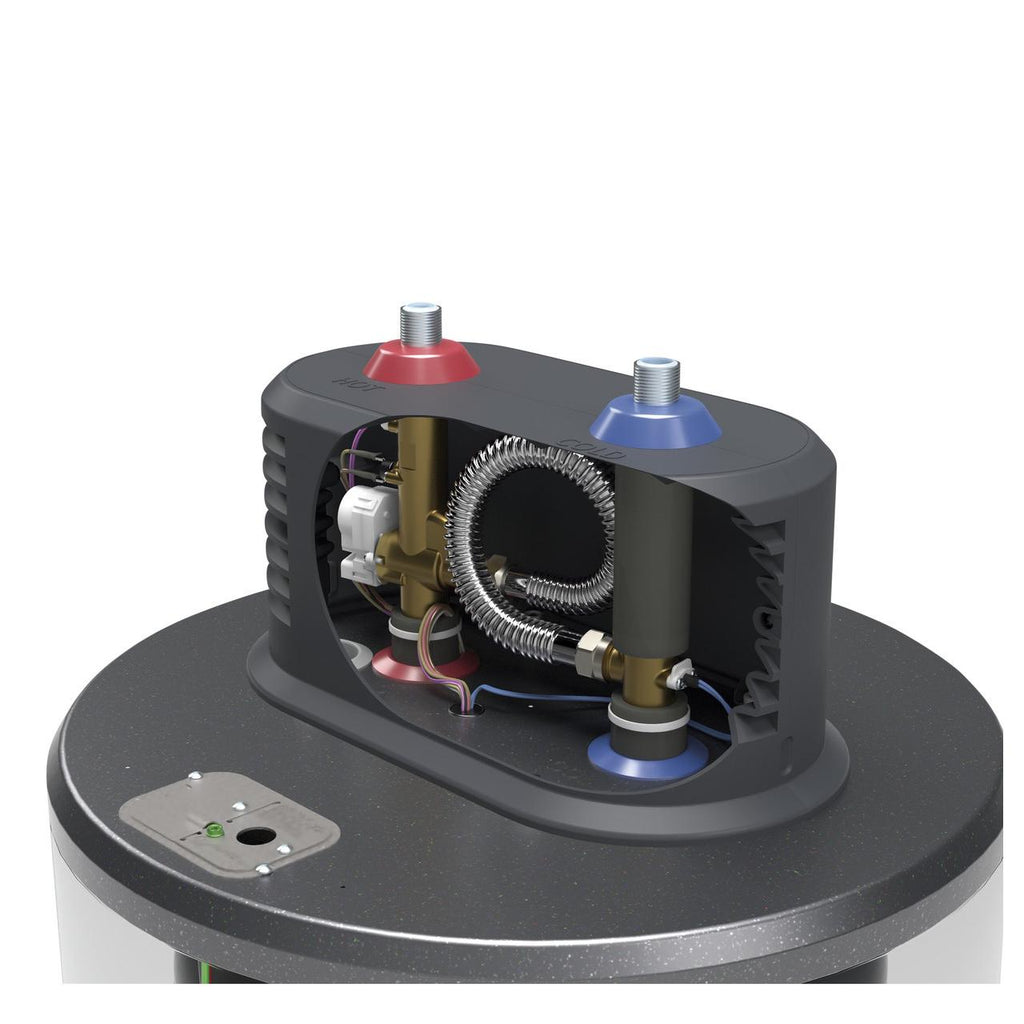

• Electronic, Integrated Mixing Valve
• Temperature Setting: 100-140° F Range
• Temperature Setting Factory Default: 120° F
• Diagnostic Feedback
• Family Size: 3-5 People, 5-6 People

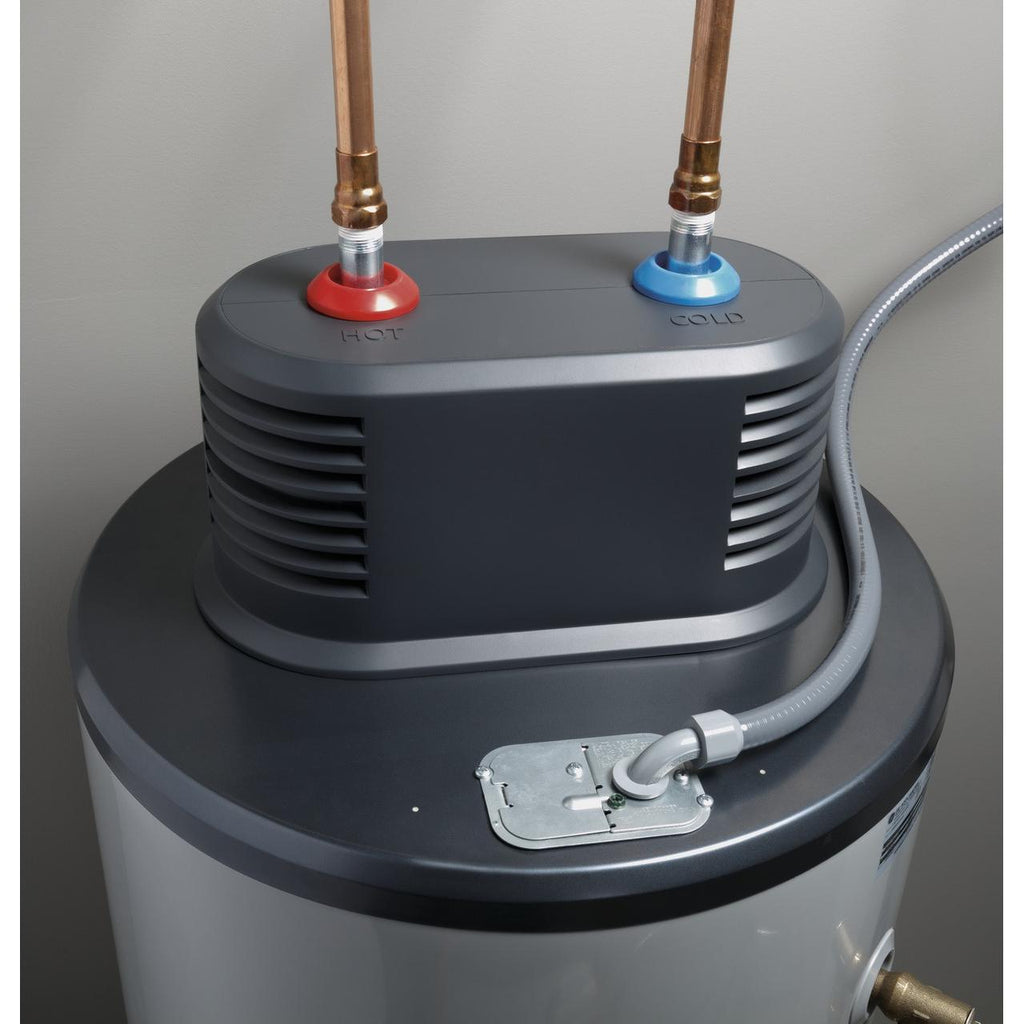

• Water Connection Location: Top
• Electrical Circuit Required: 208V/240V 60 Hz Dedicated 30 Amp Min.
• Electrical Connection: Direct-Wire
• First Hour Rate (FHR): 75 Gallons
• Heating - Electric - Heater Watts: 5500/5500
• Operating Water Pressure: 20-125 PSI
• Voltage (MAX): 240.0 V
• Volts/Hertz: 240V; 60Hz
• Product Height (to top of unit): 59.5 in
• Built-in WiFi
• Quick Recovery
• Anode Sensing
• Stainless Steel Heating Elements
• Inlet Tube
• Brass Drain Valve
• Effective Capacity at X-High Setting (gallons): 80
• Operating Modes: Normal, Vacation
• Electronic, Integrated Mixing Valve
• Temperature Setting: 100-140° F Range
• Temperature Setting Factory Default: 120° F
• Diagnostic Feedback
• Family Size: 3-5 People, 5-6 People
• Water Connection Location: Top
• Electrical Circuit Required: 208V/240V 60 Hz Dedicated 30 Amp Min.
• Electrical Connection: Direct-Wire
• First Hour Rate (FHR): 75 Gallons
• Heating - Electric - Heater Watts: 5500/5500
• Operating Water Pressure: 20-125 PSI
• Voltage (MAX): 240.0 V
• Volts/Hertz: 240V; 60Hz
• Product Height (to top of unit): 59.5 in
Dimensions
Width
24 inch(es) / 60.96 cm
Height
61 inch(es) / 154.94 cm
Depth
24 inch(es) / 60.96 cm
Weight
159.99 lb(s) / 72.57 kg
Shipping Dimensions
Width
25.1 inch(es) / 63.75 cm
Height
62.7 inch(es) / 159.26 cm
Depth
26.3 inch(es) / 66.80 cm
Weight
170.99 lb(s) / 77.56 kg
Warranty
Warranty
• Parts Warranty: 10-year limited
• Labor Warranty: 1-year limited
• Labor Warranty: 1-year limited
UPC
UPC#
084691846529
