Features
QUICK RECOVERY
Two 5500W heating elements quickly increase water temperature for hot water when you need it.

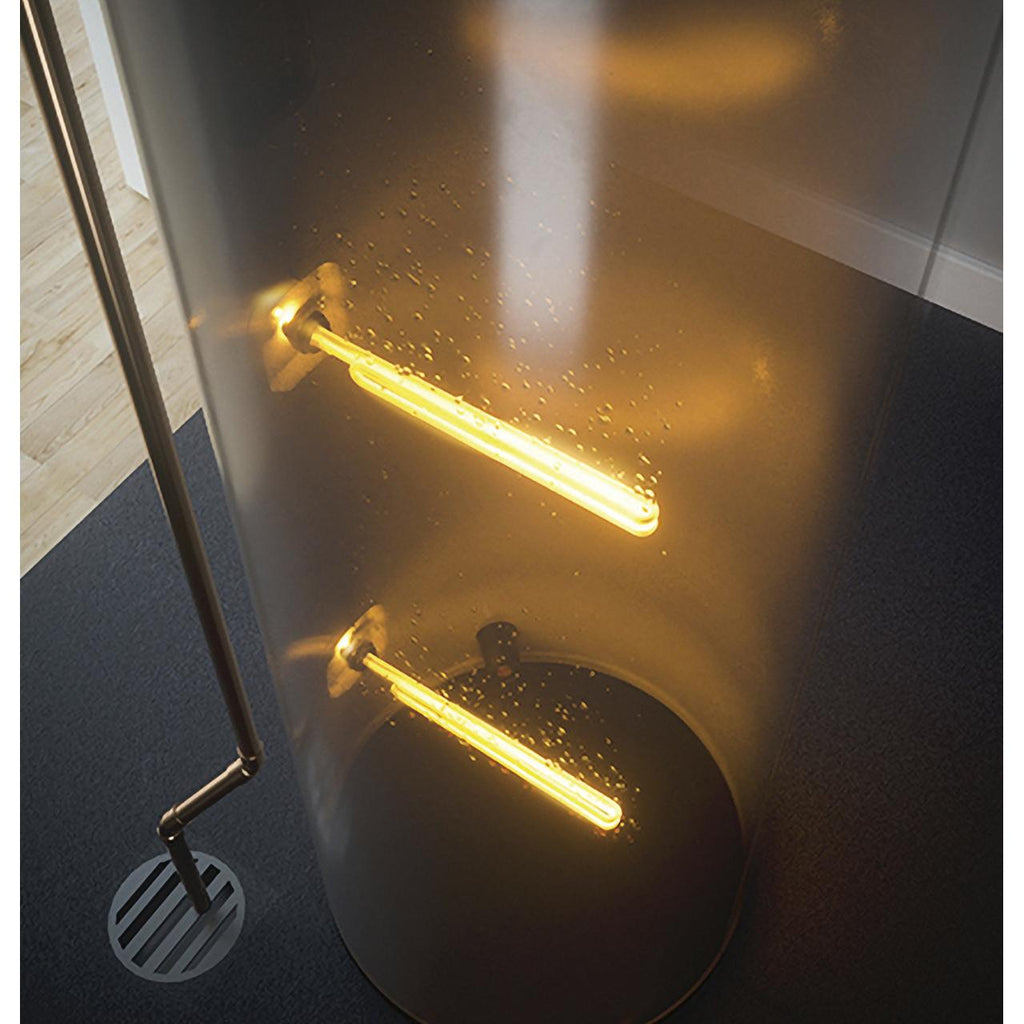

STAINLESS STEEL HEATING ELEMENTS
Ultra-durable stainless-steel heating elements resist rust and corrosion

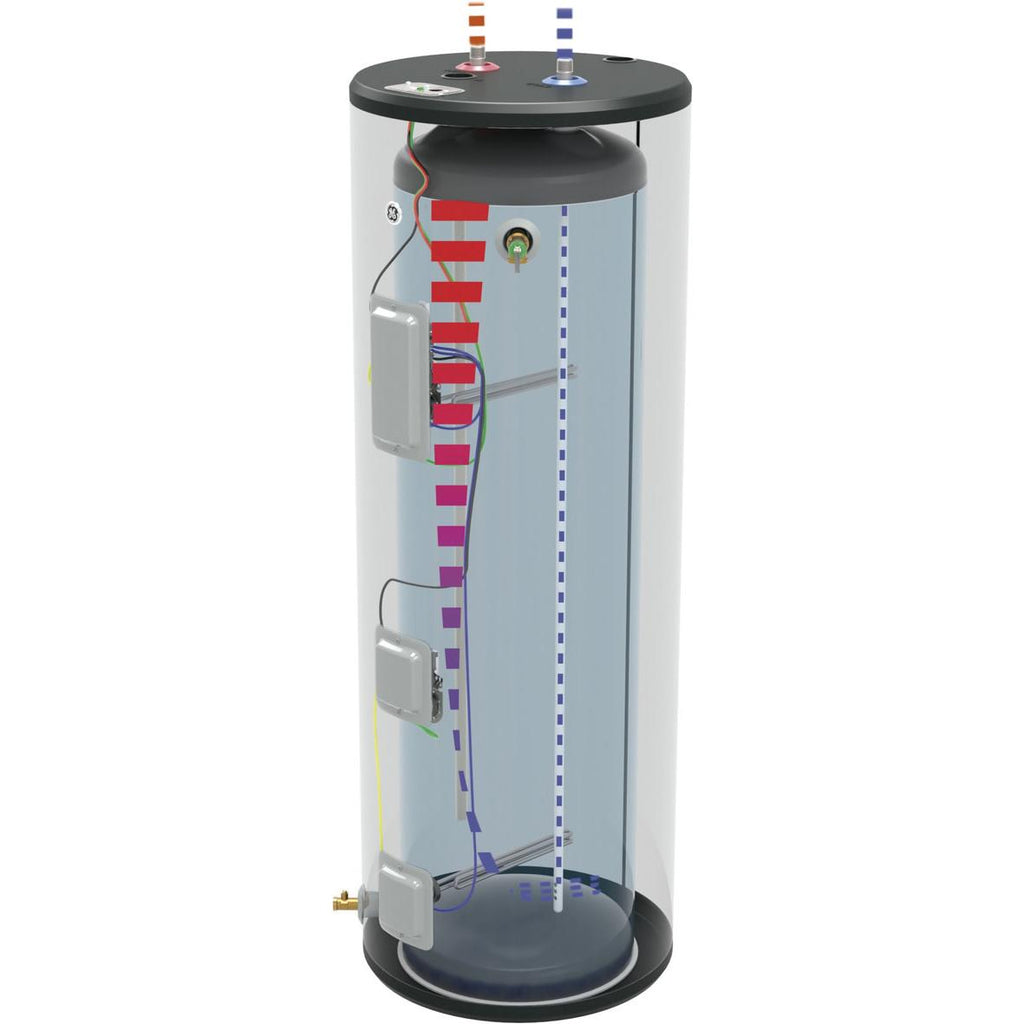

INLET TUBE
Replenishes water from the bottom of the tank to maximize hot water delivery.
BRASS DRAIN VALVE
Rust-proof construction can be counted on to provide long-lasting service.

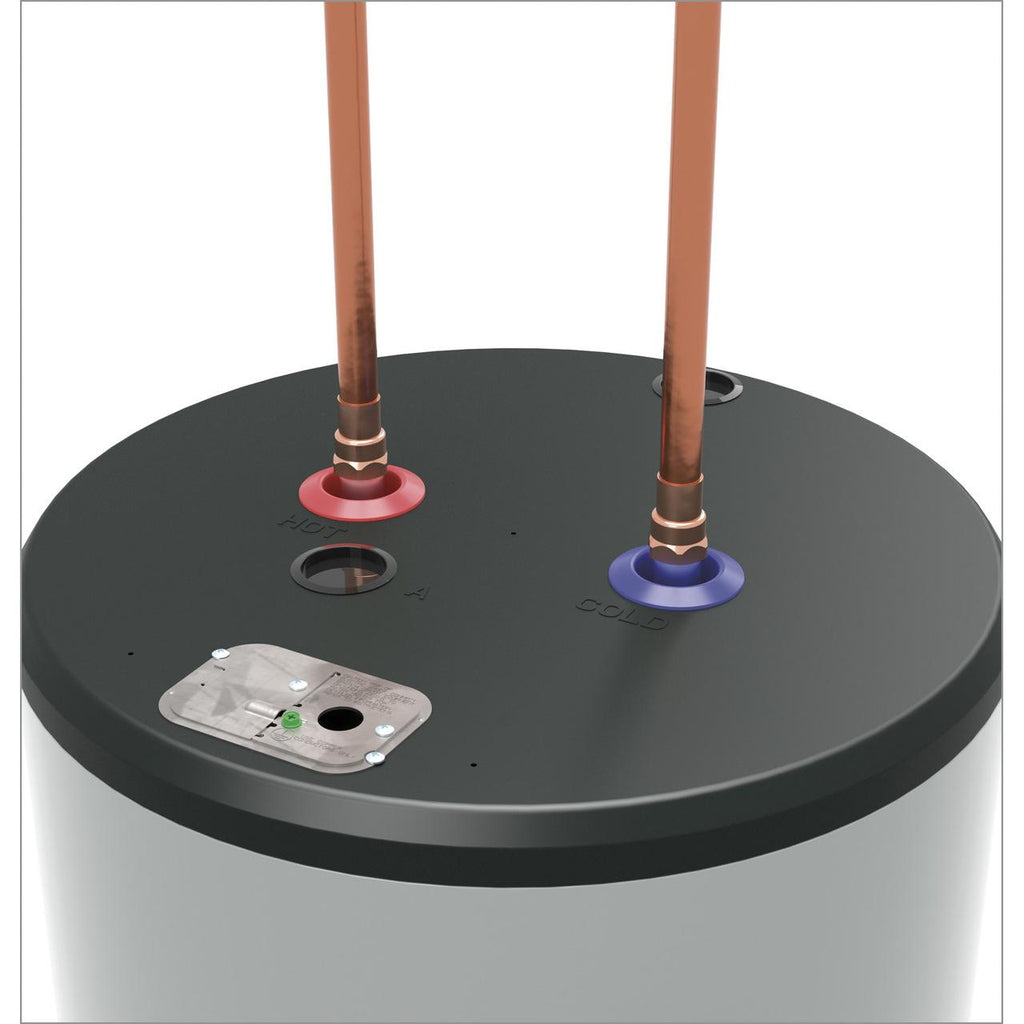

EASY SET UP
Replace your old water heater quickly and easily using standard water and electrical connections.

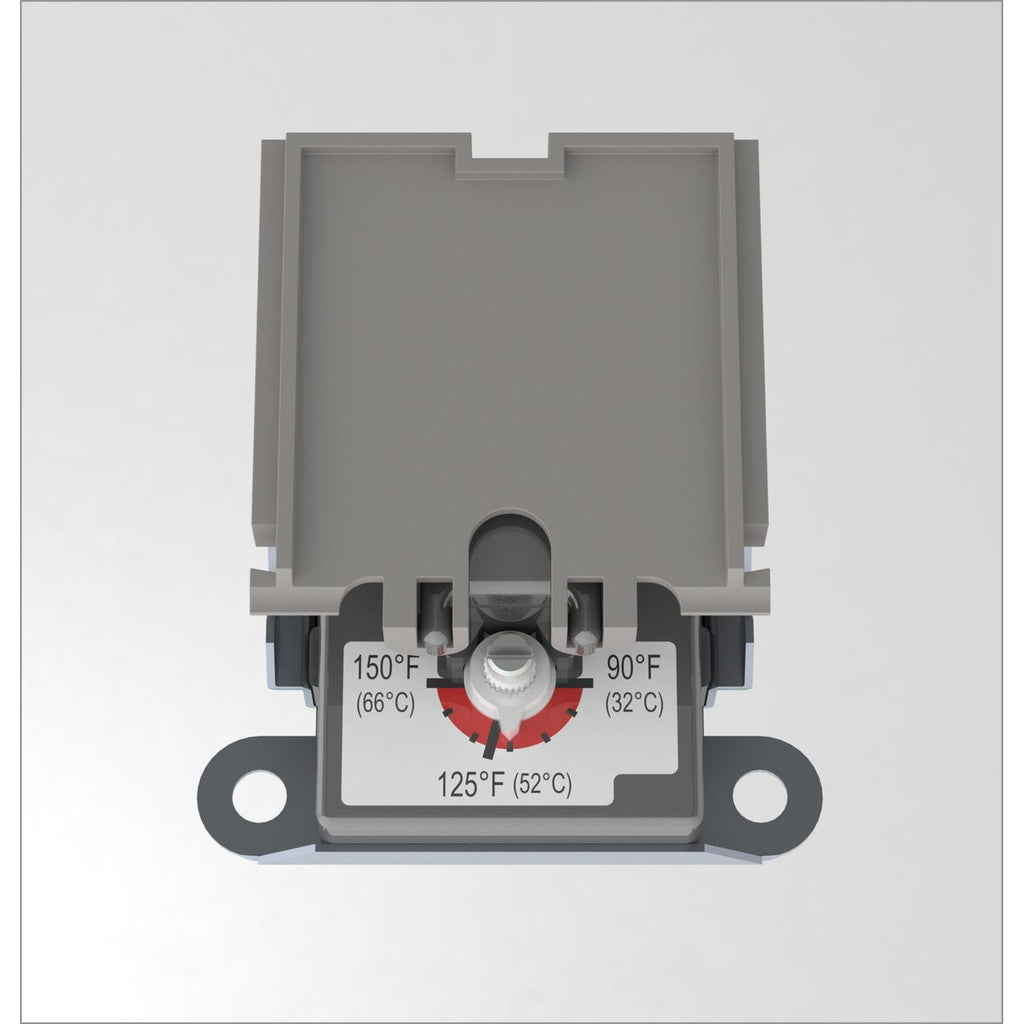

ADJUSTABLE THERMOSTAT
Easily change temperatures to your desired settings.
Specifications
General
Type
Tall
Model Type
Residential
Fuel Type
Electric
Installation
Floorstanding
Color
Grey
Unit Capacity
50 Imperial Gallons
Energy Factor
0.93
Recovery
25.1 GPH
Connection Size
0.75 in
Features
Technologies
• Certified to NSF/ANSI 372
• Listed by Underwriters Laboratories
• Listed by Underwriters Laboratories
Controls
Control Type: Thermostat
Additional Information
• Temperature Setting: 90-150° F Range
• Temperature Setting Factory Default: 120° F
• Heating Element: Stainless steel
• Drain Valve Type: Brass
• Family Size: 3-5 People
• Foam Insulation
• Insulation Thickness: 2.75 in
• Temp & Pressure Relief Valve
• Water Connection Location: Top
• Electrical Circuit Required: 208V/240V 60 Hz Dedicated 30 Amp Min.
• Electrical Connection: Direct-Wire
• First Hour Rate (FHR): 76 Gallons
• Heating - Electric - Heater Watts: 5500/5500
• Operating Water Pressure: 20-125 PSI
• Voltage (MAX): 240.0 V
• Volts/Hertz: 240V; 60Hz
• Product Height (to top of water inlet/outlet connections): 63.875 in
• Temperature Setting Factory Default: 120° F
• Heating Element: Stainless steel
• Drain Valve Type: Brass
• Family Size: 3-5 People
• Foam Insulation
• Insulation Thickness: 2.75 in
• Temp & Pressure Relief Valve
• Water Connection Location: Top
• Electrical Circuit Required: 208V/240V 60 Hz Dedicated 30 Amp Min.
• Electrical Connection: Direct-Wire
• First Hour Rate (FHR): 76 Gallons
• Heating - Electric - Heater Watts: 5500/5500
• Operating Water Pressure: 20-125 PSI
• Voltage (MAX): 240.0 V
• Volts/Hertz: 240V; 60Hz
• Product Height (to top of water inlet/outlet connections): 63.875 in
Dimensions
Width
22 inch(es) / 55.88 cm
Height
63.75 inch(es) / 161.92 cm
Depth
22 inch(es) / 55.88 cm
Weight
142 lb(s) / 64.41 kg
Shipping Dimensions
Width
23.1 inch(es) / 58.67 cm
Height
65.5 inch(es) / 166.37 cm
Depth
24.3 inch(es) / 61.72 cm
Weight
153.99 lb(s) / 69.85 kg
Warranty
Warranty
• Parts Warranty: 10-year limited
• Labor Warranty: 1-year limited
• Labor Warranty: 1-year limited
UPC
UPC#
084691846109
