Features
HOUSEHOLD SIZE
Provide hot water for the whole family of 2 to 4 persons

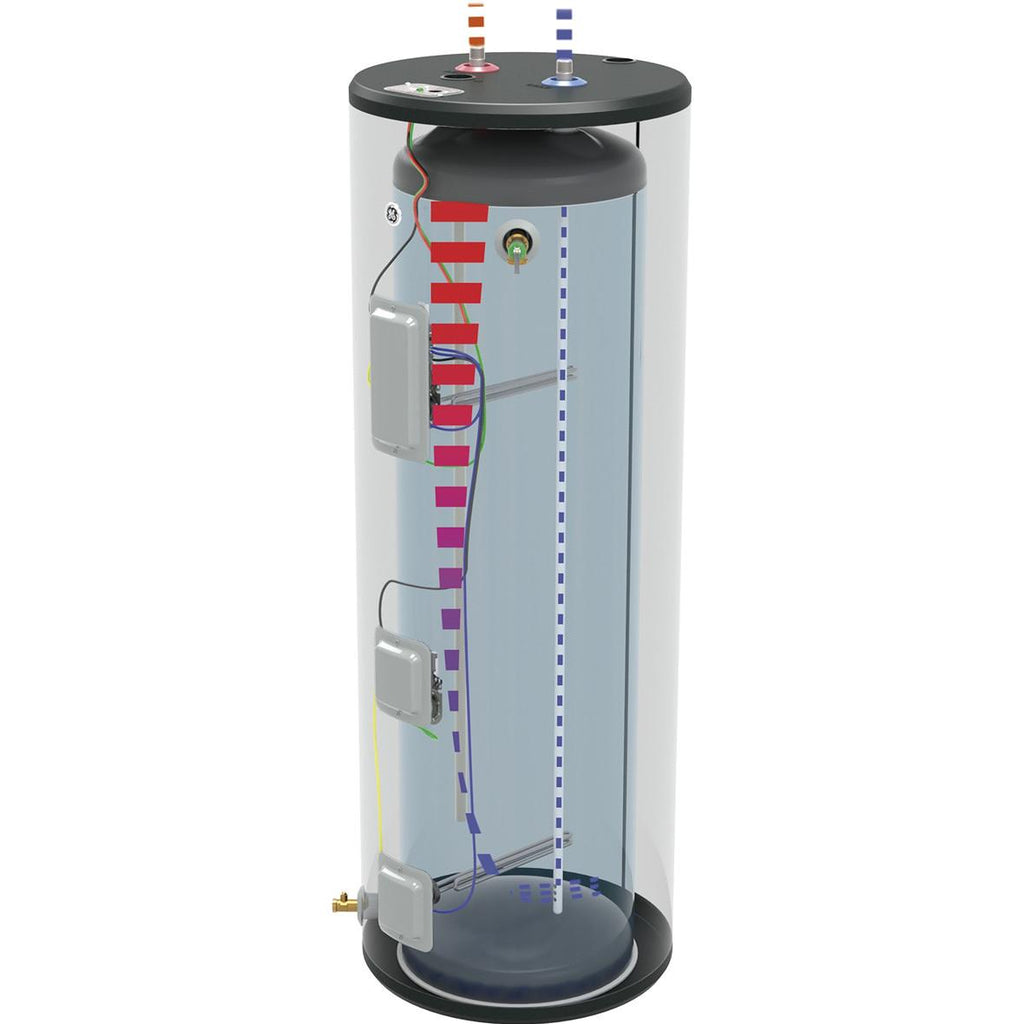

INLET TUBE
Replenishes water from the bottom of the tank to maximize hot water delivery.

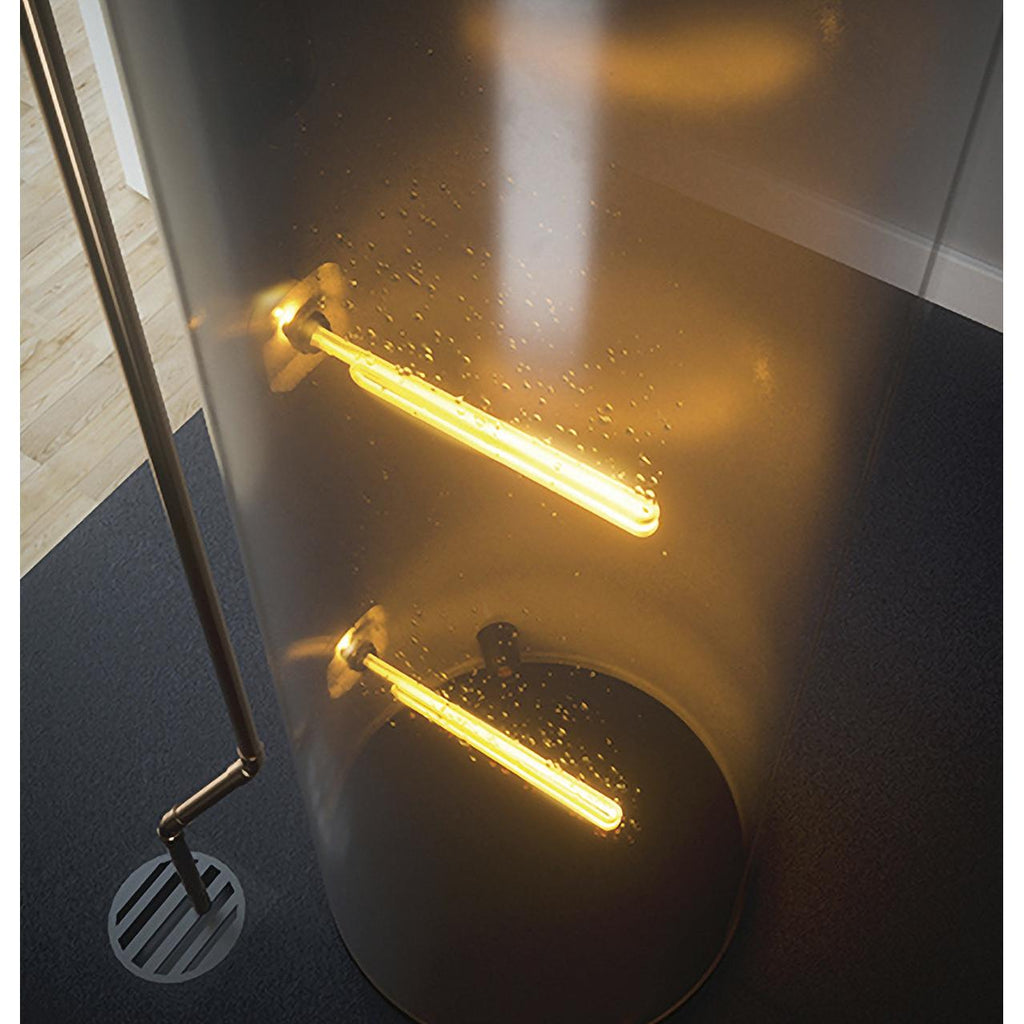

STAINLESS STEEL HEATING ELEMENTS
Ultra-durable stainless-steel heating elements resist rust and corrosion
BRASS DRAIN VALVE
Rust-proof construction can be counted on to provide long-lasting service.
ADJUSTABLE THERMOSTAT
Easily change temperatures to your desired settings.
ANODE ROD
Durable design extends the life of your water heater with long-lasting protection against corrosion.
Specifications
General
Type
Tall
Model Type
Residential
Fuel Type
Electric
Installation
Floorstanding
Color
Grey
Unit Capacity
42 Imperial Gallons
Features
Controls
Thermostat
Additional Information
• Drain Valve Type: Plastic
• Family Size: 3-5 People
• Foam Insulation
• GPH Recovery @ 90 Degrees F: 13.6
• Heating Element: Stainless steel
• Insulation Thickness: 2.75 in
• Litres: 189
• Mobile Home Compatible: No
• Operating Modes: Standard Electric
• Rated Storage Capacity: 50
• Temp & Pressure Relief Valve
• Temperature Setting: 90-150° F Range
• Temperature Setting Factory Default: 120° F

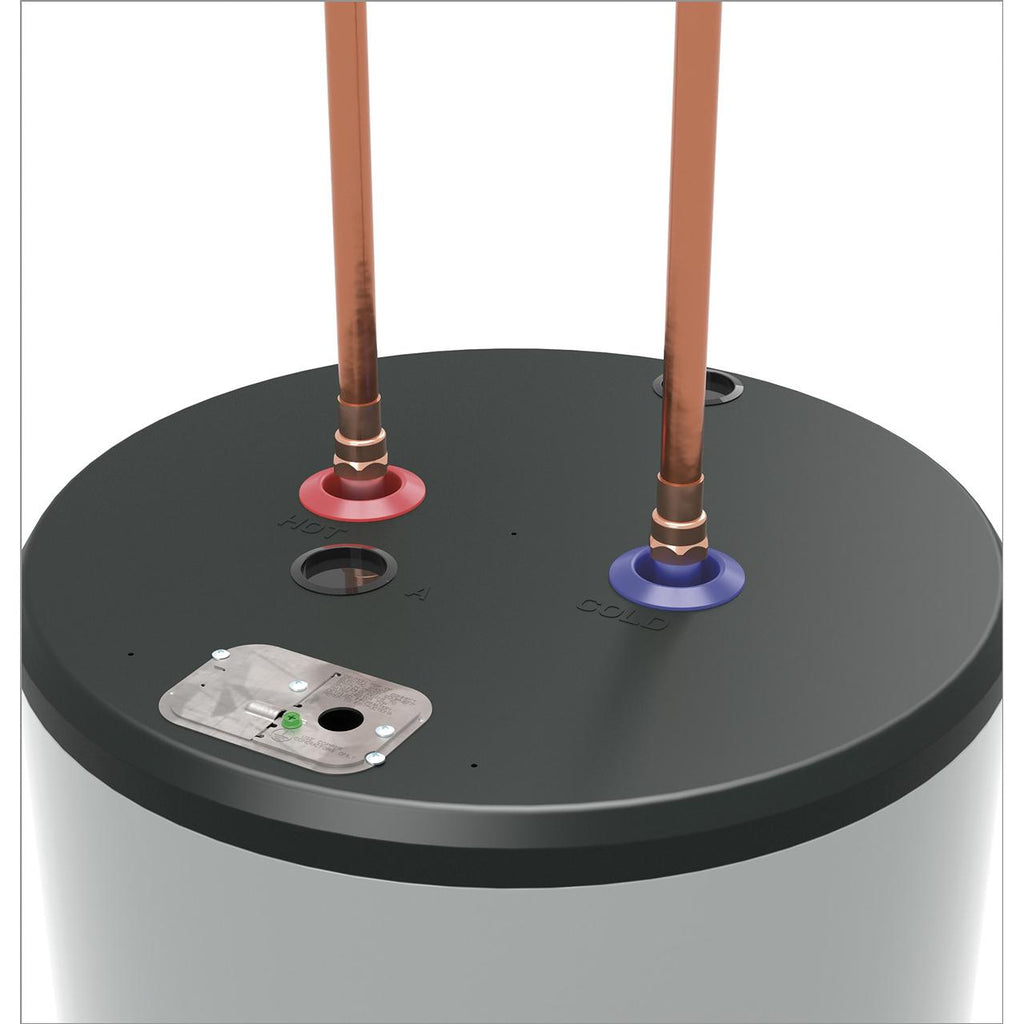

• Water Connection Location: Top
• Electrical Circuit Required: 208V/240V 60 Hz Dedicated 20 Amp Min.
• Electrical Connection: Direct-Wire
• Heating - Electric - Heater Watts: 3000
• Integrated Energy Factor: 0.93
• Operating Water Pressure: 20-125 PSI
• Voltage (MAX): 240 V
• Volts/Hertz: 240V; 60Hz
• Family Size: 3-5 People
• Foam Insulation
• GPH Recovery @ 90 Degrees F: 13.6
• Heating Element: Stainless steel
• Insulation Thickness: 2.75 in
• Litres: 189
• Mobile Home Compatible: No
• Operating Modes: Standard Electric
• Rated Storage Capacity: 50
• Temp & Pressure Relief Valve
• Temperature Setting: 90-150° F Range
• Temperature Setting Factory Default: 120° F
• Water Connection Location: Top
• Electrical Circuit Required: 208V/240V 60 Hz Dedicated 20 Amp Min.
• Electrical Connection: Direct-Wire
• Heating - Electric - Heater Watts: 3000
• Integrated Energy Factor: 0.93
• Operating Water Pressure: 20-125 PSI
• Voltage (MAX): 240 V
• Volts/Hertz: 240V; 60Hz
Dimensions
Width
22 inch(es) / 55.88 cm
Height
62.37 inch(es) / 158.43 cm
Depth
22 inch(es) / 55.88 cm
Weight
142 lb(s) / 64.41 kg
Shipping Dimensions
Weight
153.99 lb(s) / 69.85 kg
Warranty
Warranty
Parts Warranty: Limited 8-year tank and parts
