Features
HOUSEHOLD SIZE
Provide hot water for the whole family of 2 to 4 persons

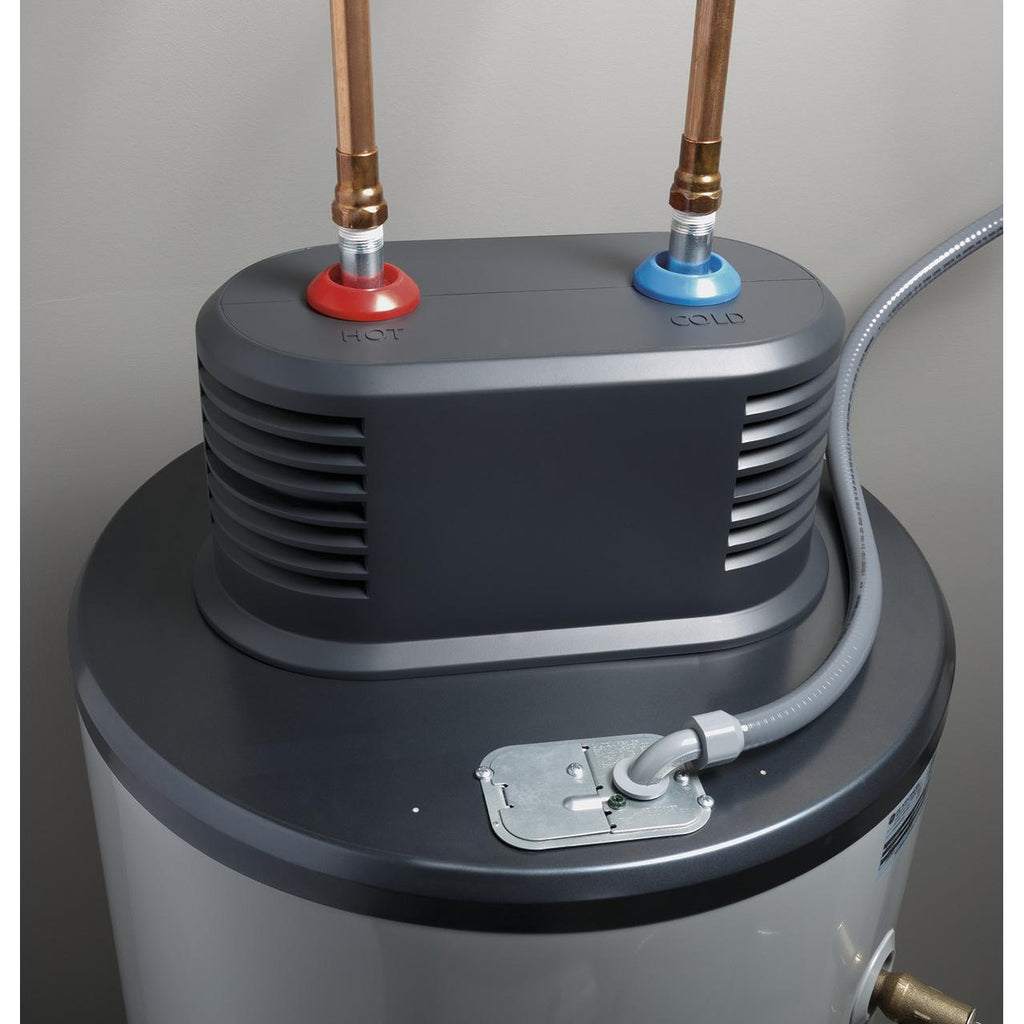

EASY SET UP
Replace your old water heater quickly and easily using standard water and electrical connections.

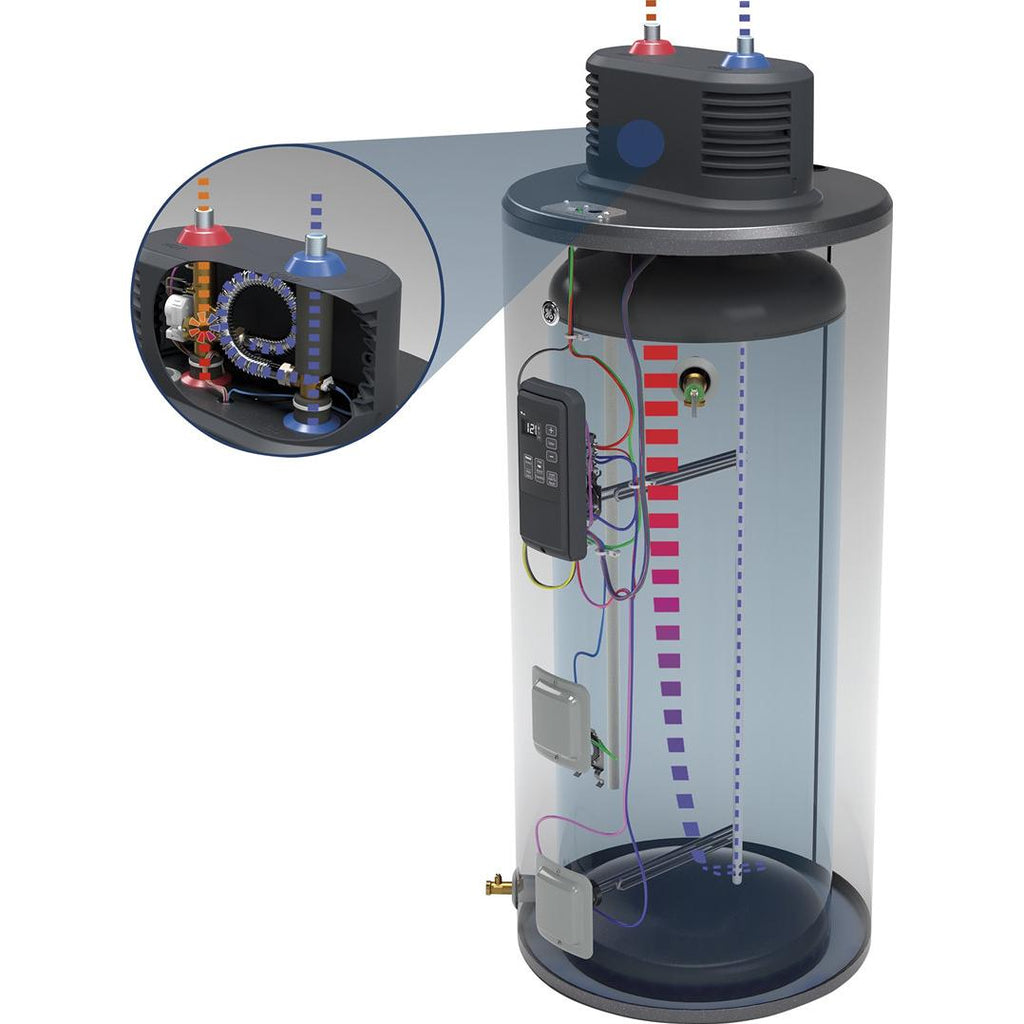

INLET TUBE
Replenishes water from the bottom of the tank to maximize hot water delivery.
BUILT-IN WiFi
Easily adjust temperatures, set vacation mode schedules and receive notifications with Built-in WiFi powered by SmartHQ

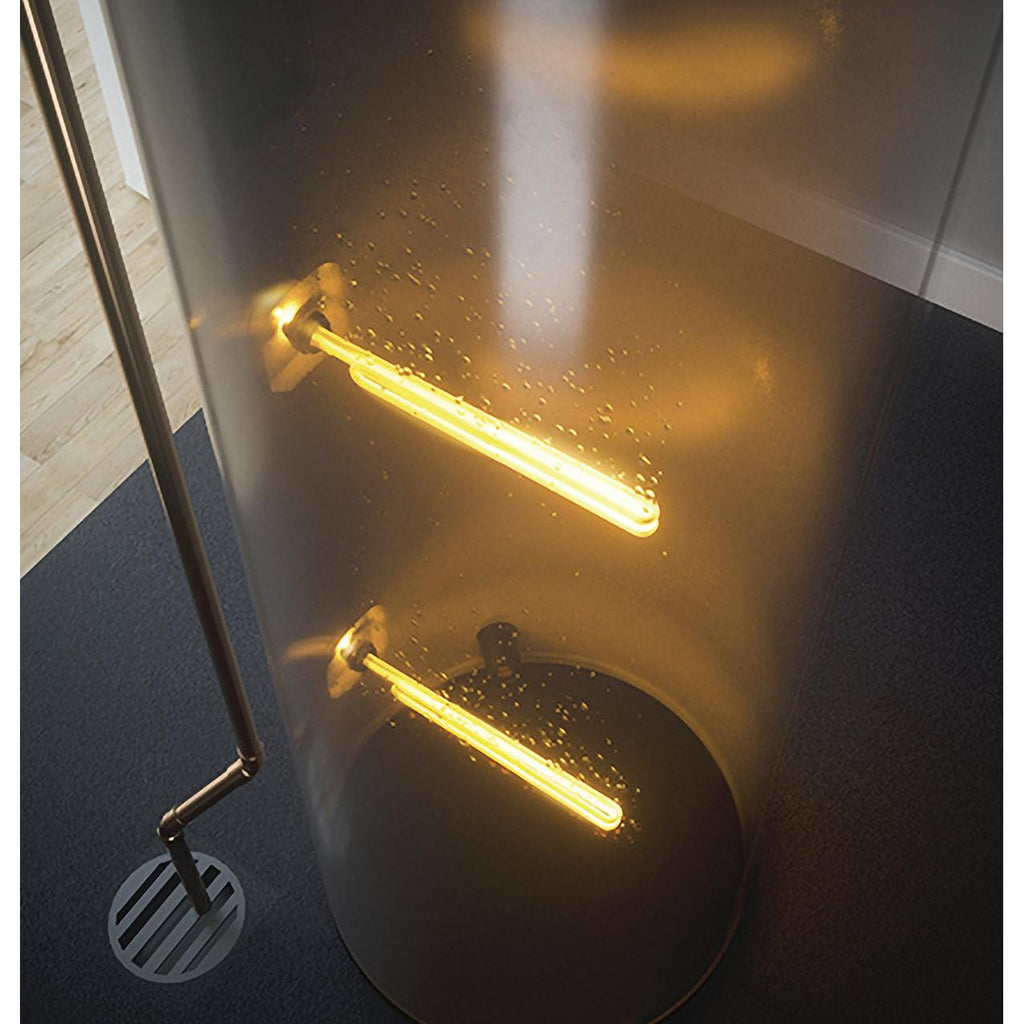

QUICK RECOVERY
Two 5500W heating elements quickly increase water temperature for hot water when you need it.

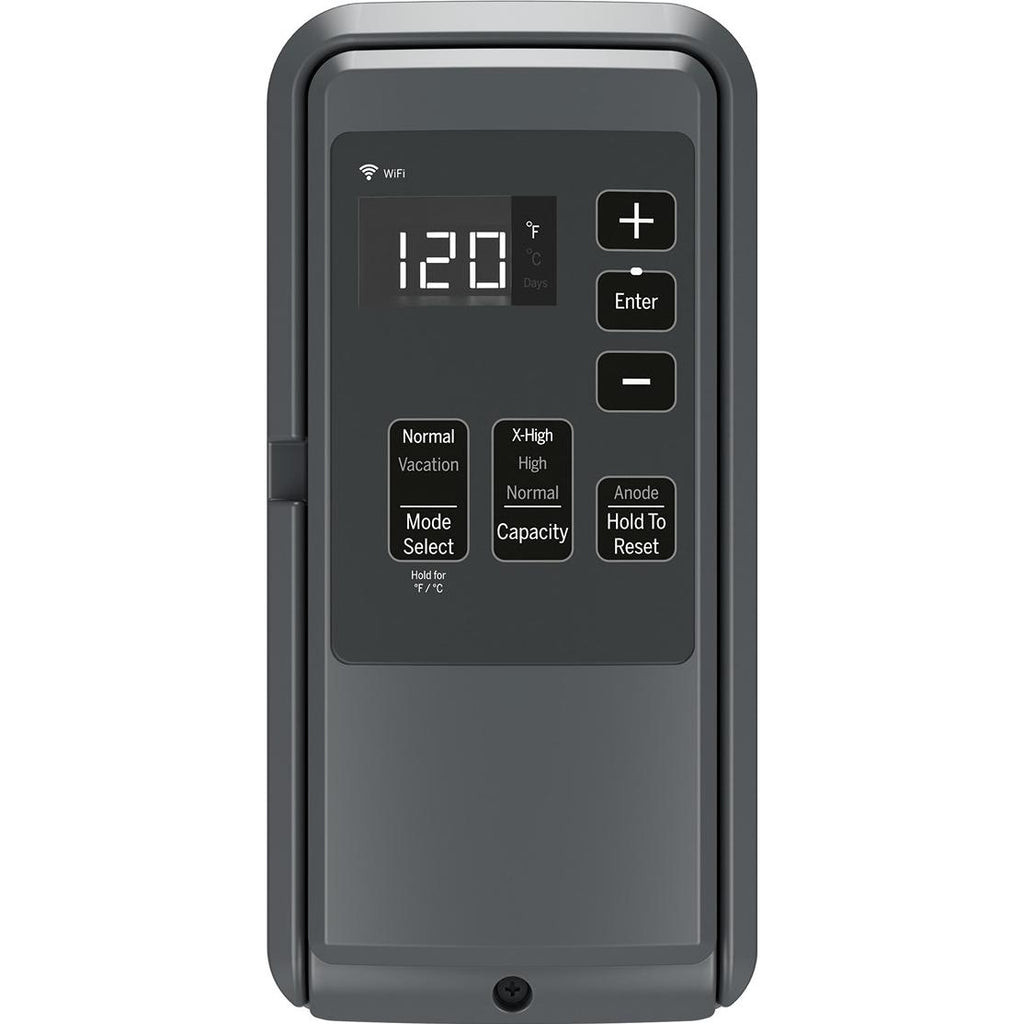

DIGITAL DISPLAY
Make easy, accurate adjustments at the touch of a button.
FLEXIBLE CAPACITY
Choose from three capacity settings to enjoy up to 60% additional hot water when you need it* *vs comparable water heaters without mixing valve at 120°F set and 58°F water temperature.
STAINLESS STEEL HEATING ELEMENTS
Ultra-durable stainless-steel heating elements resist rust and corrosion
BRASS DRAIN VALVE
Rust-proof construction can be counted on to provide long-lasting service.
ANODE SENSING
Notifies you when your anode rod needs replacing to help extend the life of your tank
Specifications
General
Type
Short
Model Type
Residential
Fuel Type
Electric
Installation
Floorstanding
Color
Grey
Features
Controls
Electronic with Digital Display
Additional Information
• Effective Capacity at X-High Setting (gallons): 80
• Imperial Gallons: 42 Imp Gallons
• Unit Capacity: 50 Gallons
• Diagnostic Feedback
• Drain Valve Type: Polymer
• Effective Capacity at X-High Setting (Imperial gallons): 67 Imp Gallons
• Effective Capacity at X-High Setting (Litres): 303
• Effective Capacity Settings: Normal/High/X-High
• Flexible Capacity

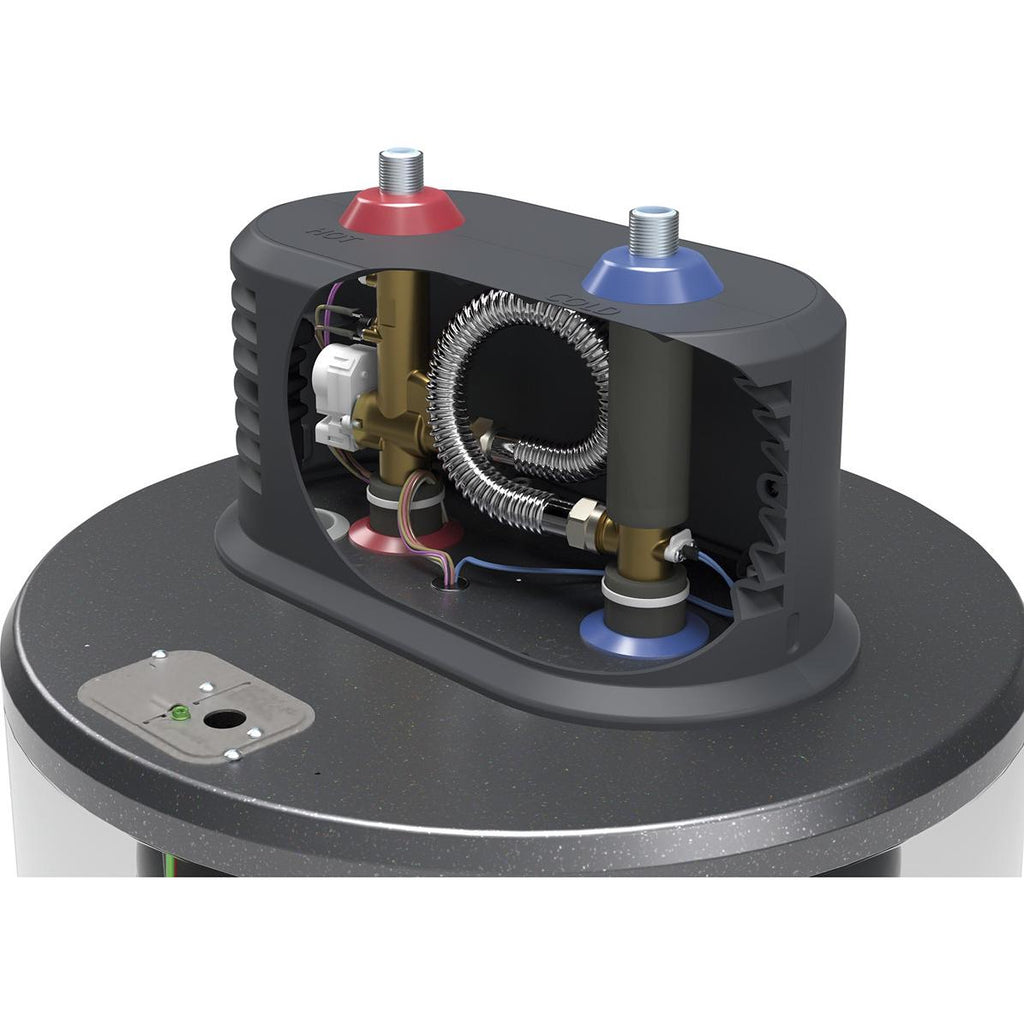

• Electronic, Integrated Mixing Valve
• Family Size: 3-5 People / 5-6 People
• Foam Insulation
• GPH Recovery @ 90 Degrees F: 13.6
• Heating Element: Stainless steel
• Insulation Thickness: 2.75 in
• Litres: 189
• Mobile Home Compatible: No

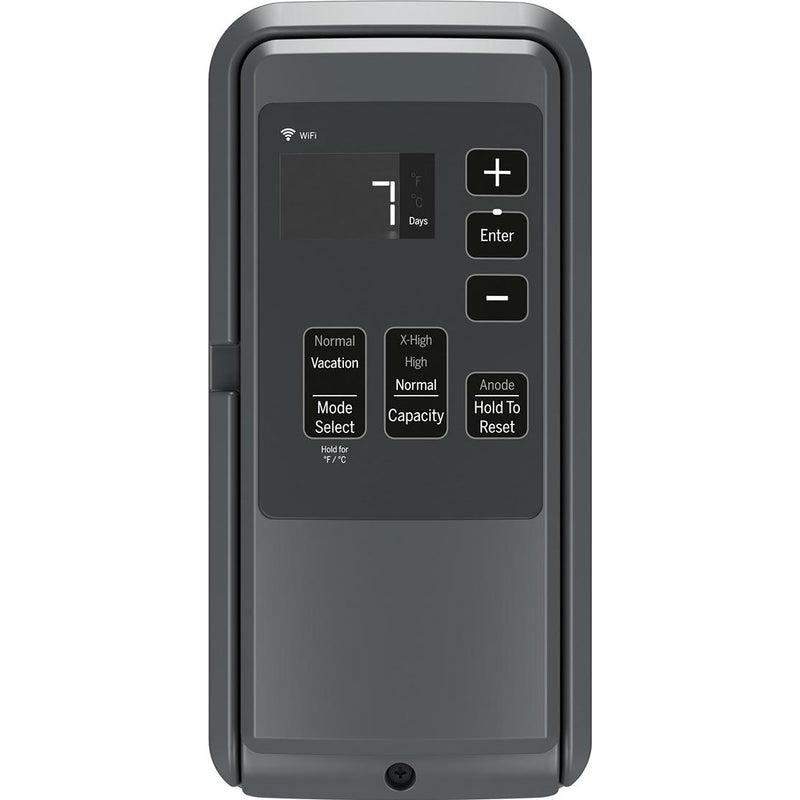

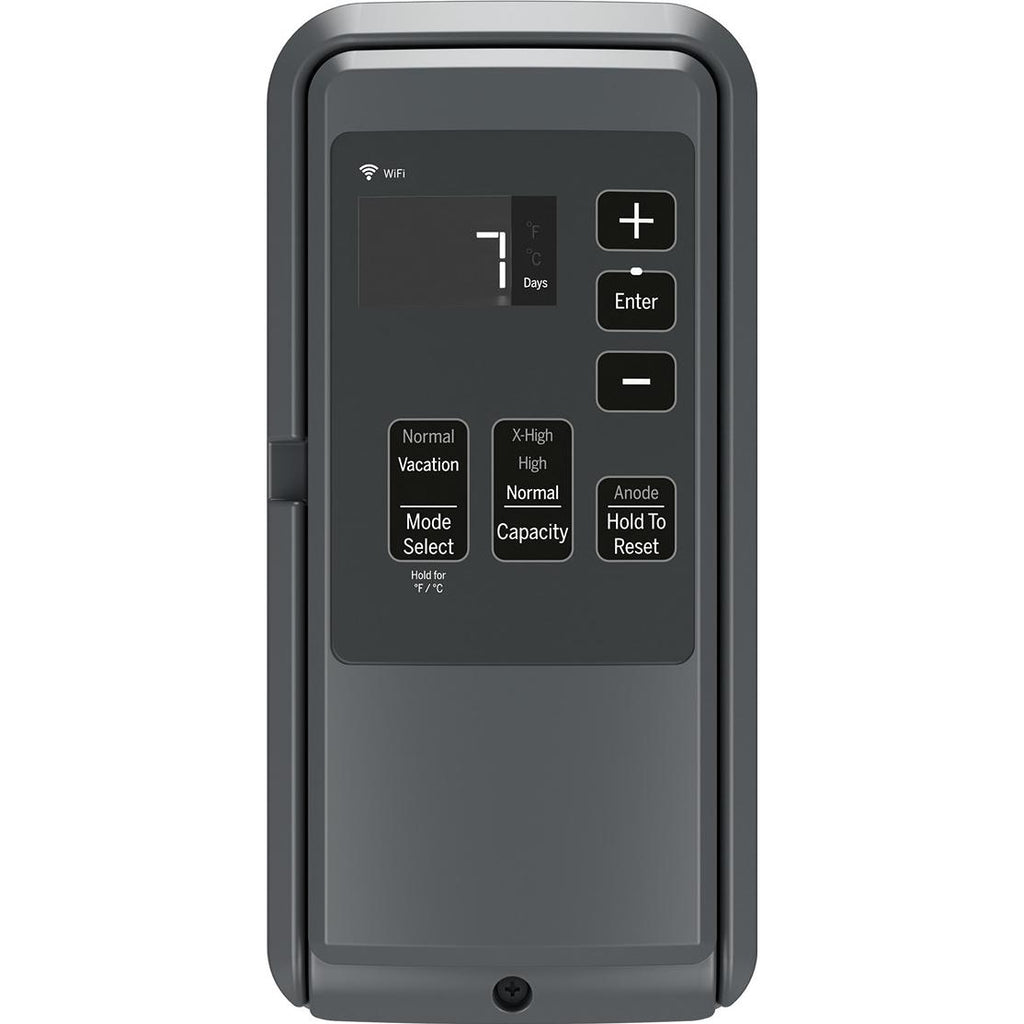

• Operating Modes: Normal, Vacation
• Overheat Protection
• Product Type: Electric Flexible Capacity
• Rated Storage Capacity: 50
• Sensing Anode
• Temp & Pressure Relief Valve
• Temperature Setting: 100-140° F Range
• Temperature Setting Factory Default: 120° F
• Water Connection Location: Top
• WiFi Connect: Built-In
• Electrical Circuit Required: 208V/240V 60 Hz Dedicated 20 Amp Min
• Electrical Connection: Direct-Wire
• Element Type: Stainless Steel
• Heating - Electric - Heater Watts: 3000
• Integrated Energy Factor: 0.93
• Operating Water Pressure: 20-125 PSI
• Voltage (MAX): 240 V
• Volts/Hertz: 240V; 60Hz
• Imperial Gallons: 42 Imp Gallons
• Unit Capacity: 50 Gallons
• Diagnostic Feedback
• Drain Valve Type: Polymer
• Effective Capacity at X-High Setting (Imperial gallons): 67 Imp Gallons
• Effective Capacity at X-High Setting (Litres): 303
• Effective Capacity Settings: Normal/High/X-High
• Flexible Capacity
• Electronic, Integrated Mixing Valve
• Family Size: 3-5 People / 5-6 People
• Foam Insulation
• GPH Recovery @ 90 Degrees F: 13.6
• Heating Element: Stainless steel
• Insulation Thickness: 2.75 in
• Litres: 189
• Mobile Home Compatible: No
• Operating Modes: Normal, Vacation
• Overheat Protection
• Product Type: Electric Flexible Capacity
• Rated Storage Capacity: 50
• Sensing Anode
• Temp & Pressure Relief Valve
• Temperature Setting: 100-140° F Range
• Temperature Setting Factory Default: 120° F
• Water Connection Location: Top
• WiFi Connect: Built-In
• Electrical Circuit Required: 208V/240V 60 Hz Dedicated 20 Amp Min
• Electrical Connection: Direct-Wire
• Element Type: Stainless Steel
• Heating - Electric - Heater Watts: 3000
• Integrated Energy Factor: 0.93
• Operating Water Pressure: 20-125 PSI
• Voltage (MAX): 240 V
• Volts/Hertz: 240V; 60Hz
Dimensions
Width
24 inch(es) / 60.96 cm
Height
59.5 inch(es) / 151.13 cm
Depth
24 inch(es) / 60.96 cm
Weight
159.99 lb(s) / 72.57 kg
Shipping Dimensions
Weight
170.99 lb(s) / 77.56 kg
Warranty
Warranty
Parts Warranty: Limited 10-year tank and parts
