Features
BUILT-IN WiFi
Easily adjust temperatures, set vacation mode schedules and receive notifications with Built-in WiFi powered by SmartHQ

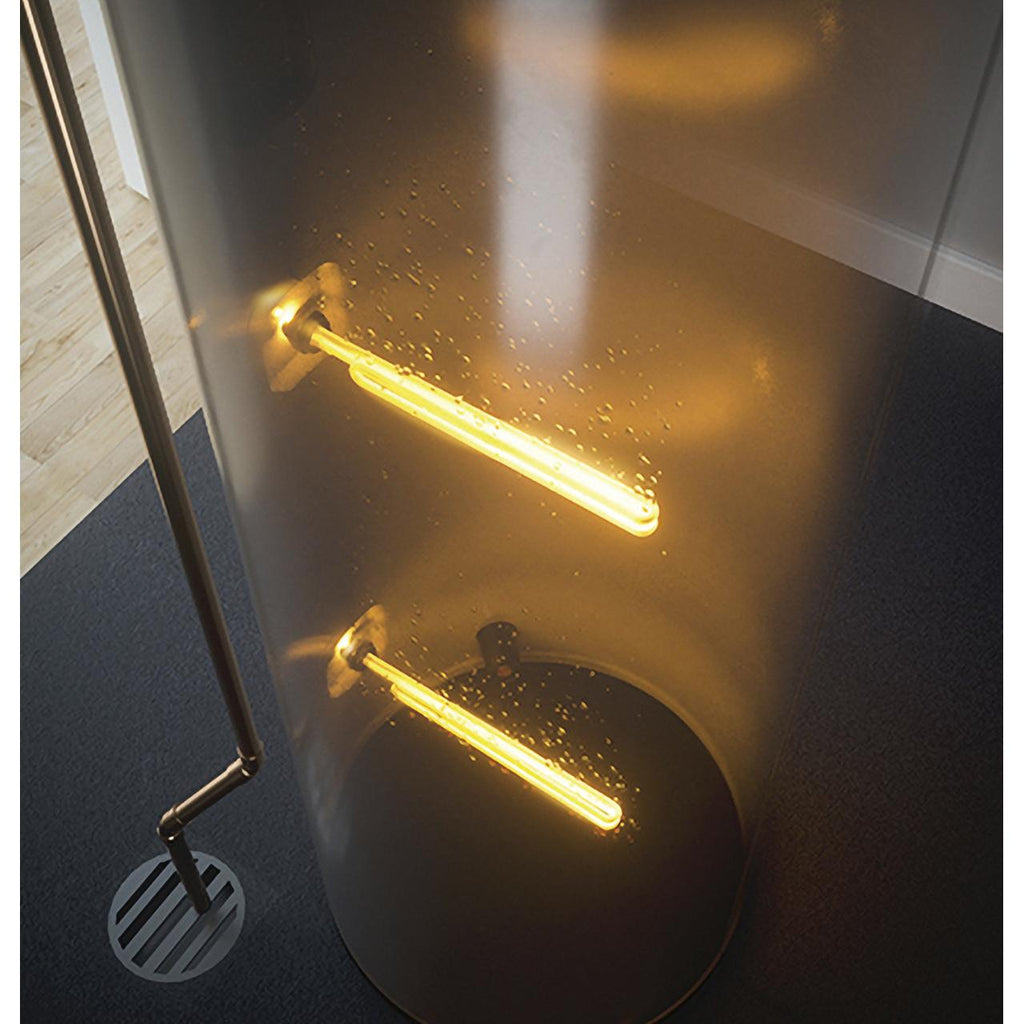

QUICK RECOVERY
Two 5500W heating elements quickly increase water temperature for hot water when you need it.
INLET TUBE
Replenishes water from the bottom of the tank to maximize hot water delivery.
EASY SET UP

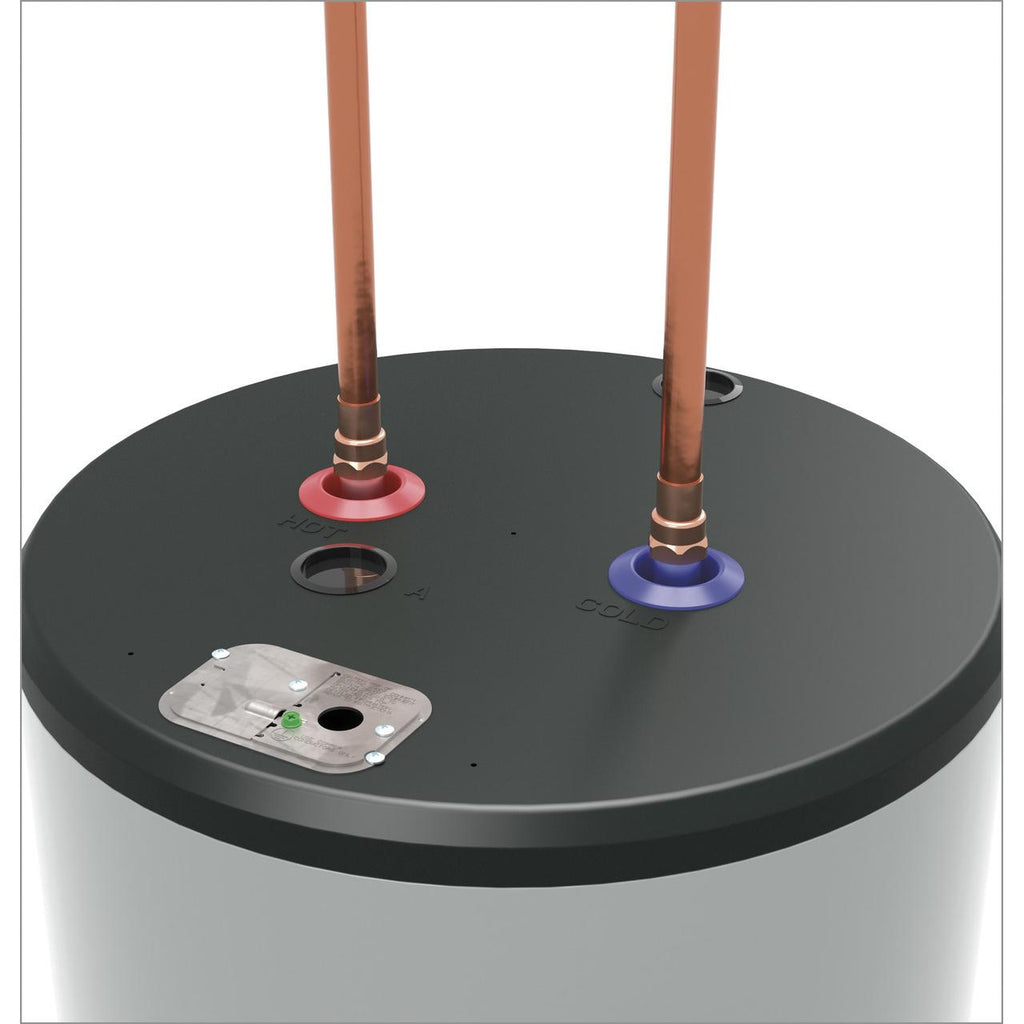

Replace your old water heater quickly and easily using standard water and electrical connections.
ANODE ROD
Durable design extends the life of your water heater with long-lasting protection against corrosion.
DRAIN VALVE
Rust-proof construction can be counted on to provide long-lasting service.
DIGITAL DISPLAY
Make easy, accurate adjustments at the touch of a button.
Specifications
General
Type
Short
Model Type
Residential
Fuel Type
Electric
Installation
Floorstanding
Color
Grey
Unit Capacity
50 Imperial Gallons
Energy Factor
0.93
Connection Size
0.75 in
Certifications and Approvals
Certifications
• Certified to NSF/ANSI 372
• Listed by Underwriters Laboratories
• Listed by Underwriters Laboratories
Features
Protection
Overheat Protection
Controls
• Control Type: Electronic with Digital Display
• Operating Modes: Normal, Vacation
• Operating Modes: Normal, Vacation
Additional Information
• Temperature Setting: 100-140° F Range
• Temperature Setting Factory Default: 120° F
• Drain Valve Type: Plastic
• WiFi Connect: Built-In
• Diagnostic Feedback
• Family Size: 3-5 People
• Water Connection Location: Top
• Electrical Circuit Required: Dedicated 30 Amp Min.
• Electrical Connection: Direct-Wire
• First Hour Rate (FHR): 75 Gallons
• Heating - Electric - Heater Watts: 5500/5500
• Operating Water Pressure: 20-125 PSI
• Voltage (MAX): 240.0 V
• Volts/Hertz: 240V; 60Hz
• Product Height (to top of water inlet/outlet connections): 53.0 in
• Temperature Setting Factory Default: 120° F
• Drain Valve Type: Plastic
• WiFi Connect: Built-In
• Diagnostic Feedback
• Family Size: 3-5 People
• Water Connection Location: Top
• Electrical Circuit Required: Dedicated 30 Amp Min.
• Electrical Connection: Direct-Wire
• First Hour Rate (FHR): 75 Gallons
• Heating - Electric - Heater Watts: 5500/5500
• Operating Water Pressure: 20-125 PSI
• Voltage (MAX): 240.0 V
• Volts/Hertz: 240V; 60Hz
• Product Height (to top of water inlet/outlet connections): 53.0 in
Dimensions
Width
24 inch(es) / 60.96 cm
Height
53 inch(es) / 134.62 cm
Depth
24 inch(es) / 60.96 cm
Weight
150 lb(s) / 68.04 kg
Shipping Dimensions
Width
25.1 inch(es) / 63.75 cm
Height
54.7 inch(es) / 138.94 cm
Depth
26.3 inch(es) / 66.80 cm
Weight
161 lb(s) / 73.03 kg
Warranty
Warranty
• Parts Warranty: 10-year limited
• Labor Warranty: 1-year limited
• Labor Warranty: 1-year limited
UPC
UPC#
084691846420
