Features
FLEXIBLE CAPACITY
Choose from three capacity settings to enjoy up to 60% additional hot water when you need it* *vs comparable water heaters without mixing valve at 120°F set and 58°F water temperature.

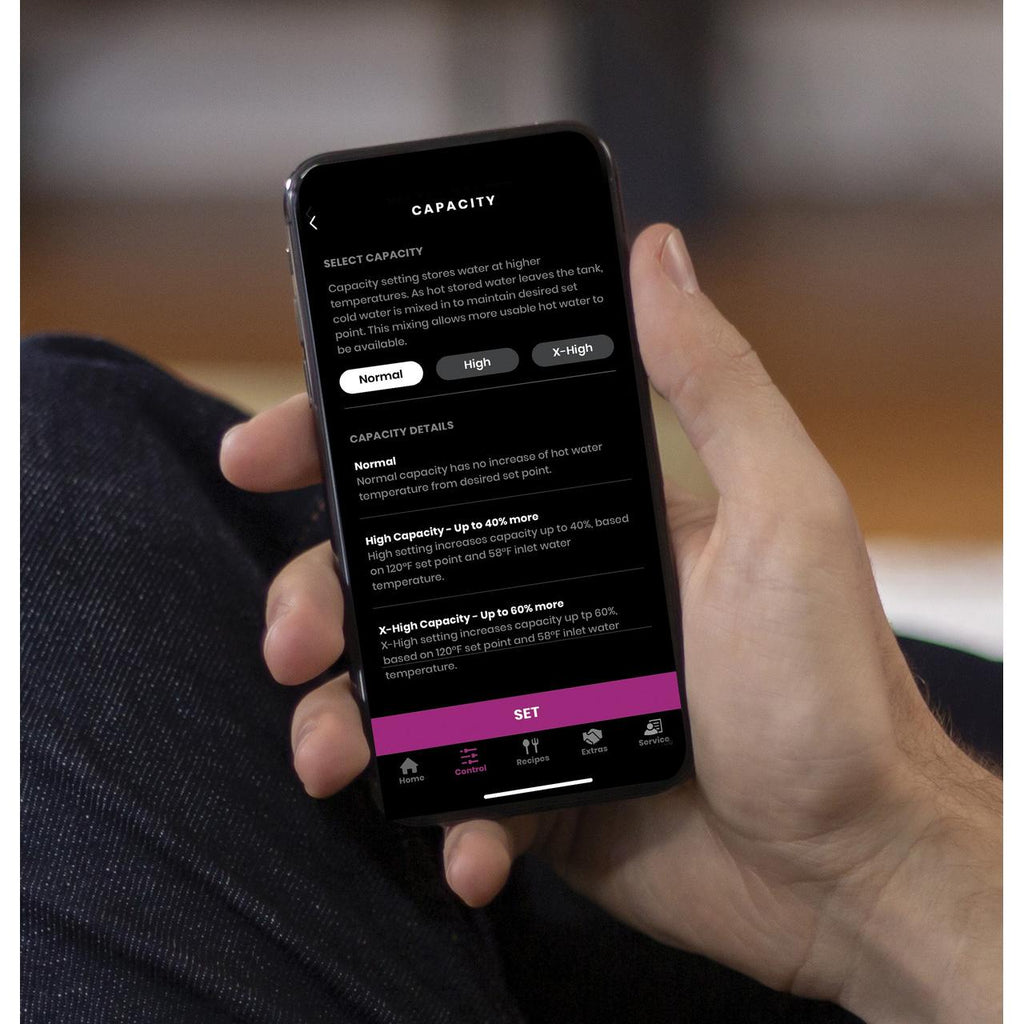

BUILT-IN WiFi
Easily adjust temperatures, set vacation mode schedules and receive notifications with Built-in WiFi powered by SmartHQ
QUICK RECOVERY
Two 5500W heating elements quickly increase water temperature for hot water when you need it.
ANODE SENSING
Notifies you when your anode rod needs replacing to help extend the life of your tank
STAINLESS STEEL HEATING ELEMENTS
Ultra-durable stainless-steel heating elements resist rust and corrosion
INLET TUBE
Replenishes water from the bottom of the tank to maximize hot water delivery.
BRASS DRAIN VALVE
Rust-proof construction can be counted on to provide long-lasting service.
EASY SET UP
Replace your old water heater quickly and easily using standard water and electrical connections.
Specifications
General
Type
Short
Fuel Type
Electric
Installation
Floorstanding
Color
Grey
Unit Capacity
40 US Gallons
Energy Factor
0.92
Connection Size
0.75 in
Certifications and Approvals
Certifications
• NSF
• UL
• UL
Features
Protection
Overheat Protection
Controls

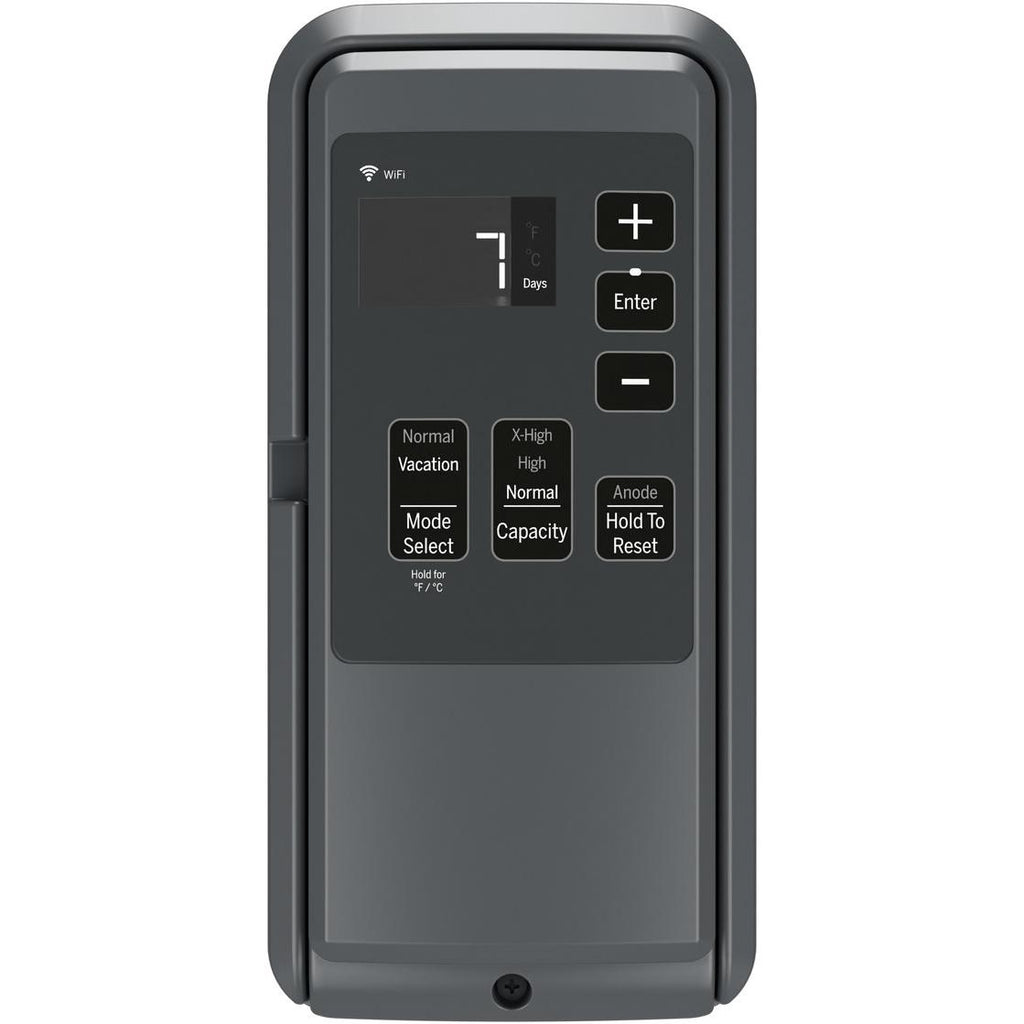

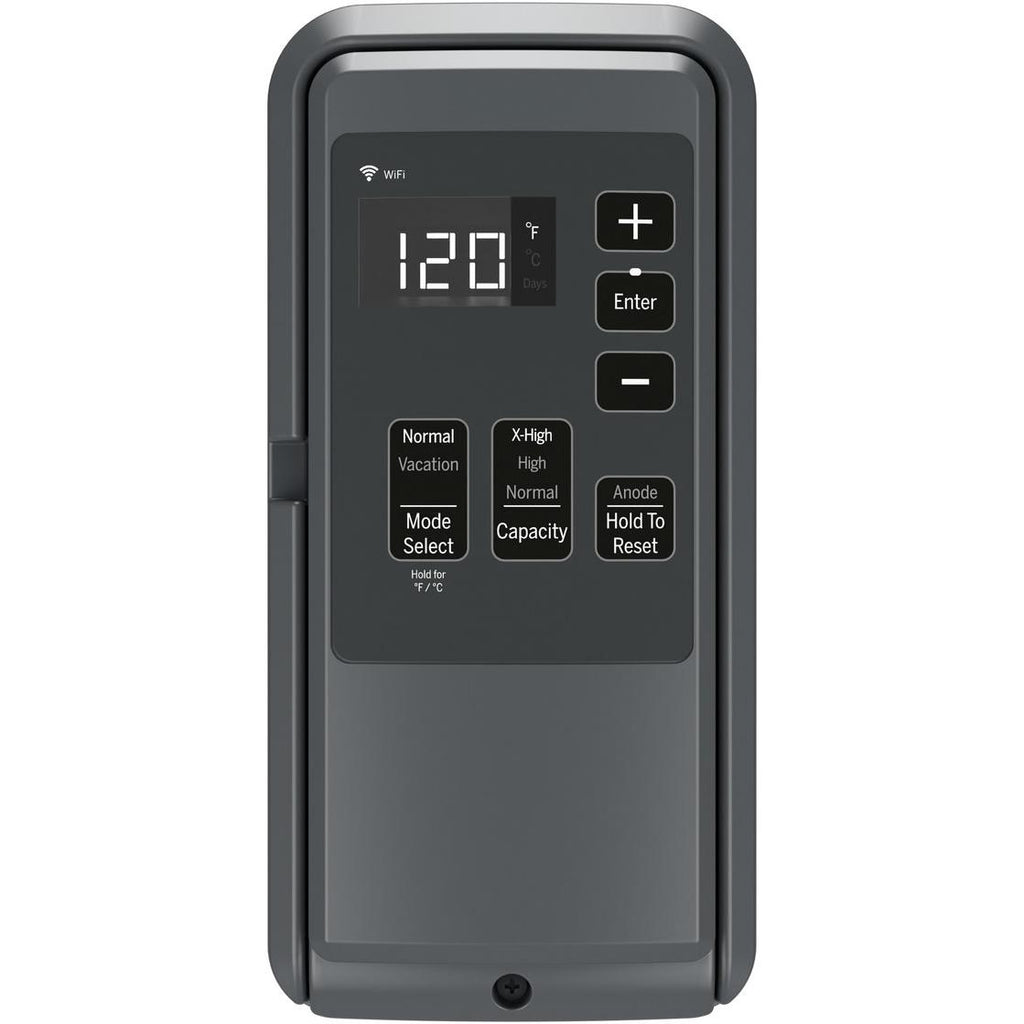

Electronic with Digital Display
Additional Information
• Effective Capacity at X-High Setting (gallons): 64
• Operating Modes: Normal, Vacation
• Effective Capacity Settings: Flexible Capacity, Normal/High/X-High
• Electronic, Integrated Mixing Valve
• Temperature Setting: 100-140° F Range
• Temperature Setting Factory Default: 120° F
• Drain Valve Type: Brass
• WiFi Connect: Built-In
• Diagnostic Feedback
• Family Size: 2-4 People, 3-5 People
• Sensing Anode
• Water Connection Location: Top
• Electrical Circuit Required: 208V/240V 60 Hz Dedicated 30 Amp Min.
• Electrical Connection: Direct-Wire
• Element Type: Stainless Steel
• First Hour Rate (FHR): 65 Gallons
• Heating - Electric - Heater Watts: 5500/5500
• Operating Water Pressure: 20-125 PSI
• 240V
• 60Hz
• Product Height (to top of unit): 59.375 in
• Operating Modes: Normal, Vacation
• Effective Capacity Settings: Flexible Capacity, Normal/High/X-High
• Electronic, Integrated Mixing Valve
• Temperature Setting: 100-140° F Range
• Temperature Setting Factory Default: 120° F
• Drain Valve Type: Brass
• WiFi Connect: Built-In
• Diagnostic Feedback
• Family Size: 2-4 People, 3-5 People
• Sensing Anode
• Water Connection Location: Top
• Electrical Circuit Required: 208V/240V 60 Hz Dedicated 30 Amp Min.
• Electrical Connection: Direct-Wire
• Element Type: Stainless Steel
• First Hour Rate (FHR): 65 Gallons
• Heating - Electric - Heater Watts: 5500/5500
• Operating Water Pressure: 20-125 PSI
• 240V
• 60Hz
• Product Height (to top of unit): 59.375 in
Dimensions
Width
22 inch(es) / 55.88 cm
Height
60.87 inch(es) / 154.62 cm
Depth
22 inch(es) / 55.88 cm
Weight
131 lb(s) / 59.42 kg
Shipping Dimensions
Width
23.1 inch(es) / 58.67 cm
Height
62.5 inch(es) / 158.75 cm
Depth
24.3 inch(es) / 61.72 cm
Weight
142.99 lb(s) / 64.86 kg
Warranty
Warranty
• Parts Warranty: 10-year limited
• Labor Warranty; 1-year limited
• Labor Warranty; 1-year limited
UPC
UPC#
084691846536
