Features
QUICK RECOVERY

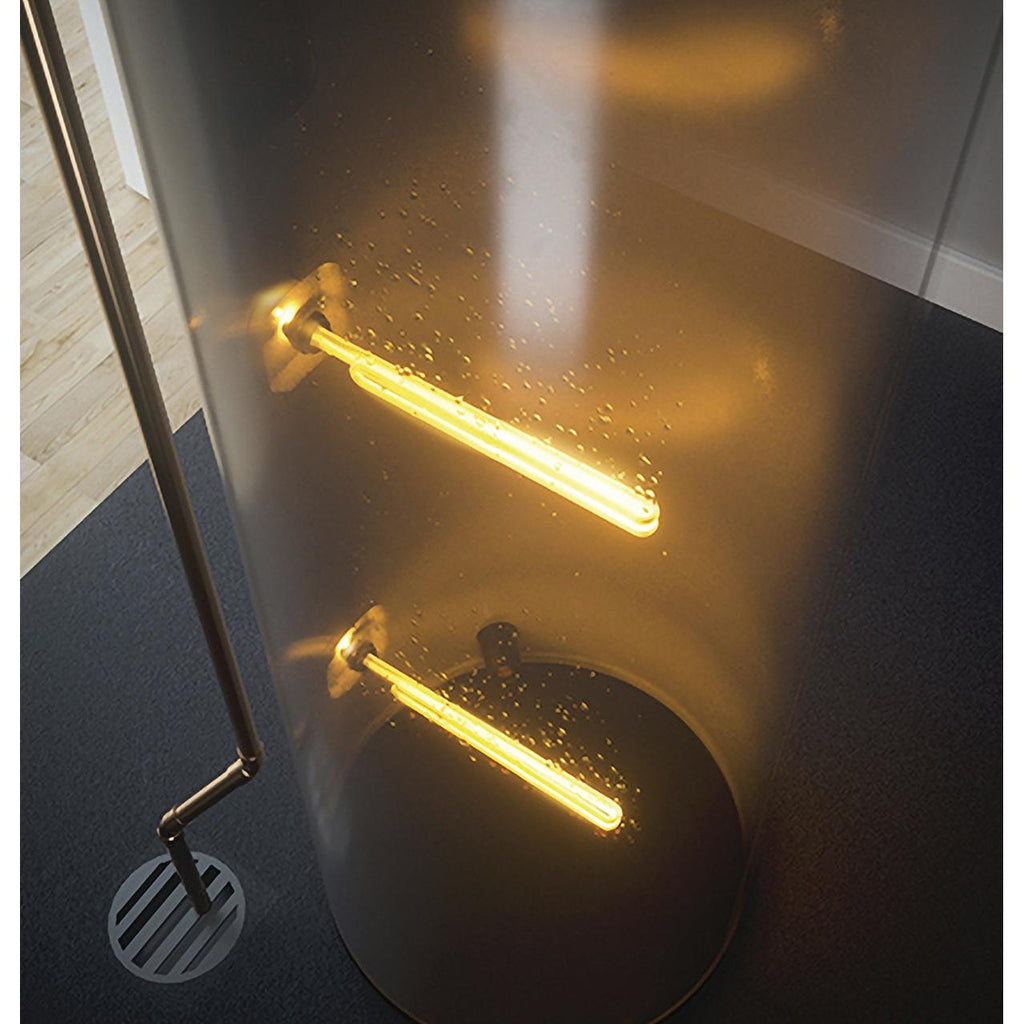

Two 5500W heating elements quickly increase water temperature for hot water when you need it.
HOUSEHOLD SIZE
Provide hot water for the whole family of 2 to 4 persons
EASY SET UP
Replace your old water heater quickly and easily using standard water and electrical connections.
DRAIN VALVE
Rust-proof construction can be counted on to provide long-lasting service.
INLET TUBE
Replenishes water from the bottom of the tank to maximize hot water delivery.
ANODE ROD
Durable design extends the life of your water heater with long-lasting protection against corrosion.
ADJUSTABLE THERMOSTAT
Easily change temperatures to your desired settings.
Specifications
General
Type
Short
Model Type
Residential
Fuel Type
Electric
Installation
Floorstanding
Color
Grey
Unit Capacity
33 Imperial Gallons
Recovery
25.1 GPH
Connection Size
.75 in
Features
Controls
Control Type: Thermostat
Additional Information
• Real Capacity
• Household Size
• Quick Recovery
• Inlet Tube
• Drain Valve Type: Plastic
• Family Size: 2-4 People
• Foam Insulation
• GPH Recovery @ 90 Degrees F: 25.1
• Heating Element: Copper
• Height Description: Short
• Installation Location: Indoor
• Insulation Thickness: 2.75 in
• Operating Modes: Standard Electric
• Point of Use
• Product Type: Electric Thermostat
• Rated Storage Capacity: 40
• Temp & Pressure Relief Valve
• Temperature Setting: 90-150° F Range
• Temperature Setting Factory Default: 120° F

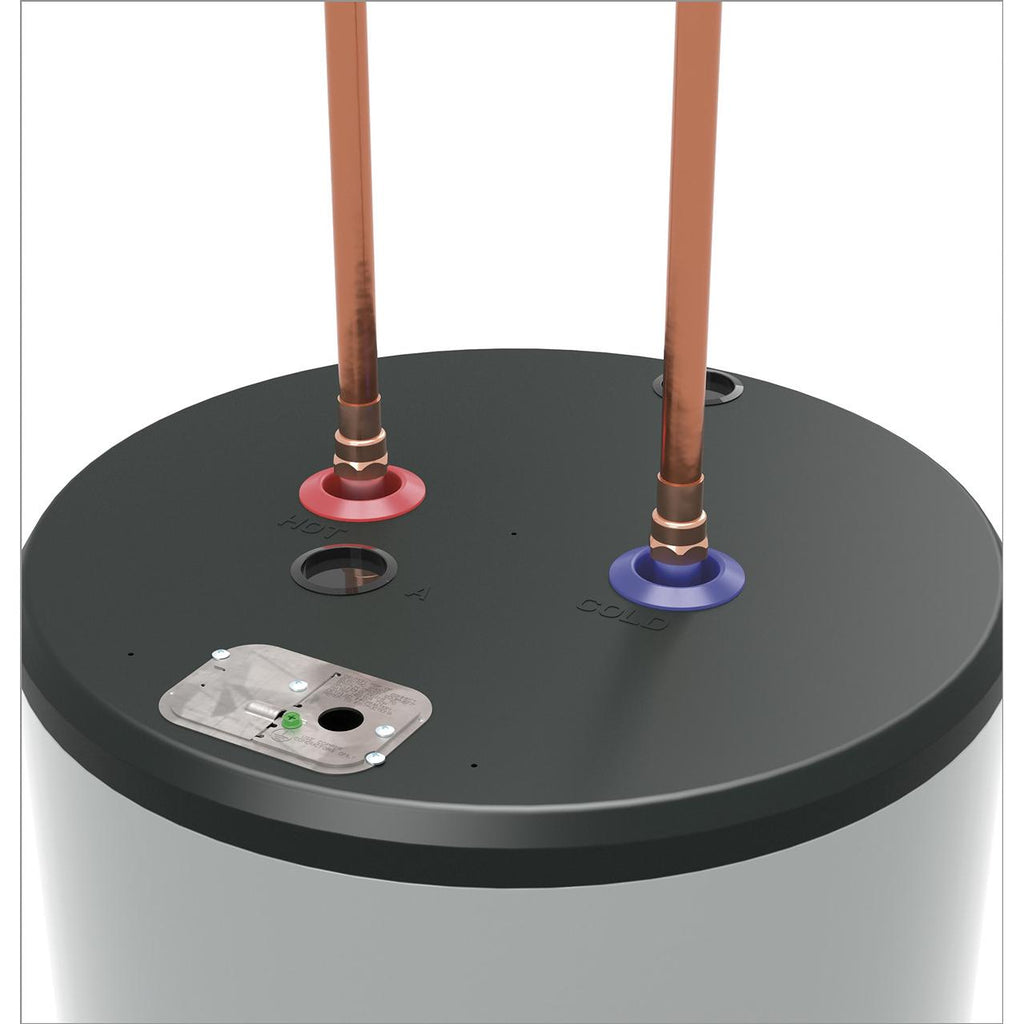

• Water Connection Location: Top
• ectrical Circuit Required: 208V/240V 60 Hz Dedicated 30 Amp Min.
• Electrical Connection: Direct-Wire
• Heating - Electric - Heater Watts: 3000/3000
• Operating Water Pressure: 20-125 PSI
• Voltage (MAX): 240 V
• Volts/Hertz: 240V; 60Hz
• Household Size
• Quick Recovery
• Inlet Tube
• Drain Valve Type: Plastic
• Family Size: 2-4 People
• Foam Insulation
• GPH Recovery @ 90 Degrees F: 25.1
• Heating Element: Copper
• Height Description: Short
• Installation Location: Indoor
• Insulation Thickness: 2.75 in
• Operating Modes: Standard Electric
• Point of Use
• Product Type: Electric Thermostat
• Rated Storage Capacity: 40
• Temp & Pressure Relief Valve
• Temperature Setting: 90-150° F Range
• Temperature Setting Factory Default: 120° F
• Water Connection Location: Top
• ectrical Circuit Required: 208V/240V 60 Hz Dedicated 30 Amp Min.
• Electrical Connection: Direct-Wire
• Heating - Electric - Heater Watts: 3000/3000
• Operating Water Pressure: 20-125 PSI
• Voltage (MAX): 240 V
• Volts/Hertz: 240V; 60Hz
Dimensions
Width
22 inch(es) / 55.88 cm
Height
52.87 inch(es) / 134.3 cm
Depth
22 inch(es) / 55.88 cm
Weight
120.99 lb(s) / 54.88 kg
Shipping Dimensions
Weight
133 lb(s) / 60.33 kg
Warranty
Warranty
Parts Warranty: Limited 8-year tank and parts
