Specifications
General
Type
Tall
Model Type
Residential
Fuel Type
Electric
Installation
Floorstanding
Color
Grey
Unit Capacity
33 Imperial Gallons
Features
Controls
Control Type: Thermostat
Additional Information
• Drain Valve Type: Plastic
• Family Size: 2-4 People
• Foam Insulation
• GPH Recovery @ 90°F: 13.6

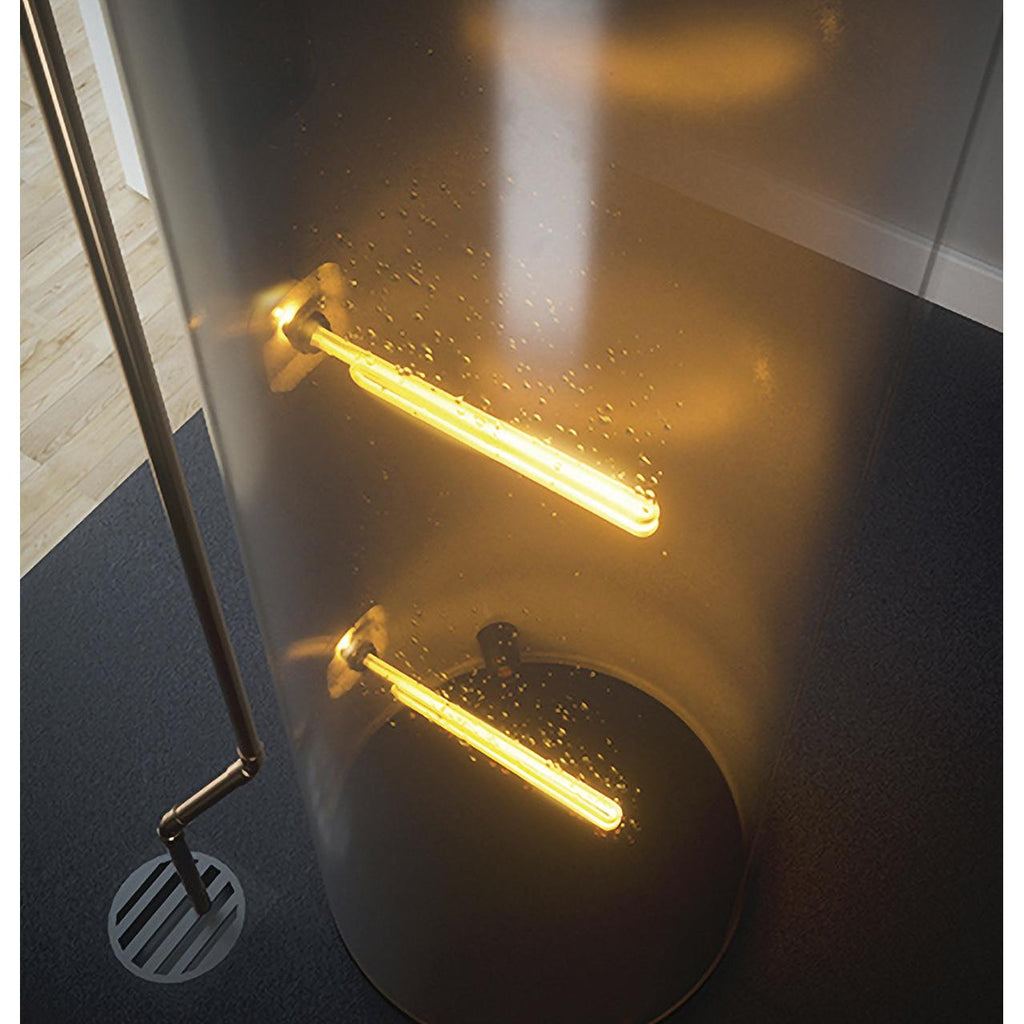

• Heating Element: Stainless Steel
• Insulation Thickness: 2.75 in
• Litres: 151
• Product Type: Electric Thermostat
• Rated Storage Capacity: 40
• Temp & Pressure Relief Valve
• Temperature Setting: 90-150°F Range
• Temperature Setting Factory Default: 120°F

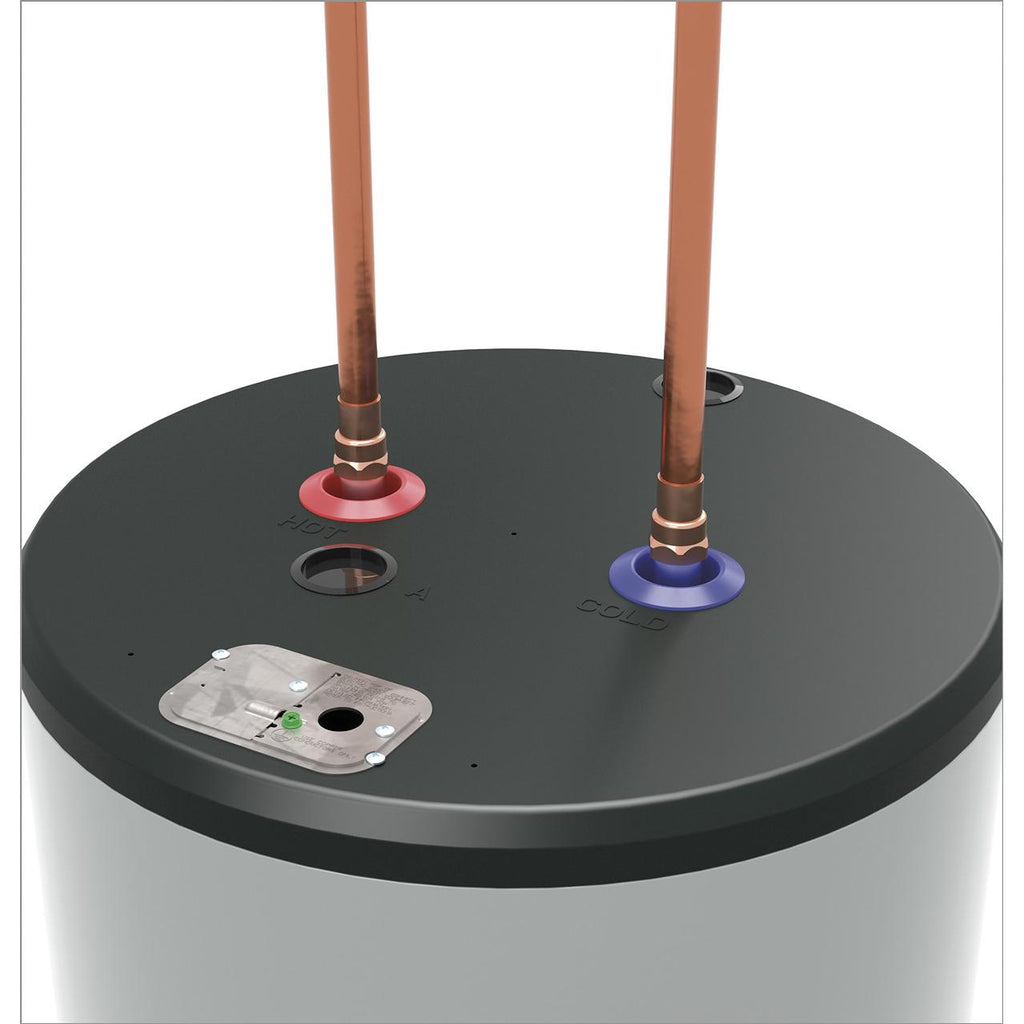

• Water Connection Location: Top
• Electrical Circuit Required: 208V/240V 60 Hz Dedicated 20 Amp Min.
• Electrical Connection: Direct-Wire
• Heating - Electric - Heater Watts: 3000
• Integrated Energy Factor: 0.92
• Operating Water Pressure: 20-125 PSI
• Voltage (MAX): 240 V
• Volts/Hertz: 240V; 60Hz
• Family Size: 2-4 People
• Foam Insulation
• GPH Recovery @ 90°F: 13.6
• Heating Element: Stainless Steel
• Insulation Thickness: 2.75 in
• Litres: 151
• Product Type: Electric Thermostat
• Rated Storage Capacity: 40
• Temp & Pressure Relief Valve
• Temperature Setting: 90-150°F Range
• Temperature Setting Factory Default: 120°F
• Water Connection Location: Top
• Electrical Circuit Required: 208V/240V 60 Hz Dedicated 20 Amp Min.
• Electrical Connection: Direct-Wire
• Heating - Electric - Heater Watts: 3000
• Integrated Energy Factor: 0.92
• Operating Water Pressure: 20-125 PSI
• Voltage (MAX): 240 V
• Volts/Hertz: 240V; 60Hz
Dimensions
Width
20 inch(es) / 50.80 cm
Height
64 inch(es) / 162.56 cm
Depth
20 inch(es) / 50.80 cm
Weight
127.01 lb(s) / 57.61 kg
Shipping Dimensions
Weight
139 lb(s) / 63.05 kg
Warranty
Warranty
Parts Warranty: Limited 8-year tank and parts
