Features
INLET TUBE
Replenishes water from the bottom of the tank to maximize hot water delivery.
EASY SET UP
Replace your old water heater quickly and easily using standard water and electrical connections.
ANODE ROD
Durable design extends the life of your water heater with long-lasting protection against corrosion.
DRAIN VALVE
Rust-proof construction can be counted on to provide long-lasting service.
ADJUSTABLE THERMOSTAT
Easily change temperatures to your desired settings.
HOUSEHOLD SIZE
Provide hot water for the whole family of 2 to 4 persons
Additional Features
LOWBOY
Make the most of tight spaces with a water heater that fits where height is a concern
Specifications
General
Type
Short
Model Type
Residential
Fuel Type
Electric
Installation
Floorstanding
Color
Grey
Features
Controls
Thermostat
Additional Information
• Unit Capacity: 40 Gallons
• Configuration: Lowboy
• Drain Valve Type: Plastic
• Family Size: 2-4 People
• Foam Insulation
• GPH Recovery @ 90°F: 25.1
• Low Boy with Top Port
• Insulation Thickness: 2.75 in
• Product Type: Electric 4500W
• Rated Capacity: 36.0 gal
• Rated Storage Capacity: 36
• Temp & Pressure Relief Valve
• Temperature Setting: 90-150°F Range
• Temperature Setting Factory Default: 120°F

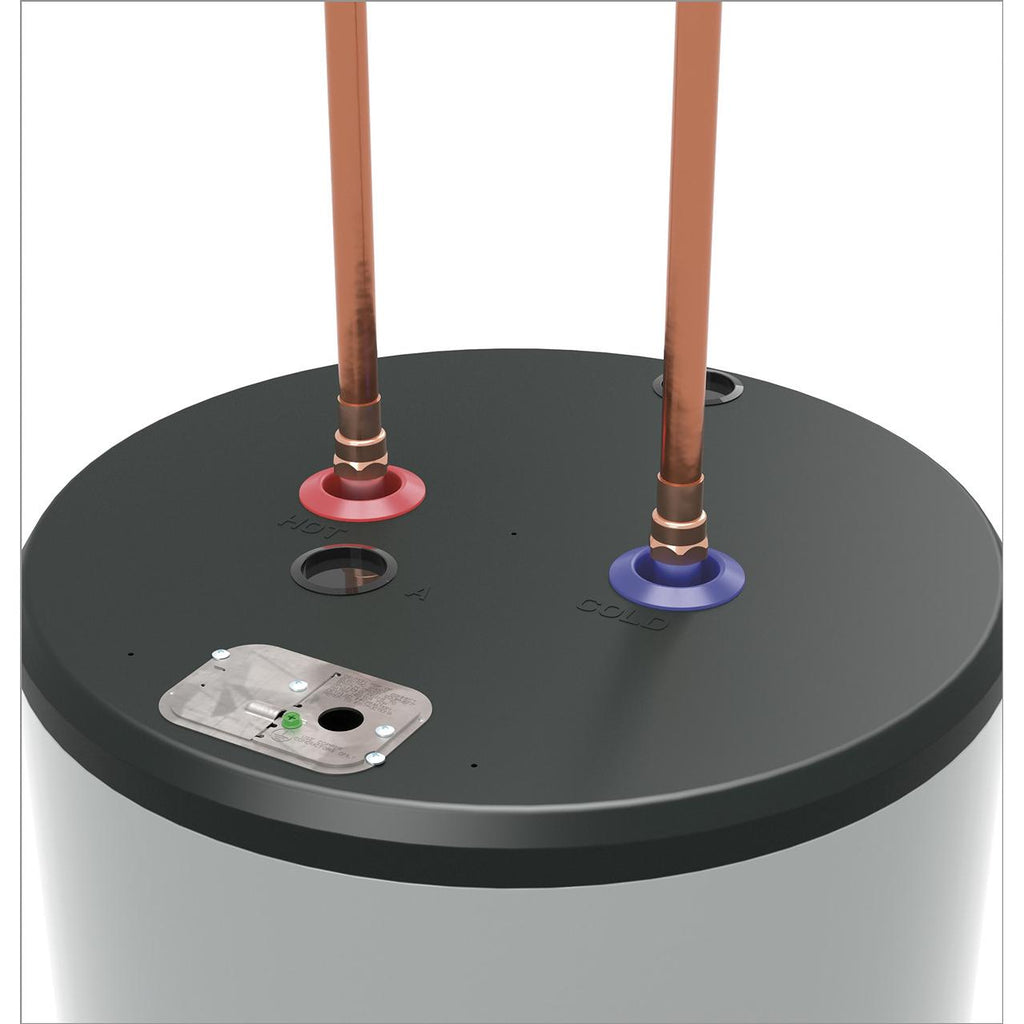

• Water Connection Location: Top
• Electrical Circuit Required: 208V/240V 60 Hz Dedicated 30 Amp Min.
• Electrical Connection: Direct-Wire
• Energy Consumption (kWh/year): 3531
• First Hour Rate (FHR): 56 Gallons
• Heating - Electric - Heater Watts: 4500/4500
• Integrated Energy Factor: 0.92
• Operating Water Pressure: 20-125 PSI
• Voltage (MAX): 240 V
• Volts/Hertz: 240V; 60Hz
• Configuration: Lowboy
• Drain Valve Type: Plastic
• Family Size: 2-4 People
• Foam Insulation
• GPH Recovery @ 90°F: 25.1
• Low Boy with Top Port
• Insulation Thickness: 2.75 in
• Product Type: Electric 4500W
• Rated Capacity: 36.0 gal
• Rated Storage Capacity: 36
• Temp & Pressure Relief Valve
• Temperature Setting: 90-150°F Range
• Temperature Setting Factory Default: 120°F
• Water Connection Location: Top
• Electrical Circuit Required: 208V/240V 60 Hz Dedicated 30 Amp Min.
• Electrical Connection: Direct-Wire
• Energy Consumption (kWh/year): 3531
• First Hour Rate (FHR): 56 Gallons
• Heating - Electric - Heater Watts: 4500/4500
• Integrated Energy Factor: 0.92
• Operating Water Pressure: 20-125 PSI
• Voltage (MAX): 240 V
• Volts/Hertz: 240V; 60Hz
Dimensions
Width
27 inch(es) / 68.58 cm
Height
32.75 inch(es) / 83.18 cm
Depth
27 inch(es) / 68.58 cm
Weight
135.01 lb(s) / 61.24 kg
Shipping Dimensions
Width
28.1 inch(es) / 71.37 cm
Height
34.5 inch(es) / 87.63 cm
Depth
28.8 inch(es) / 73.15 cm
Weight
145 lb(s) / 65.77 kg
Warranty
Warranty
• Labor Warranty: Limited 1-year entire appliance
• Parts Warranty: Limited 8-year tank and parts
• Parts Warranty: Limited 8-year tank and parts
UPC
UPC#
084691922858
