Features
12"/9" DUAL ELEMENT
A power boiler produces concentrated heat for rapid boiling in a flexible 12-inch/9-inch burner size, so you spend less time waiting and more time cooking
FIFTH ELEMENT WARMING ZONE
Fifth element warming zone provides low heat capability for foods.
TRUE EUROPEAN CONVECTION WITH PRECISE AIR
Bakes evenly as warm air blows from the top in and around bakeware.
9"/6" POWER BOIL ELEMENT
A power boiler produces concentrated heat for rapid boiling in a flexible 9-inch/6-inch burner size, so you spend less time waiting and more time cooking
FAST PREHEAT
Make hot meals in a hurry with less time preheating.

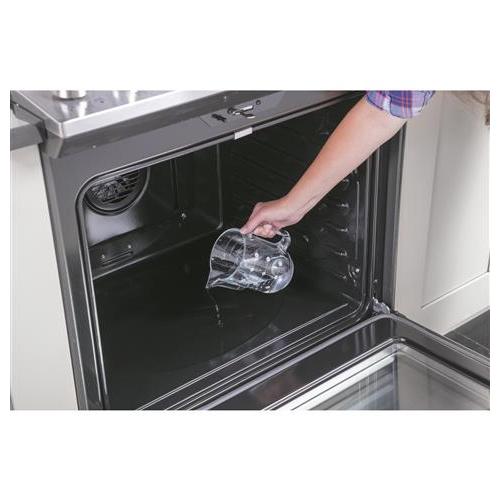

SELF-CLEAN WITH STEAM CLEAN OPTION
This self-cleaning oven uses optional steam cleaning for light soils to clean the oven cavity with less heat and odor.
ADA COMPLIANT
Designed to be accessible and easy to open
Additional Features

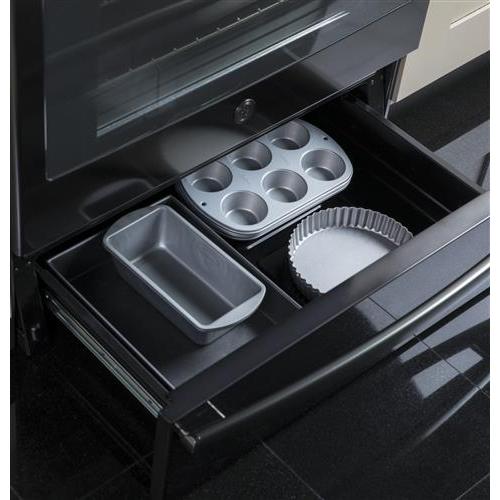

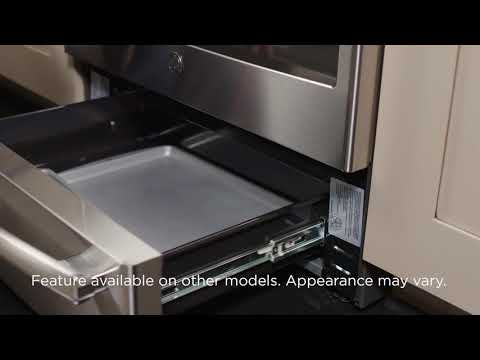

SMOOTH-GLIDE STORAGE DRAWER
Drawer opens and closes easily for instant access and extra storage

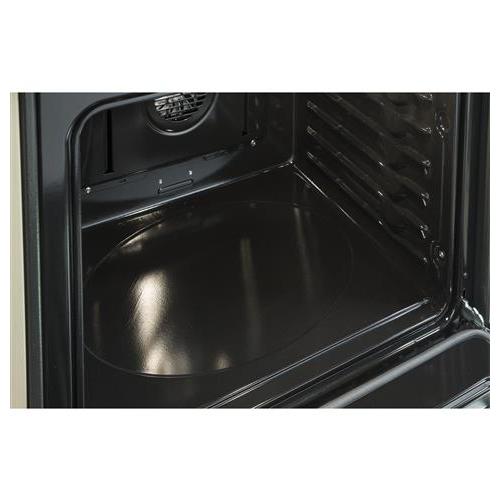

HIDDEN BAKE OVEN INTERIOR
Make cleanup easy by eliminating hard-to-reach areas
Specifications
General
Fuel Type
Electric
Installation Type
Slide-in
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
• Self-Clean with Steam Clean Option
• Self-Clean Cool Down Time Display
• Self-Cleaning Cycling Light
• Auto Self Clean
• Delay Clean Option
• Self-Clean Cool Down Time Display
• Self-Cleaning Cycling Light
• Auto Self Clean
• Delay Clean Option
Cooktop
Burners/Elements
5
Burners/Elements Output
• Right Rear Element: 1200W
• Right Front Element: 3000W
• Left Front Element: 3100W Power Boil
• Left Rear Element: 1200W
• Center Element: 100W Warming Zone
• Right Front Element: 3000W
• Left Front Element: 3100W Power Boil
• Left Rear Element: 1200W
• Center Element: 100W Warming Zone
Burner/Element Size
• Right Rear Element: 6"
• Right Front Element: 12"/9"
• Left Front Element: 9"/6"
• Left Rear Element: 6"
• Center Element: 6"
• Right Front Element: 12"/9"
• Left Front Element: 9"/6"
• Left Rear Element: 6"
• Center Element: 6"
Elements
Smoothtop
Oven
Capacity (cu. ft.)
5.3 cu.ft.
Number of Ovens
Single
Programs
• Bake: 2850W
• Broiler: 4000W
• Convection: 2500W
• Broiler: 4000W
• Convection: 2500W
Features
Technologies
True European Convection with Precise Air
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Audible Preheat Signal
• Auto Oven Shut-Off with Override
• Auto Recipe Conversion
• Convection Bake
• Delay Bake Option (Time Bake)
• Electronic Clock and Kitchen Timer
• Fast Preheat
• Hi / Low Broil
• Oven "ON" Light
• Digital Temperature Display
• 1 Halogen Light
• Preheat Notification
• Melt Setting
• 3 Oven Racks
• 6 Rack Positions
• 4-Pass Bake Element
• 8-Pass Broil Element
• Auto Oven Shut-Off with Override
• Auto Recipe Conversion
• Convection Bake
• Delay Bake Option (Time Bake)
• Electronic Clock and Kitchen Timer
• Fast Preheat
• Hi / Low Broil
• Oven "ON" Light
• Digital Temperature Display
• 1 Halogen Light
• Preheat Notification
• Melt Setting
• 3 Oven Racks
• 6 Rack Positions
• 4-Pass Bake Element
• 8-Pass Broil Element
Drawer Features
Storage
Yes
Electrical Information
Information
• 240 V / 208 V
• 60 Hz
• 40 A
• 60 Hz
• 40 A
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Accessories
Included
Cream
Optional
Trim Kit JXFILLR1DD
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
37.25 inch(es) / 94.62 cm
Depth (Without Handles)
27.37 inch(es) / 69.53 cm
Depth (Including Handles)
28.25 inch(es) / 71.76 cm
Weight
178.99 lb(s) / 81.19 kg
Additional Dimensions
Oven Interior (W x H x D): 24-1/8" x 19-1/2" x 19-3/8"
Shipping Dimensions
Width
32 inch(es) / 81.28 cm
Height
44.8 inch(es) / 113.79 cm
Depth
30.9 inch(es) / 78.49 cm
Weight
200 lb(s) / 90.72 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
084691822318
