Features
HOT SURFACE INDICATOR LIGHTS
Heating Elements have a "hot surface" indicator light to let you know when the element is too hot to touch (it continues to work if the element has been turned off.)
TRUE EUROPEAN CONVECTION
The European or "true" convection system that has a dedicated third dual loop heating element surrounding the convection fan, which provides even heating, even browning and superior baking.
SELF-CLEAN OVEN
A GE invention, the Self-Clean feature uses concentrated heat to remove baked-on splatters, eliminating the need for scrubbing or use of harsh chemicals.
DUAL-ELEMENT BAKE
Upper and lower elements produce even heat and great results.
Additional Features
ONE-PIECE UPSWEPT COOKTOP
The CleanDesign™ upswept cooktop eliminates crevices so dirt has nowhere to hide. Cleaning is fast and easy.
Specifications
General
Fuel Type
Electric
Installation Type
Freestanding
Color
Stainless Steel

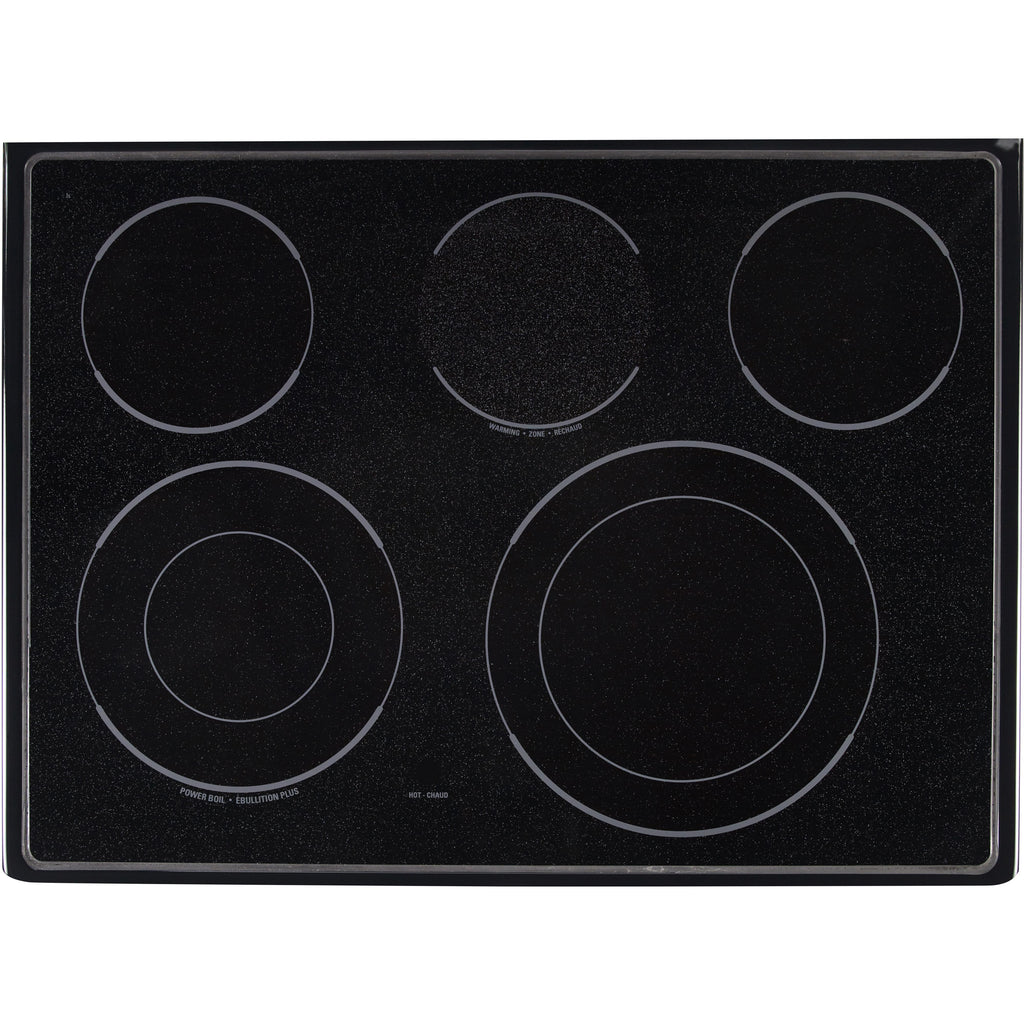

Cooktop
Burners/Elements
5
Burners/Elements Output
• Center: 120W
• Left Front: 3000W
• Left Rear: 1500W
• Right Front: 3000W
• Right Rear: 1500W
• Convection: 1200W
• Broil Element: 3800W
• Bake Element: 2850W
• Left Front: 3000W
• Left Rear: 1500W
• Right Front: 3000W
• Right Rear: 1500W
• Convection: 1200W
• Broil Element: 3800W
• Bake Element: 2850W
Burner/Element Size
• Center: 6"
• Left Front: 6"/9"
• Left Rear: 6"
• Right Front: 12"/9"
• Right Rear: 6"
• Left Front: 6"/9"
• Left Rear: 6"
• Right Front: 12"/9"
• Right Rear: 6"
Elements
Smoothtop
Oven
Capacity (cu. ft.)
5.0 cu. ft.
Number of Ovens
Single
Features
Technologies
True European Convection System
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Audible pre-heat signal
• High/Low Broil
• Digipad
• Convection Roast
• Warming zone
• High/Low Broil
• Digipad
• Convection Roast
• Warming zone
Drawer Features
Storage
Yes
Electrical Information
Information
• 240/208V
• 40 A
• 40 A
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
46.13 inch(es) / 117.16 cm
Depth (Without Handles)
26.25 inch(es) / 66.68 cm
Additional Dimensions
• Depth with Door open (in.): 47.125
• Overall depth including handle (in.): 29.4375
• Overall depth including handle (in.): 29.4375
Shipping Dimensions
Weight
175 lb(s) / 79.38 kg
Warranty
Warranty
• 1 year on entire appliance
• in home
• parts and labour
• in home
• parts and labour
UPC
UPC#
067732152261
