Features
ANODE ROD
Durable design extends the life of your water heater with long-lasting protection against corrosion.

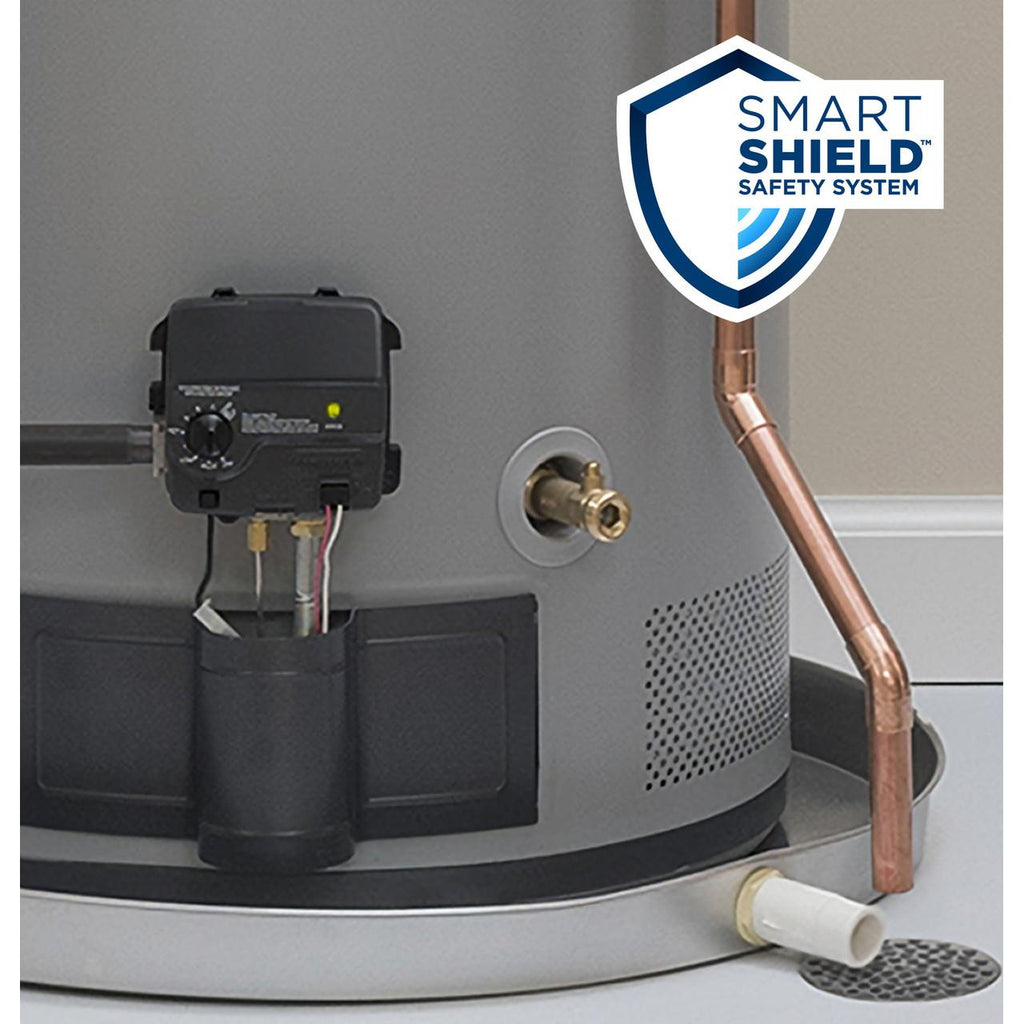

SMARTSHIELD ™ SAFETY SYSTEM
Monitors the surrounding air and automatically shuts off the unit if abnormal temperatures are detected.
SELF-DIAGNOSTIC
Monitors and reports on gas system status via LED status indicator.
DRAIN VALVE
Rust-proof construction can be counted on to provide long-lasting service.
EASY INSTALLATION
Replace your old water heater quickly and easily using standard water and gas connections.
BUILT-TO-LAST WARRANTY

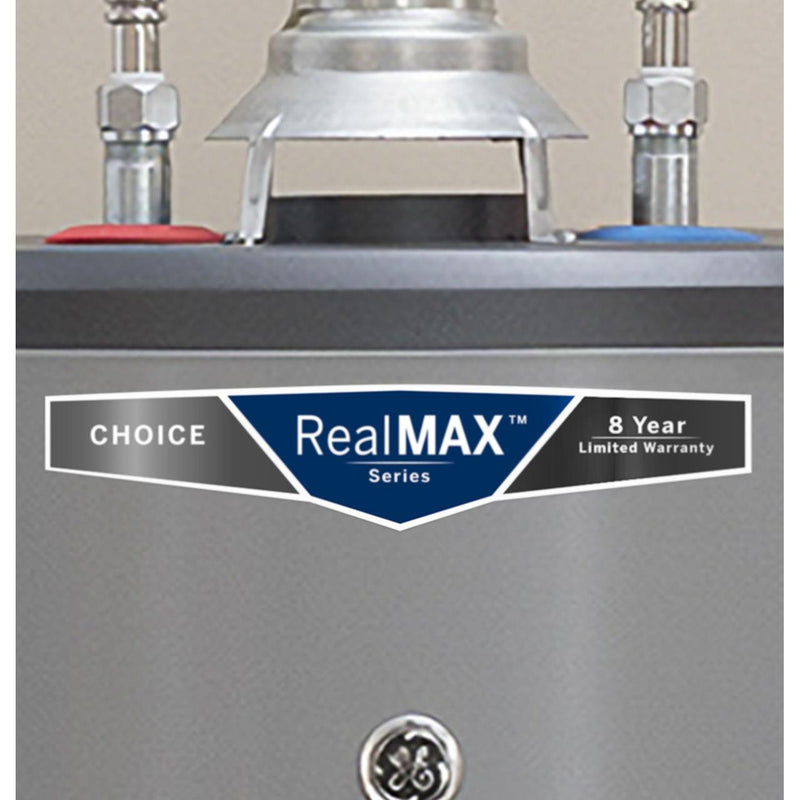

RealMAX™ Choice water heaters carry an 8-year tank and parts limited warranty.
Specifications
General
Type
Tall
Model Type
Residential
Venting Type
Direct Vent
Fuel Type
Liquid Propane
Installation
Floorstanding
Color
Grey
Unit Capacity
30 Imperial Gallons
Recovery
52 GPH
Connection Size
0.75 in
Certifications and Approvals
Certifications
• Certified to NSF/ANSI 372
• Listed by Underwriters Laboratories
• Listed by Underwriters Laboratories
Features
Protection
• FVIR Safety System: Prevents accidental ignition of flammable vapors
• Overheat Protection: Dry Burning Protection
• Overheat Protection: Dry Burning Protection
Controls
Controls: LED Indicator
Additional Information
• Made in America: 70 to 90% U.S. Content
• Temperature Setting: 45-160° F Range
• Vent: Atmospheric
• Altitude Rating: 10100.0 ft
• Drain Valve Type: Plastic
• Anode Rod: Magnesium
• Bin Testing: Medium
• Burner BTU Size (k): 28
• Family Size: 1-3 People
• Gas Valve: Self Powered
• Pilot Light Wndow / Button
• Temp & Pressure Relief Valve
• UEF: .6
• Water Connection Location: Top
• Vent Size: 3" Type B Vent
• Temperature Setting: 45-160° F Range
• Vent: Atmospheric
• Altitude Rating: 10100.0 ft
• Drain Valve Type: Plastic
• Anode Rod: Magnesium
• Bin Testing: Medium
• Burner BTU Size (k): 28
• Family Size: 1-3 People
• Gas Valve: Self Powered
• Pilot Light Wndow / Button
• Temp & Pressure Relief Valve
• UEF: .6
• Water Connection Location: Top
• Vent Size: 3" Type B Vent
Dimensions
Width
18 inch(es) / 45.72 cm
Height
61.25 inch(es) / 155.58 cm
Depth
18 inch(es) / 45.72 cm
Weight
111.99 lb(s) / 50.80 kg
Shipping Dimensions
Width
19 inch(es) / 48.26 cm
Height
62 inch(es) / 157.48 cm
Depth
21.4 inch(es) / 54.36 cm
Weight
119.01 lb(s) / 53.98 kg
Warranty
Warranty
• Parts Warranty: 8-year limited
• Labor Warranty: 1-year limited
• Labor Warranty: 1-year limited
UPC
UPC#
084691878674
