Features
BUILT-IN WiFi
Easily adjust temperatures, set vacation mode schedules and receive notifications with Built-in WiFi powered by SmartHQ

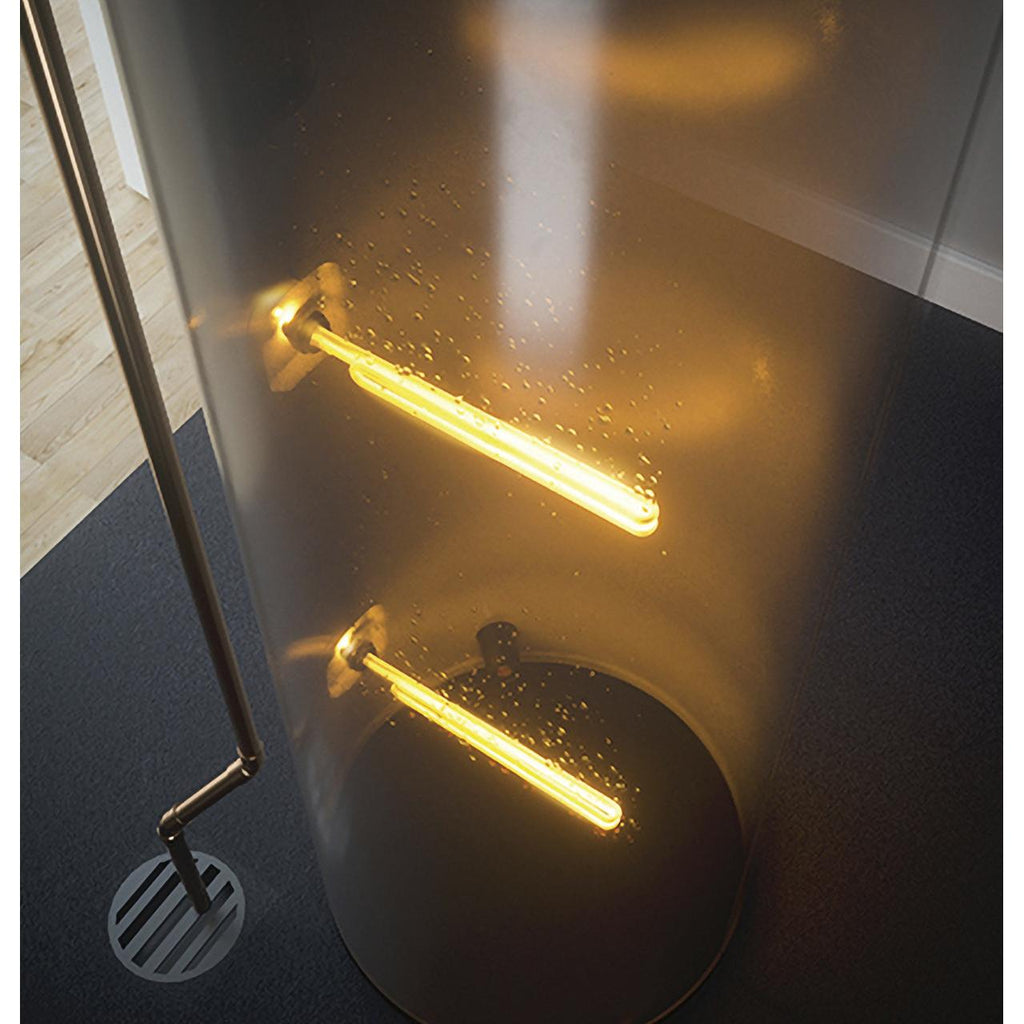

QUICK RECOVERY
Two 5500W heating elements quickly increase water temperature for hot water when you need it.
ANODE SENSING
Notifies you when your anode rod needs replacing to help extend the life of your tank
STAINLESS STEEL HEATING ELEMENTS
Ultra-durable stainless-steel heating elements resist rust and corrosion
INLET TUBE
Replenishes water from the bottom of the tank to maximize hot water delivery.
BRASS DRAIN VALVE
Rust-proof construction can be counted on to provide long-lasting service.

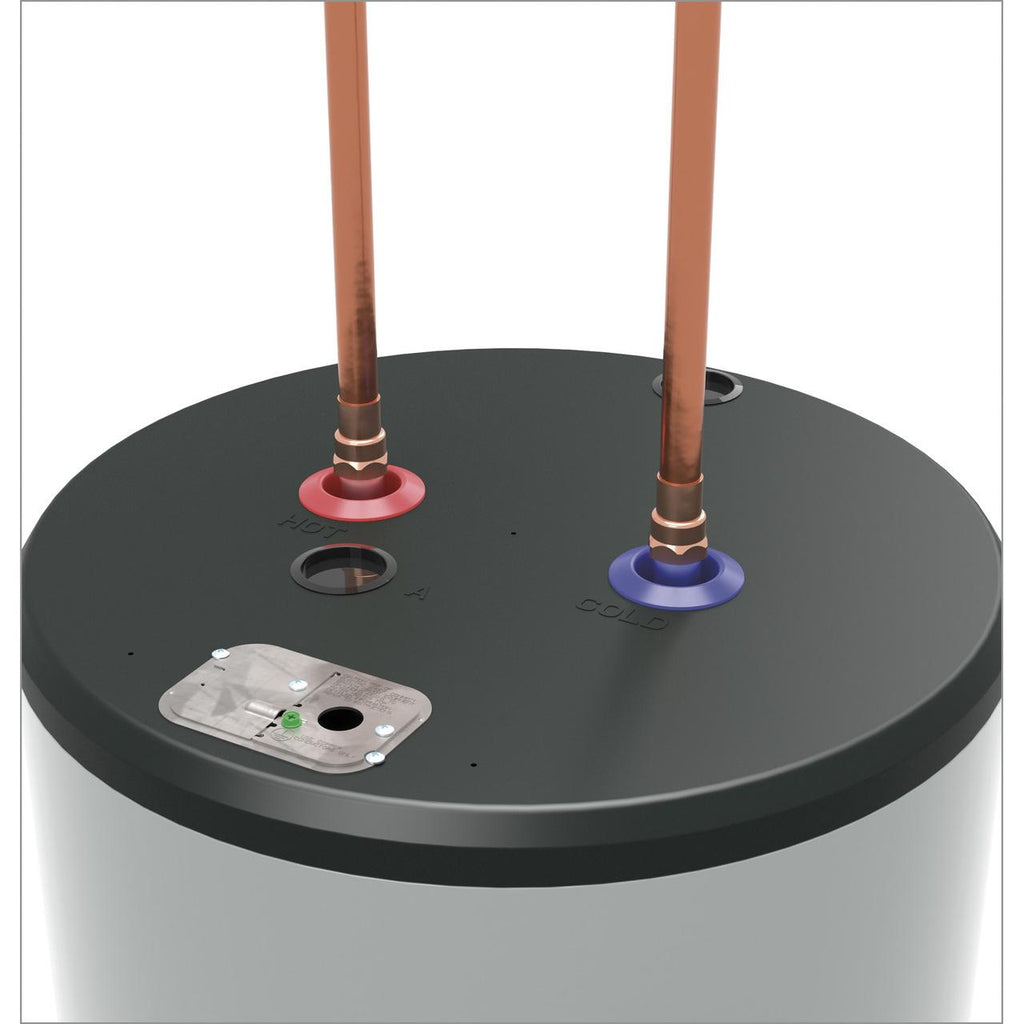

EASY SET UP
Replace your old water heater quickly and easily using standard water and electrical connections.
DIGITAL DISPLAY
Make easy, accurate adjustments at the touch of a button.
Specifications
General
Type
Short
Model Type
Residential
Fuel Type
Electric
Installation
Floorstanding
Color
Grey
Unit Capacity
30 Imperial Gallons
Energy Factor
0.92
Connection Size
0.75 in
Certifications and Approvals
Certifications
• Certified to NSF/ANSI 372
• Listed by Underwriters Laboratories
• Listed by Underwriters Laboratories
Features
Protection
Overheat Protection
Controls
• Control Type: Electronic with Digital Display
• Operating Modes: Normal, Vacation
• Operating Modes: Normal, Vacation
Additional Information
• Temperature Setting: 100-140° F Range
• Temperature Setting Factory Default: 120° F
• Drain Valve Type: Brass
• WiFi Connect: Built-In
• Diagnostic Feedback
• Family Size: 1-3 People
• Sensing Anode: Yes
• Water Connection Location: Top
• Electrical Circuit Required: Dedicated 30 Amp Min.
• Electrical Connection: Direct-Wire
• First Hour Rate (FHR): 60 Gallons
• Heating - Electric - Heater Watts: 5500/5500
• Operating Water Pressure: 20-125 PSI
• Voltage (MAX): 240.0 V
• Volts/Hertz: 240V; 60Hz
• Product Height (to top of water inlet/outlet connections): 42.0 in
• Temperature Setting Factory Default: 120° F
• Drain Valve Type: Brass
• WiFi Connect: Built-In
• Diagnostic Feedback
• Family Size: 1-3 People
• Sensing Anode: Yes
• Water Connection Location: Top
• Electrical Circuit Required: Dedicated 30 Amp Min.
• Electrical Connection: Direct-Wire
• First Hour Rate (FHR): 60 Gallons
• Heating - Electric - Heater Watts: 5500/5500
• Operating Water Pressure: 20-125 PSI
• Voltage (MAX): 240.0 V
• Volts/Hertz: 240V; 60Hz
• Product Height (to top of water inlet/outlet connections): 42.0 in
Dimensions
Width
22 inch(es) / 55.88 cm
Height
41.87 inch(es) / 106.36 cm
Depth
22 inch(es) / 55.88 cm
Weight
100.99 lb(s) / 45.81 kg
Shipping Dimensions
Width
23.1 inch(es) / 58.67 cm
Height
43.5 inch(es) / 110.49 cm
Depth
24.3 inch(es) / 61.72 cm
Weight
111 lb(s) / 50.35 kg
Warranty
Warranty
• Parts Warranty: 12-year limited
• Labor Warranty: 1-year limited
• Labor Warranty: 1-year limited
UPC
UPC#
084691846604
