Features
QUICK RECOVERY
Two 5500W heating elements quickly increase water temperature for hot water when you need it.

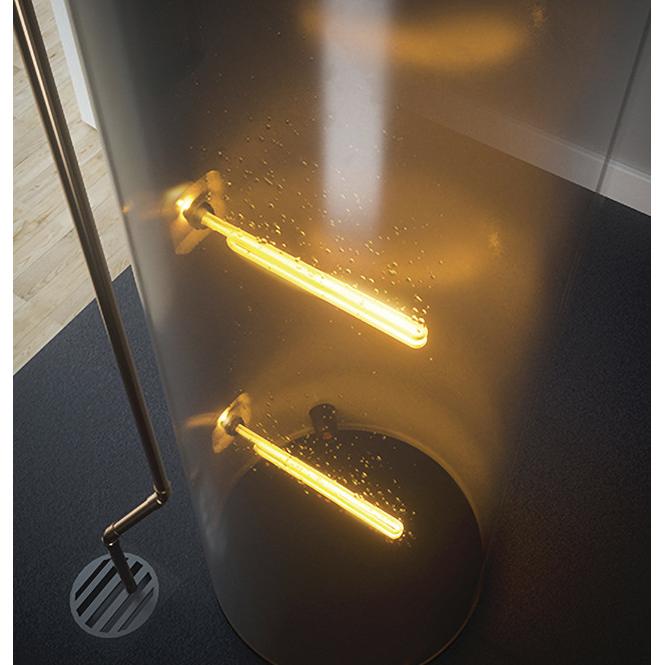

STAINLESS STEEL HEATING ELEMENTS
Ultra-durable stainless-steel heating elements resist rust and corrosion
INLET TUBE
Replenishes water from the bottom of the tank to maximize hot water delivery.
BRASS DRAIN VALVE
Rust-proof construction can be counted on to provide long-lasting service.
EASY SET UP
Replace your old water heater quickly and easily using standard water and electrical connections.

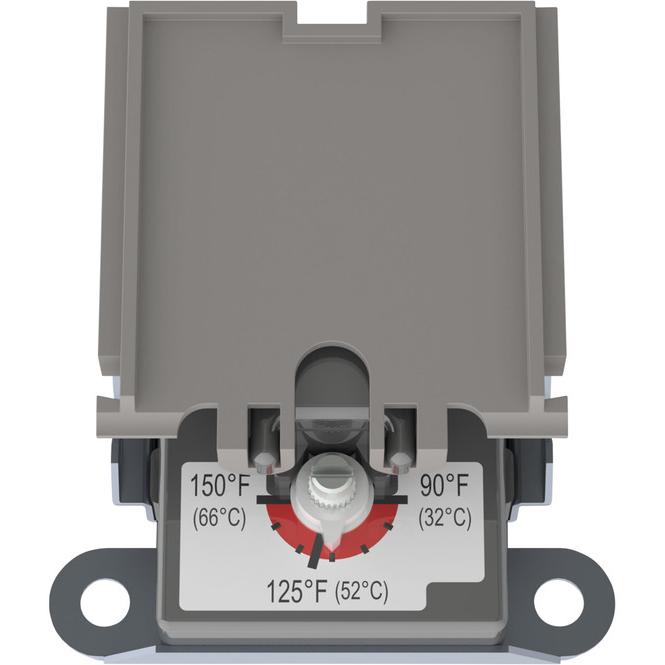

ADJUSTABLE THERMOSTAT
Easily change temperatures to your desired settings.
Specifications
General
Type
Short
Model Type
Residential
Fuel Type
Electric
Installation
Floorstanding
Color
Grey
Unit Capacity
30 Imperial Gallons
Energy Factor
0.92
Recovery
25.1 GPH
Connection Size
0.75 in
Certifications and Approvals
Certifications
• Certified to NSF/ANSI 372
• Listed by Underwriters Laboratories
• Listed by Underwriters Laboratories
Features
Controls
Control Type: Thermostat
Additional Information
• Temperature Setting: 90-150° F Range
• Temperature Setting Factory Default: 120° F
• Heating Element: Stainless steel
• Drain Valve Type: Brass
• Configuration: Short
• Family Size: 1-3 People
• Foam Insulation
• Temp & Pressure Relief Valve
• Water Connection Location: Top
• Electrical Circuit Required: 208V/240V 60 Hz Dedicated 30 Amp Min.
• Electrical Connection: Direct-Wire
• First Hour Rate (FHR): 53 Gallons
• Heating - Electric - Heater Watts: 5500/5500
• Operating Water Pressure: 20-125 PSI
• Voltage (MAX): 240.0 V
• Volts/Hertz: 240V; 60Hz
• Temperature Setting Factory Default: 120° F
• Heating Element: Stainless steel
• Drain Valve Type: Brass
• Configuration: Short
• Family Size: 1-3 People
• Foam Insulation
• Temp & Pressure Relief Valve
• Water Connection Location: Top
• Electrical Circuit Required: 208V/240V 60 Hz Dedicated 30 Amp Min.
• Electrical Connection: Direct-Wire
• First Hour Rate (FHR): 53 Gallons
• Heating - Electric - Heater Watts: 5500/5500
• Operating Water Pressure: 20-125 PSI
• Voltage (MAX): 240.0 V
• Volts/Hertz: 240V; 60Hz
Dimensions
Width
22 inch(es) / 55.88 cm
Height
41.87 inch(es) / 106.36 cm
Depth
22 inch(es) / 55.88 cm
Weight
100.99 lb(s) / 45.81 kg
Shipping Dimensions
Width
23.1 inch(es) / 58.67 cm
Height
43.5 inch(es) / 110.49 cm
Depth
24.3 inch(es) / 61.72 cm
Weight
111 lb(s) / 50.35 kg
Warranty
Warranty
• Parts Warranty: 10-year limited
• Labor Warranty: 1-year limited
• Labor Warranty: 1-year limited
UPC
UPC#
084691846031
