Features

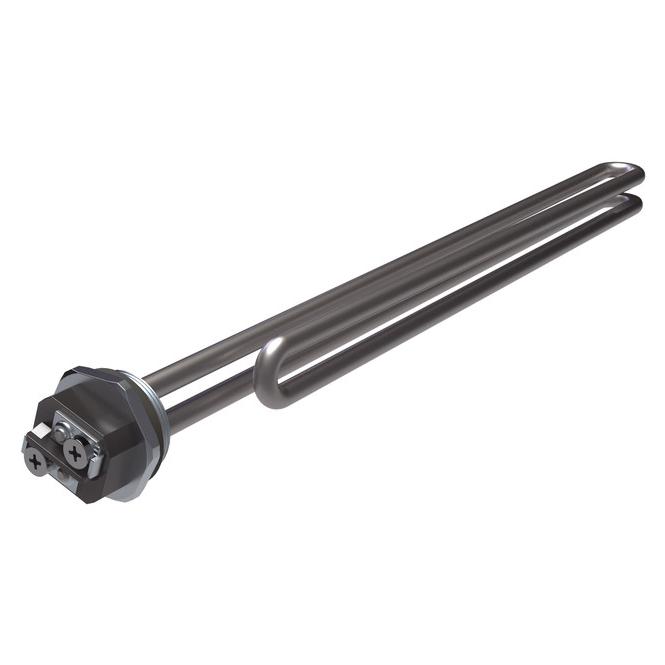

QUICK RECOVERY
Two 5500W heating elements quickly increase water temperature for hot water when you need it.

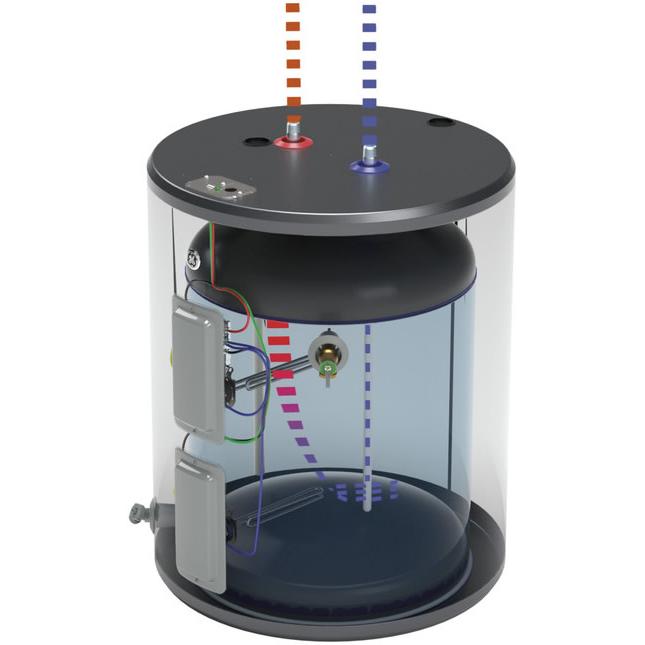

INLET TUBE
Replenishes water from the bottom of the tank to maximize hot water delivery.

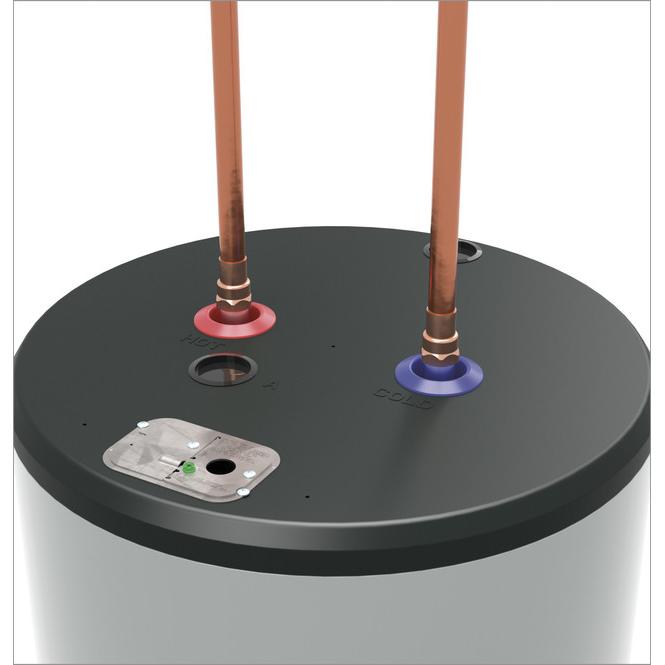

EASY SET UP
Replace your old water heater quickly and easily using standard water and electrical connections.

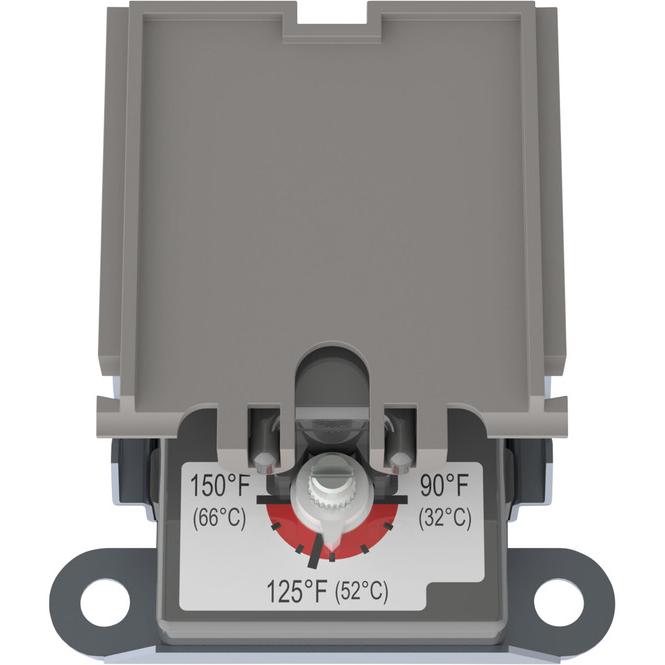

ADJUSTABLE THERMOSTAT
Easily change temperatures to your desired settings.
Additional Features

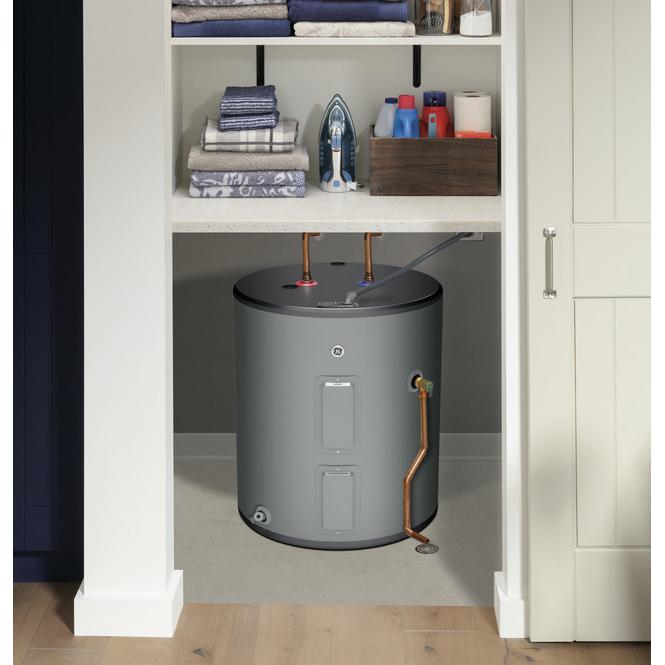

LOWBOY
Make the most of tight spaces with a water heater that fits where height is a concern
Specifications
General
Type
Short
Model Type
Residential
Fuel Type
Electric
Installation
Floorstanding
Color
Grey
Unit Capacity
26 Imperial Gallons
Energy Factor
0.93
Recovery
25.1 GPH
Connection Size
0.75 in
Certifications and Approvals
Certifications
• Certified to NSF/ANSI 372
• Listed by Underwriters Laboratories
• Listed by Underwriters Laboratories
Features
Controls
Control Type: Thermostat
Additional Information
• Height Description: Low Boy with Top Port
• Temperature Setting: 90-150° F Range
• Temperature Setting Factory Default: 120° F
• Drain Valve Type: Plastic
• Configuration: Lowboy
• Family Size: 1-3 People
• Foam Insulation
• Installation Location: Indoor
• Insulation Thickness: 2.75 in
• Temp & Pressure Relief Valve
• Water Connection Location: Top
• Electrical Circuit Required: 208V/240V 60 Hz Dedicated 30 Amp Min.
• Electrical Connection: Direct-Wire
• First Hour Rate (FHR): 53 Gallons
• Heating - Electric - Heater Watts: 5500/5500
• Operating Water Pressure: 20-125 PSI
• Voltage (MAX): 240.0 V
• Volts/Hertz: 240V; 60Hz
• Product Height (to top of water inlet/outlet connections): 32.875 in
• Temperature Setting: 90-150° F Range
• Temperature Setting Factory Default: 120° F
• Drain Valve Type: Plastic
• Configuration: Lowboy
• Family Size: 1-3 People
• Foam Insulation
• Installation Location: Indoor
• Insulation Thickness: 2.75 in
• Temp & Pressure Relief Valve
• Water Connection Location: Top
• Electrical Circuit Required: 208V/240V 60 Hz Dedicated 30 Amp Min.
• Electrical Connection: Direct-Wire
• First Hour Rate (FHR): 53 Gallons
• Heating - Electric - Heater Watts: 5500/5500
• Operating Water Pressure: 20-125 PSI
• Voltage (MAX): 240.0 V
• Volts/Hertz: 240V; 60Hz
• Product Height (to top of water inlet/outlet connections): 32.875 in
Dimensions
Width
24 inch(es) / 60.96 cm
Height
31.25 inch(es) / 79.38 cm
Depth
24 inch(es) / 60.96 cm
Weight
105.01 lb(s) / 47.63 kg
Shipping Dimensions
Width
25.1 inch(es) / 63.75 cm
Height
34.5 inch(es) / 87.63 cm
Depth
26.3 inch(es) / 66.80 cm
Weight
114 lb(s) / 51.71 kg
Warranty
Warranty
• Parts Warranty: 8-year limited
• Labor Warranty: 1-year limited
• Labor Warranty: 1-year limited
UPC
UPC#
084691846000
