Features
INLET TUBE
Replenishes water from the bottom of the tank to maximize hot water delivery.
EASY SET UP
Replace your old water heater quickly and easily using standard water and electrical connections.
ANODE ROD
Durable design extends the life of your water heater with long-lasting protection against corrosion.
DRAIN VALVE
Rust-proof construction can be counted on to provide long-lasting service.
ADJUSTABLE THERMOSTAT
Easily change temperatures to your desired settings.
QUICK RECOVERY
Two 5500W heating elements quickly increase water temperature for hot water when you need it.
Additional Features

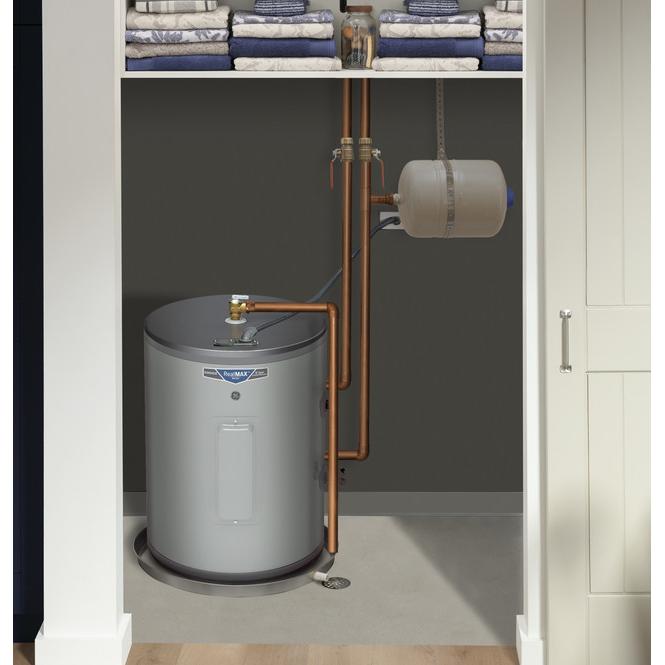

LOWBOY
Make the most of tight spaces with a water heater that fits where height is a concern
Specifications
General
Type
Short
Model Type
Residential
Fuel Type
Electric
Installation
Floorstanding
Color
Grey
Unit Capacity
18 Imperial Gallons
Recovery
25.1 GPH
Connection Size
0.75 in
Features
Controls
Control Type: Thermostat
Additional Information
• Height Description: Low Boy with Side Port
• Temperature Setting: 90-150° F Range
• Temperature Setting Factory Default: 120° F
• Heating Element: Stainless steel
• Drain Valve Type: Plastic
• Anode Rod: Aluminum
• Configuration: Lowboy
• Controls: Mechanical Temperature Control
• Family Size: 1-2 People
• Foam Insulation: Yes
• Temp & Pressure Relief Valve: Yes
• Water Connection Location: Side
• Max. operating pressure (psi): 150
• Electrical Circuit Required: 208V/240V 60 Hz Dedicated 30 Amp Min.
• Electrical Connection: Direct-Wire
• Heating - Electric - Heater Watts: 3800
• Operating Water Pressure: 20-125 PSI
• Voltage (MAX): 240.0 V
• Volts/Hertz: 240V; 60Hz
• Product Height (to top of unit): 25.75 in
• Product Height (to top of water inlet/outlet connections): 25.75 in
• Temperature Setting: 90-150° F Range
• Temperature Setting Factory Default: 120° F
• Heating Element: Stainless steel
• Drain Valve Type: Plastic
• Anode Rod: Aluminum
• Configuration: Lowboy
• Controls: Mechanical Temperature Control
• Family Size: 1-2 People
• Foam Insulation: Yes
• Temp & Pressure Relief Valve: Yes
• Water Connection Location: Side
• Max. operating pressure (psi): 150
• Electrical Circuit Required: 208V/240V 60 Hz Dedicated 30 Amp Min.
• Electrical Connection: Direct-Wire
• Heating - Electric - Heater Watts: 3800
• Operating Water Pressure: 20-125 PSI
• Voltage (MAX): 240.0 V
• Volts/Hertz: 240V; 60Hz
• Product Height (to top of unit): 25.75 in
• Product Height (to top of water inlet/outlet connections): 25.75 in
Dimensions
Width
19.25 inch(es) / 48.90 cm
Height
25.75 inch(es) / 65.40 cm
Depth
19.25 inch(es) / 48.90 cm
Weight
54.19 lb(s) / 24.58 kg
Shipping Dimensions
Width
22 inch(es) / 55.88 cm
Height
31 inch(es) / 78.74 cm
Depth
22 inch(es) / 55.88 cm
Weight
61.99 lb(s) / 28.12 kg
Warranty
Warranty
• Parts Warranty: 8-year limited
• Labor Warranty: 1-year limited
• Labor Warranty: 1-year limited
UPC
UPC#
084691895244
