Features
POINT OF USE

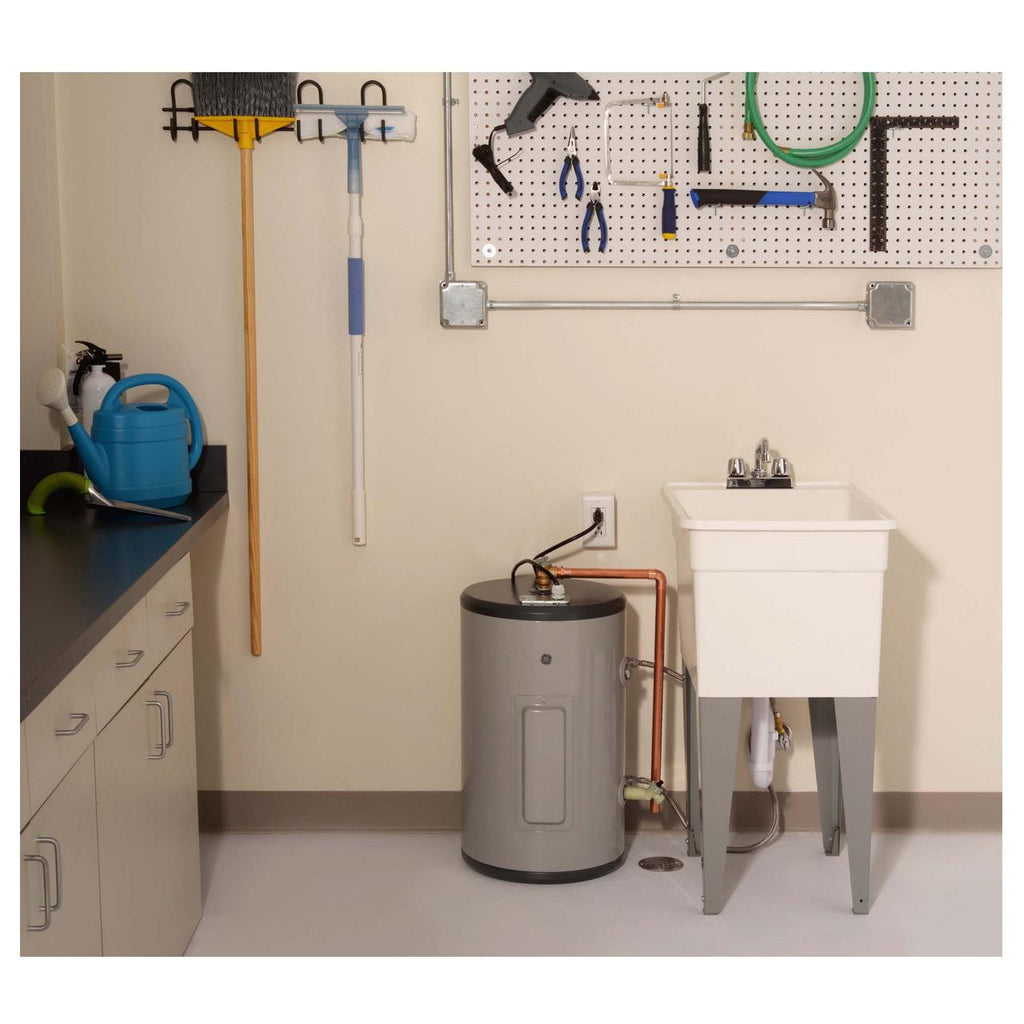

Installs on-location for hot water where you need it.
120 VOLT
Connects into any 120-Volt supply.
HOT WATER BOOSTER

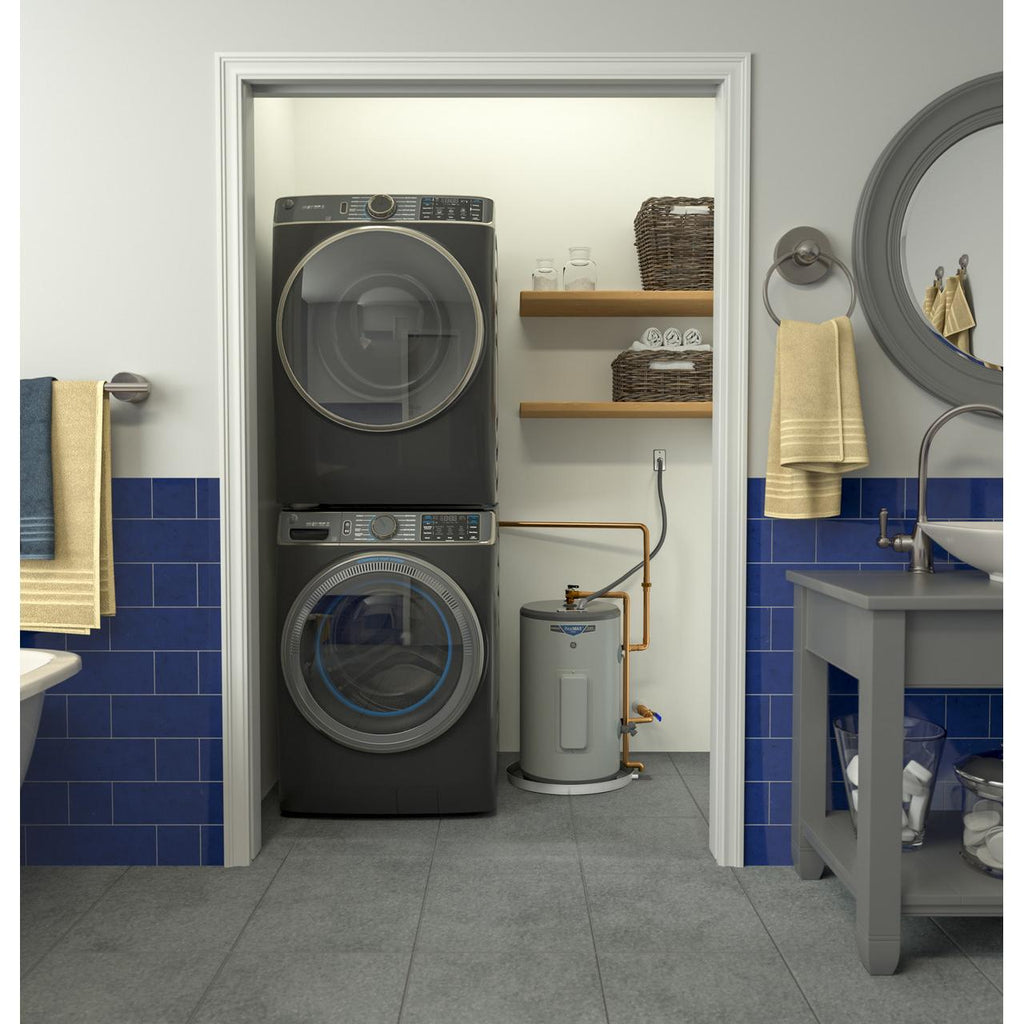

Works as a standalone unit, or inline with another water heater to boost long pipe runs or washing machines.
STAINLESS STEEL HEATING ELEMENTS
Ultra-durable stainless-steel heating elements resist rust and corrosion
ANODE ROD
Durable design extends the life of your water heater with long-lasting protection against corrosion.
DRAIN VALVE
Rust-proof construction can be counted on to provide long-lasting service.
ADJUSTABLE THERMOSTAT
Easily change temperatures to your desired settings.
Additional Features
COMPACT DESIGN
Ideal in limited spaces like kitchens, bathrooms, laundry rooms, cabins, RVs, garages, sheds, etc.
Specifications
General
Model Type
Residential
Fuel Type
Electric
Installation
Floorstanding
Color
Grey
Unit Capacity
10 US Gallons
Connection Size
0.5 in
Certifications and Approvals
Certifications
• NSF
• UL
• UL
Features
Controls
Mechanical Temperature Control
Additional Information
• Temperature Setting: 70-140° F Range
• Temperature Setting Factory Default: 120° F
• Heating Element: Stainless steel
• Drain Valve Type: Plastic
• Anode Rod: Aluminum
• Space Saver configuration
• Temp & Pressure Relief Valve: Top
• Water Connection Location: Side
• Max. operating pressure (psi): 150
• Amps: 12
• Power Rating-kW: 14.4
• Voltage (MAX): 120.0 V
• Temperature Setting Factory Default: 120° F
• Heating Element: Stainless steel
• Drain Valve Type: Plastic
• Anode Rod: Aluminum
• Space Saver configuration
• Temp & Pressure Relief Valve: Top
• Water Connection Location: Side
• Max. operating pressure (psi): 150
• Amps: 12
• Power Rating-kW: 14.4
• Voltage (MAX): 120.0 V
Accessories
Included
6' Power Cord
Dimensions
Width
14.8 inch(es) / 37.59 cm
Height
24.5 inch(es) / 62.23 cm
Depth
14.75 inch(es) / 37.46 cm
Weight
40.9 lb(s) / 18.55 kg
Shipping Dimensions
Width
19 inch(es) / 48.26 cm
Height
28 inch(es) / 71.12 cm
Depth
18 inch(es) / 45.72 cm
Weight
46.01 lb(s) / 20.87 kg
Warranty
Warranty
Parts Warranty: 8-year limited
UPC
UPC#
084691864028
